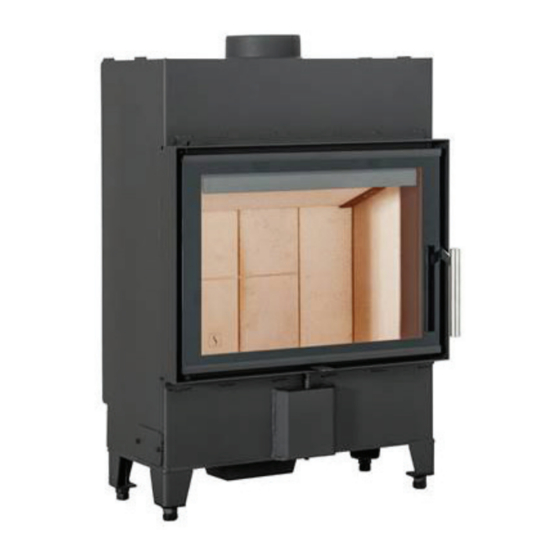

SCAN 5002 Series Assembly And Instruction Manual

Built-in
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UK – Scan 5002
CONGRATULATIONS ON YOUR
NEW SCAN BUILT-IN STOVE
We are very happy that you have chosen a Scan-product, and we are sure that you will have years of pleasure from your
purchase. To make the best possible use of your built-in stove, it is important that you follow our advice and instructions.
Read through this Assembly and Instruction Manual carefully before you start to assemble your stove.
ASSEMBLY AND INSTRUCTION MANUAL SCAN 5002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5002 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SCAN 5002 Series

Summary of Contents for SCAN 5002 Series

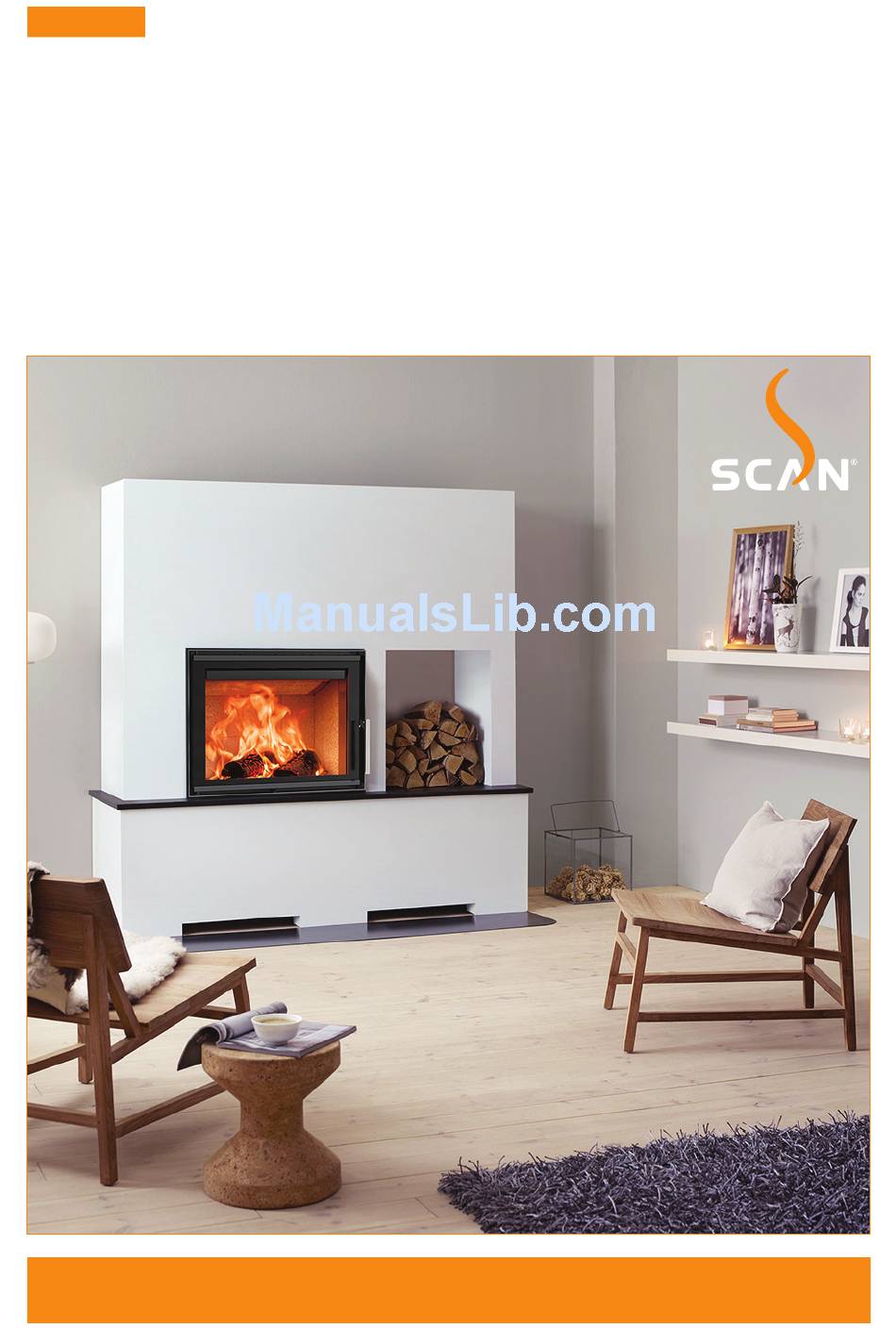

  • Page 1 NEW SCAN BUILT-IN STOVE We are very happy that you have chosen a Scan-product, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your built-in stove, it is important that you follow our advice and instructions.
  • Page 2 SCAN 5002-SERIES Scan 5002...

  • Page 3: Table Of Contents

    The clean air act 1993 and smoke control areas ..4 Dimensional drawing Scan 5002 ......6 Product registration number .

  • Page 4: Installation

    To ensure best-possible functionality and safety for your installation, we advise you to call a professional fitter. Your Scan Dealer will be able to recommend a qualified fitter in your area. For information on Scan Dealers, please go to www.scan.dk.

  • Page 5: Technical Data And Dimensions

    2,25 (Reference to EN 13229: 2001/A2:2004) TYPE PLATE All Scan built-in stoves are fitted with a type plate that specifies the approval standards and the distance to flammable materials. The type plate is located at the rear of the stove..

  • Page 6: Dimensional Drawing Scan 5002

    DIMENSIONAL DRAWING SCAN 5002 *Note: Refer to the manual for distance to combustible floor. Height to the beginning of flue connecting piece at top outlet Drawing Scan 5002 Målskitse 07-07-2017 95002001 Stove: Name: Date: Centre of fresh air intake - Inside measure: 103 mm, Outside measure: 120 mm...
  • Page 7 DIMENSIONAL DRAWING SCAN 5002, WITH HEAT SHIELD TO FIRE WALL (ACCESSORY) *Note: Refer to the manual for distance to combustible floor. Height to the beginning of flue connecting piece at top outlet Målskitse, varmeskjold til brandmur Scan 5002 95002004 NAVN: EMNE: TG.NR:...

  • Page 8: Assembly

    Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove. The floor plate’s function is to protect the floor and flammable material against any sparks that may occur.

  • Page 9: Existing Chimney And Pre-Fabricated Element Chimney

    EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chimney sweep, for advice. These experts will also let you know if your chimney needs renovating.

  • Page 10: Building Into Flammable Material With Fire Wall

    BUILDING INTO FLAMMABLE MATERIAL WITH FIRE WALL Building in the Scan 5002 with radiation shields against a flammable wall protected by a fire wall. 750 cm convection 750 cm² convection 25 mm 250 mm 400 mm Insulated length Half isolated start section 400 mm Alle mål er minimusmål.

  • Page 11: Clips For Norway (Large Rooms)

    MATERIALE: VÆGT: M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5001\95001016.idw STI: Place the heat shield at the top on a flat surface with the bottom upwards. Put the 2 units together Place the heat shield on top and attach them by bending of the built-in stove.
  • Page 12 21-06-2017 MATERIALE: VÆGT: DATO: SIGN: M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5002\95002010.idw STI: First mount the lateral heat shields on the stove and then the rear heat shield. Montage at varmeskjold Scan 5002 95002010 NAVN: EMNE: TG.NR:...
  • Page 13 B ( 1 : 4 ) Montage at varmeskjold Scan 5002 NAVN: EMNE: MATERIALE: VÆGT: M3 NR.: DIM.: AREAL: C:\Working Folder\Designs\Scan 5002\95002012.idw STI: Montage at varmeskjold 95002012 MNE: TG.NR: 22-06-2017 VÆGT: DATO: SIGN: AREAL: Scan A/S DK-5492 Vissenbjerg©...
  • Page 14 95002015 NAVN: EMNE: TG.NR: 22-06-2017 MATERIALE: VÆGT: DATO: SIGN: M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5002\95002015.idw STI: Montage at varmeskjold Scan 5002 95002015 NAVN: EMNE: TG.NR: Montage at varmeskjold Scan 5002 22-06-2017 95002016 DATO: SIGN: NAVN:...

  • Page 15: Baffle Plates

    When lighting the fire, the combustion air should be fully open. Closed Open A ( 1 : 1 Spjældregulering Scan 5002 95002005 NAVN: EMNE: TG.NR: 08-06-2017 MATERIALE: VÆGT: DATO: SIGN: M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5002\95002005.idw STI:...

  • Page 16: Environmentally Friendly Operation

    LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. Scan the QR-code See our video about correct firing on www.scan.dk or scan the QR-code.

  • Page 17: Refuelling

    REFUELLING It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane.

  • Page 18: Selecting Wood/Fuel

    HANDLING OF FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st.

  • Page 19: Sweeping The Chimney And Cleaning The Stove

    CHECKING THE BUILT-IN STOVE Scan A/S recommends that you check your stove thoroughly after sweeping/cleaning. Check all visible surfaces for cracks. Check that all joints are tight and that the gaskets are correctly seated. Worn or deformed gaskets should be replaced.

  • Page 20: Cleaning The Glass

    CLEANING THE GLASS Our stoves are designed to prevent serious soot build-up on the glass. The best way to achieve this is to make sure you have a good supply of combustion air. It is also very important that the wood is dry and the chimney correctly dimensioned.
  • Page 21 TROUBLESHOOTING SMOKE ESCAPING ....................................¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬...
  • Page 22 You must quote your stove‘s product registration number when you contact us or your authorised Scan dealer with a warranty claim. The warranty covers all parts which in the opinion of Scan A/S require repair or replacement due to manufacturing or construction error The warranty applies to the original purchaser of the product only, and is not transferable (except on prior sale).
  • Page 23 NOTES...
  • Page 24 Product registration number Quote this number at all enquiries Edition: UK 905002500 SCAN A/S Glasvænget 3-9 DK-5492 Vissenbjerg www.scan.dk 19.09.2017...
