Remove the JTAG Header end of the tail assembly from the target board by pulling
up on the entire assembly.

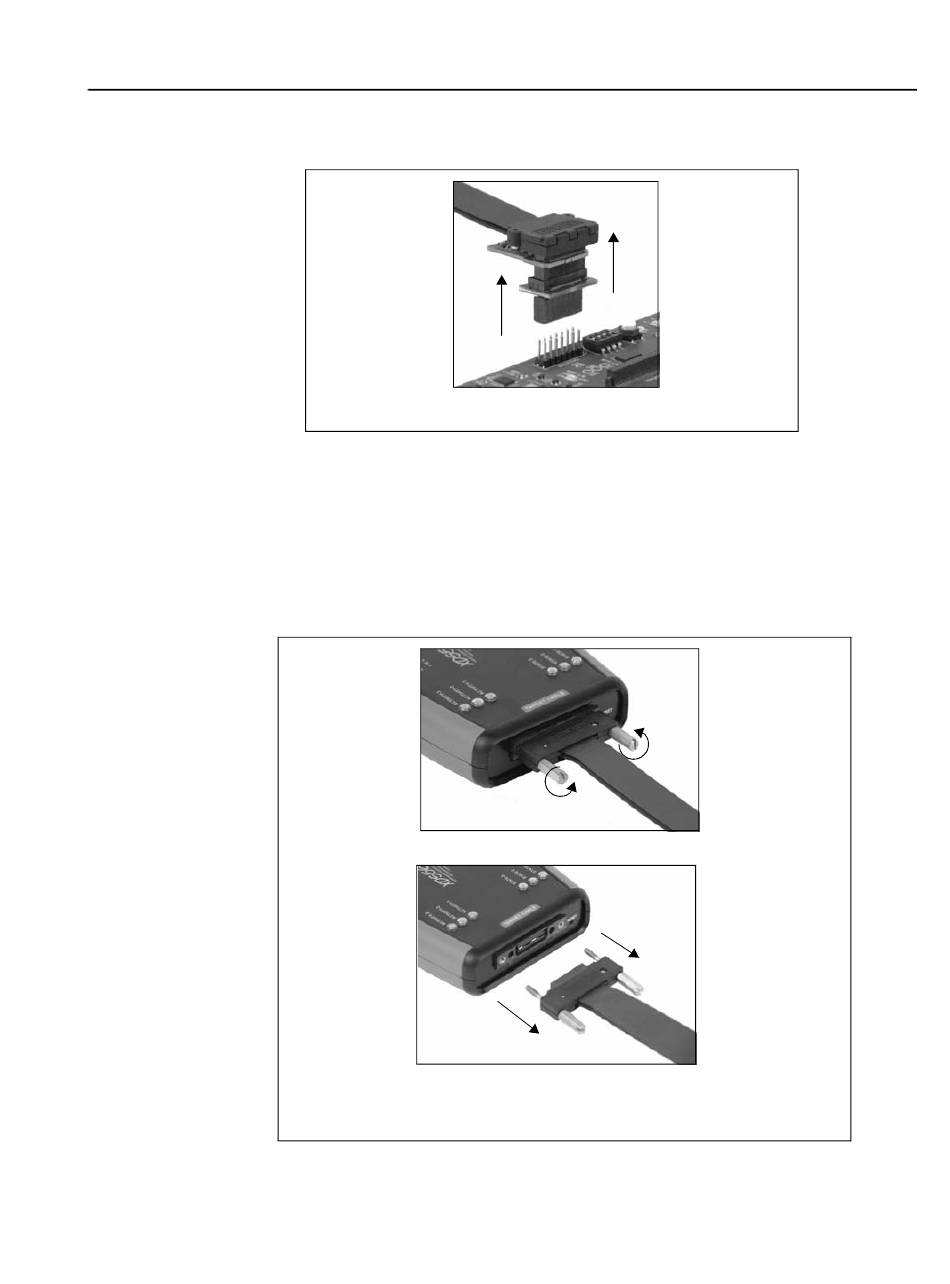

Figure 2-16, Removing the Header From Target Board
❏
Remove tail assembly from the XDS560v2 STM by unscrewing the 2 screws on each
side of the connector. These screws should be able to be loosened by turning the
screws counterclockwise. This can be done by hand but if necessary a flat blade
screwdriver may be used.
After both screws are free from the XDS560v2 STM enclosure grab the black
connector and gently pull it free from the enclosure.
Loosen Screws by Turning Counterclockwise
Figure 2-17, Removing the Tail Assembly From XDS560v2 STM
Gently Pull Free From Enclosure
Spectrum Digital, Inc
2-15
