Now connect the tail of the emulator to the JTAG header on your target board. If your
target board requires a different interface than the generic 60 pin header on the tail,
attach one of the header adapters as required.
Caution should be used in the routing of the tail ribbon cable to insure it does not go
near the processor(s), power traces, or power cords.
Align the emulator tail over the target connector, then push down

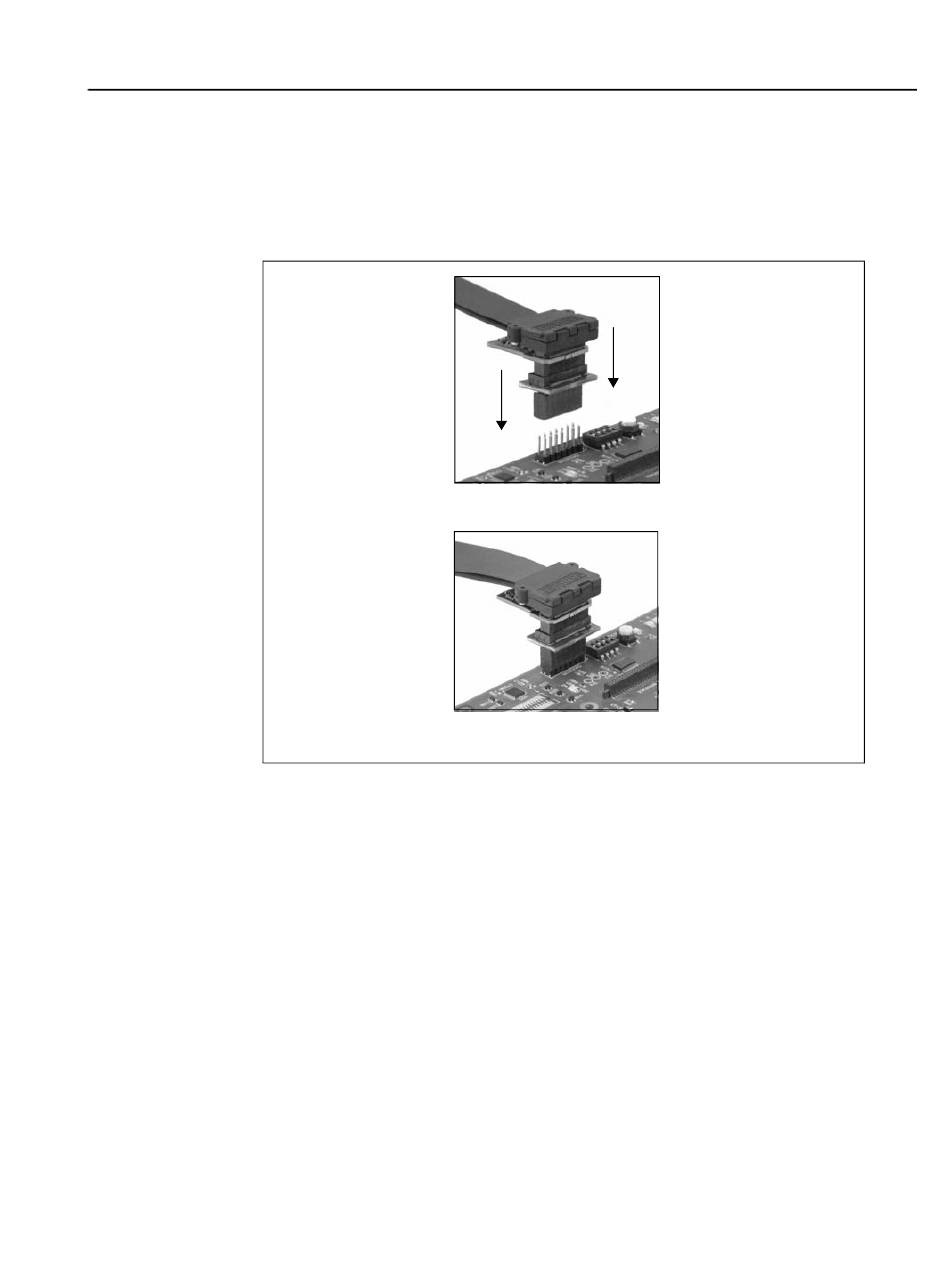

Figure 2-7, Attaching the XDS560v2 STM Emulator Tail To Target
❏
Apply power to the target board.
❏
Your system configuration should be similar to the one in Figures 2-8 through
Figure 2-11.
Emulator tail attached to target
