Spectrum Digital, Inc
❏
Apply power to the XDS560v2 STM by connecting the power supply to the +5V input
on the XDS560v2 STM located at the rear of the emulator.
When power is connected the "PWR" LED on the XDS560v2 STM should illuminate.
After about 45 seconds LEDs "State 2", "State 3" should come on. At this point the
XDS560v2 STM has booted its operating system and is ready for connecting via
USB or Ethernet.
If this is the first connection over the USB the Windows Hardware Wizard should find
the XDS560v2 STM and install its USB drivers.
The figure below shows the Ethernet or USB cable, and power cord plugged into the
XDS560v2 STM.
2-6

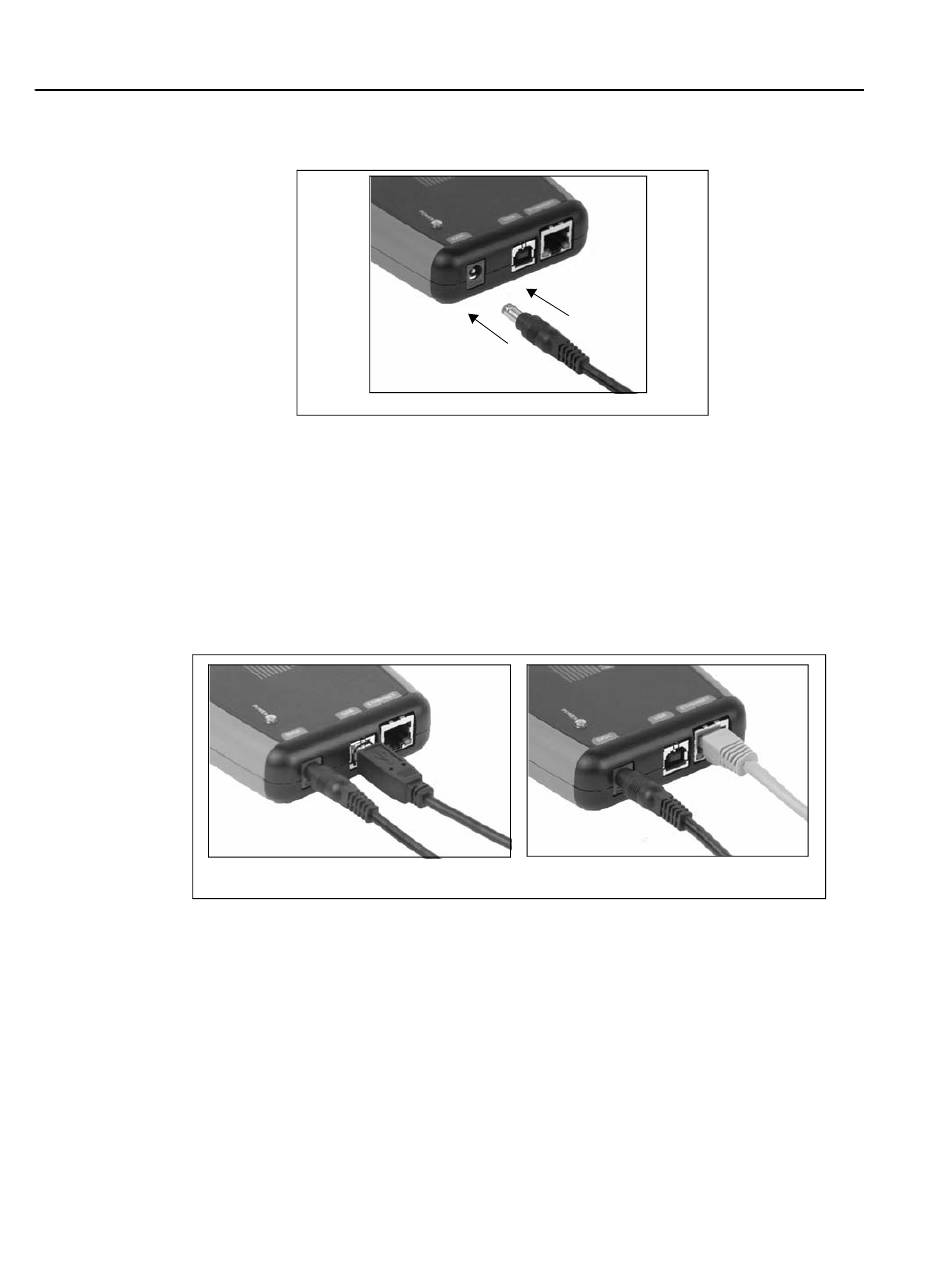

Figure 2-5, Applying Power to XDS560v2 STM
Figure 2-6, USB Cable and Power Cord Attached to XDS560v2 STM
XDS560v2 STM JTAG Emulator Technical Reference
