2.4 RESET Switch

If the emulator becomes non-responsive the unit can be reset by depressing the
RESET switch. The RESET switch is recessed and should be depressed with a
non-metallic tool. The position of the RESET switch is shown in the figure below.

2.5 Replacing the Emulator Tail Assembly

The XDS560v2 STM JTAG emulator has a modular tail assembly. This allows the tail
assembly and header to be replaced or upgraded if necessary. The next two sections
describe the steps necessary to replace the XDS560v2 STM tail assembly.

2.5.1 Removing The Emulator Tail Assembly

The checklist below provides instructions on how to remove the tail assembly and
header.
❏
Remove power from the target board.
❏
Unplug the power connector from the XDS560v2 STM.
❏
Unplug the XDS560v2 STM power supply from the wall.
2-14

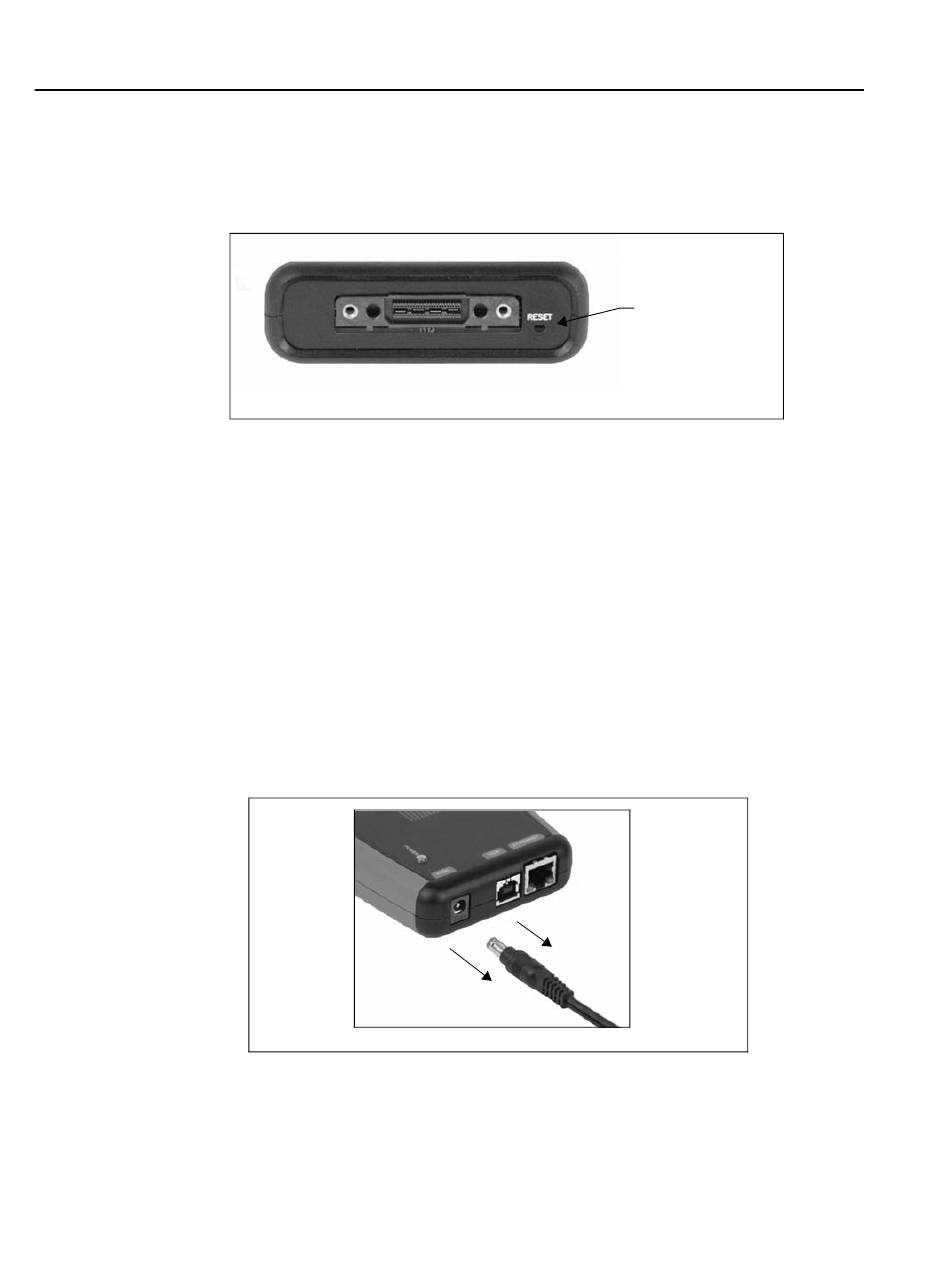

Figure 2-14, XDS560v2 STM RESET Switch
Figure 2-15, Removing Power from XDS560v2 STM
XDS560v2 STM JTAG Emulator Technical Reference
RESET Switch
