A S S E M B LY I N S T R U C T I O N S

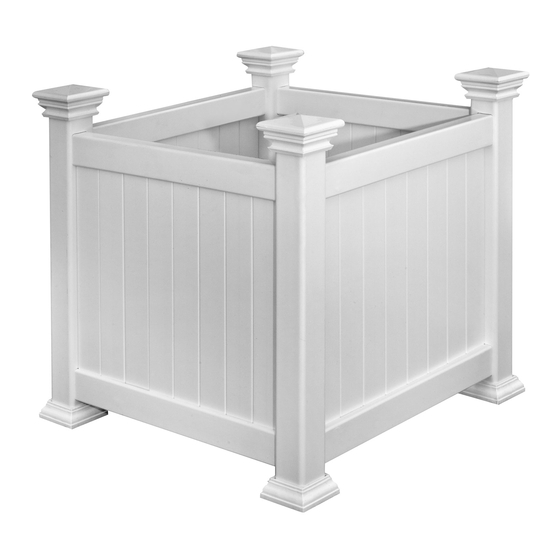

The Cardi Planter Box
Please read through before starting assembly.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 8~1:00 PM to 10:00 PM GMT).
1. Pre-Assembled Side Wall Panels (2) - 10812
2. Pre-Assembled Front & Back Wall Panels with Posts Connected (2) - 10811
3. Post Caps (4) - 10810
4. Floor Boards (3) - 10813
5. Base Trim (4) - 10730-1
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 4'x 8' (1.2 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
16 in
41 cm
3
1
2
4
5
16 in
41 cm
15.75 in
40 cm
www.newenglandarbors.com
www.newenglandarbors.co.uk
12 in
30.5 cm
15 in
38 cm
V1.3/072417
13.75 in
35 cm
1
Advertisement
Table of Contents
Related Manuals for New England Arbors Cardiff Planter Box
Summary of Contents for New England Arbors Cardiff Planter Box
- Page 1 A S S E M B LY I N S T R U C T I O N S The Cardi Planter Box www.newenglandarbors.com www.newenglandarbors.co.uk 16 in 41 cm 15.75 in 16 in 13.75 in 40 cm 41 cm 35 cm 12 in 30.5 cm 15 in...
- Page 2 S T E P O N E Connect the Front & Back Wall to the Side Wall Panels Lay out front wall panel on the work surface. Insert the side walls into the routed holes on the front wall panel posts until rails bottom out. Push until the locking tabs snap into place.
