A S S E M B LY I N S T R U C T I O N S
The Cambridge Raised Planter Box
Please read through before starting assembly.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST) .
(UK Tel: (44) 2038 687160 - Mon. to Fri. 1:00 PM to 10:00 PM GMT).

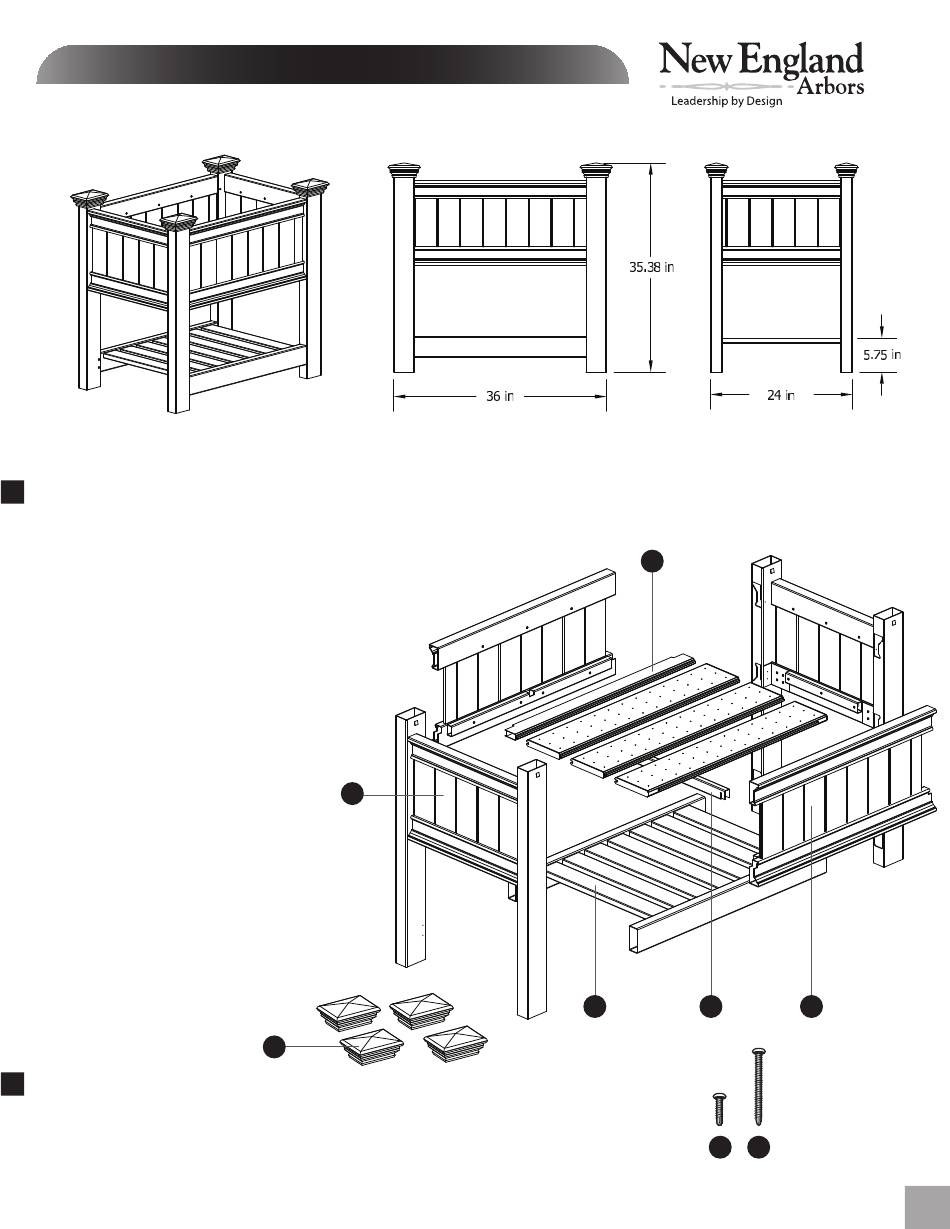

1. Pre-Assembled Side Wall Panels with Posts Connected (2) - 10873
2. Floor Panels (4) - 10871
3. Floor Support (1) - 10872
4. Front and Back Wall Panels (2) - 10870
5. Pre-assembled Shelf (1) - 10874
6. Post Caps (4) - 10611
7. 5/8" (1.6 cm) Stainless Steel Screws (12) - 20016
8. 1 1/2" (4 cm) Stainless Steel Screws (8) - 20005
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 4'x 8'(1.2 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
Planter Box Dimensions are 32"L x 20"W x 10"D (81 cm L x 51 cm W x 25 cm D)
1
6
91 cm
(± 3.7 cubic feet (0.1 cubic Meter) / 0.14 cubic yards / 105 litres)
5
www.newenglandarbors.com
www.newenglandarbors.co.uk
90 cm
61 cm
2
3
4
7
8
Not to Scale
Ver 3.6/072617
15 cm
1
Advertisement
Table of Contents
Related Manuals for New England Arbors Cambridge
Summary of Contents for New England Arbors Cambridge
- Page 1 A S S E M B LY I N S T R U C T I O N S The Cambridge Raised Planter Box www.newenglandarbors.com www.newenglandarbors.co.uk 90 cm 15 cm 61 cm 91 cm Planter Box Dimensions are 32”L x 20”W x 10”D (81 cm L x 51 cm W x 25 cm D) Please read through before starting assembly.
- Page 2 The Cambridge Raised Planter Box S T E P O N E Note Position of Bottom Rails Lay the Pre-Assembled Side Wall Panel on the floor as shown and align and insert the pre-assembled shelf into the routed hole. Do the same for the Front and Back Wall Panels as shown.
- Page 3 The Cambridge Raised Planter Box S T E P O N E ( C O N T ’ D ) Fasten the wall panels together using 4 of the 5/8” (1.6 cm) screws provided through the pre-drilled holes on the posts as shown.
- Page 4 The Cambridge Raised Planter Box Notch S T E P T W O ( C O N T ’ D ) Place the four floor panels onto the floor supports as shown. Note the notches on the one side of the end panels. The notches are to wrap around the posts.
