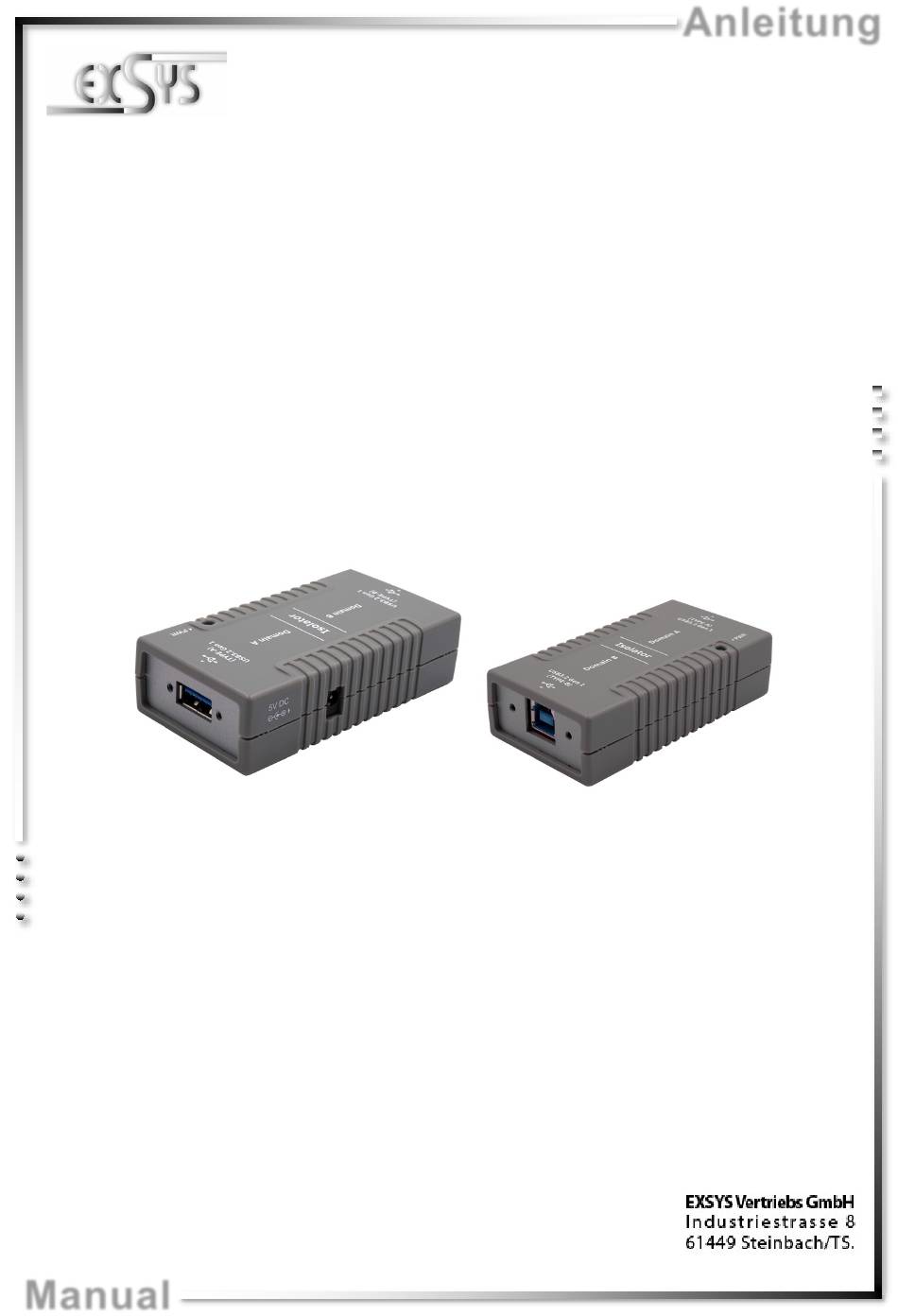

- Page 1 Anleitung EX-1452IS USB 3.2 Gen1 Isolation Adapter mit 3KV Optischer Isolation USB 3.2 Gen1 Isolation Adapter with 3KV Optical Isolation Vers. 1.0 / 07.08.20 Manual...
-
Page 2: Table Of Contents
3.2 Connections ························································································ 10-11 3.3 Limitation of Host Connection ······································································· 11 Hardware Installation ··········································································· 12 Driver Installation ················································································ 12 Cleaning ··························································································· 13 Technical Information ·········································································· 13 Technical Drawing ·············································································· 14 © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Anschluss ist er ebenfalls mit einer 3KV Optischen Isolation ausgestattet . Auf Host Seite, ist der EX-1452IS jedoch nur für den USB 3.2 (Gen1) Anschluss oder höher kompatibel! Er unterstützt somit keine USB 2.0 oder 1.1 Host‘s. Der EX-1452IS unterstützt den USB- Bus Power Modus und den Self Power Modus und somit ist es möglich den Adapter... -
Page 4: Aufbau, Anschlüsse & Beschränkung Des Anschlusses
5V Buchse: ACHTUNG!!! Nur zur Verwendung mit optional erhältlichem Netzteil! USB 3.2 (Gen1) A-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + Achtung! StdB_SSTX - StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Beschränkung Des Host Anschlusses
Gewalt einstecken. 3.2 Beschränkung des Host Anschlusses Aufgrund der Beschränkung des Isolators kann der EX-1452IS zwar USB 3.2, USB 2.0 & USB 1.1 Geräte an seinem Downstream-Anschluss unterstützen, aber an seinem Upstream-Anschluss nur USB 2.0 & USB 1.1 Host‘s. Die folgende Tabelle listet die... -
Page 6: Hardware Installation
Metallgehäuseschiene nach dem Ausschalten der Stromversorgung erfolgen. 2. Verbinden Sie nun den EX-1452IS mit dem im Lieferumfang enthaltenem USB Kabel und das andere Ende des Kabel‘s mit dem USB-Anschluss an Ihrem PC. 3. Schließen Sie nun Ihr USB Endgerät an den EX-1452IS an. -
Page 7: Reinigung
Alle Betriebssysteme Betriebstemperatur: 0° bis 60° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +5 Volt Isolation: Abmessung: 82,40 x 44,20 x 22,50 mm Gewicht: 400g © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Technische Zeichnung
Deutsch EX-1452IS 8. Technische Zeichnung © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description
3KV Optical Isolation. On the host side, how- ever, the EX-1452IS is only compatible with USB 3.2 (Gen1) or higher. It therefore does not support USB 2.0 or USB 1.1 host’s. The EX-1452IS supports USB Bus Power Mode and Self Power Mode, allowing the adapter to operate without a power supply, provided the devices have low power consumption. -
Page 10: Layout, Connections & Limitation Of Connection
ATTENTION!!! Use only with optional available Power Supply! USB 3.2 (Gen1) A-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force or in wrong direction. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Limitation Of Host Connection
VBus 3.2 Limitation of Host Connection Due to the limitations of the isolator, the EX-1452IS can support USB 3.2, USB 2.0 & USB 1.1 devices on the downstream port, but only USB 2.0 & USB 1.1 host‘s on the upstream port. The following table lists the combinations:... -
Page 12: Hardware Installation
This can be done, for example, by touching a bare metal housing rail after switching off the power supply. 2. Now connect the EX-1452IS with the included USB cable and the other end of the cable to the USB port on your PC. -
Page 13: Cleaning
All Operating Systems Operating Temperature: 32°F to 140°Fahrenheit Storage Temperature: -4°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +5 Volt Isolation: Size: 82,40 x 44,20 x 22,50 mm Weight: 400g © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Drawing
English EX-1452IS 8. Technical Drawing © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
