CONNECTOR & STATUS LEDs
Status LED's:
LED Name
Color
LED Function
Continuously on: The Connection on the Ethernet port
is built and Active
Link/Act
Green
Flash:
Transmit Data
Off:
Network connection is disconnected
Off:
10/100Mbps Mode
Speed
Yellow
Continuously on: Gigabit (1000Mbps) Mode
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1320-3. Please refer your computer's reference manual whenever in doubt.
1.
Connect the EX-1320-3 to the A-Port at your PC.
2.
Now you can connect a network cable at the EX-1320-3.
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ 8.x/ 10/ Server 20xx
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ethernet Adapter" the following new
entry:
If you see this or a similar information the device is installed correctly.
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
5
Germany:
Switzerland:
Italy:
EXSYS Vertriebs GmbH
EXSYS Vertriebs GmbH
EXSYS Italia Srl
Industriestrasse 8
Dübendorfstrasse 17
Via Belvedere, 45/B
61449 Steinbach
8602 Wangen
I-22100 Como
www.exsys.ch
www.exsys.it
www.exsys.de
6
Anleitung
Anleitung
Vers. 1.0, 21.02.25

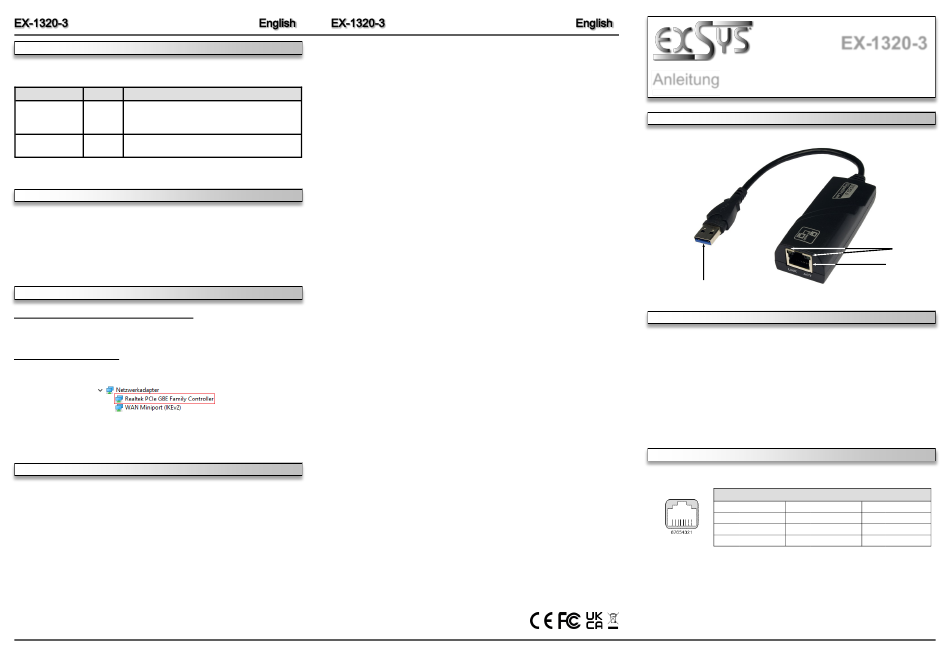

AUFBAU
USB 3.2 Gen 1 A-Stecker
zum Anschluss an PC
BESCHREIBUNG & TECHNISCHE DATEN
Mit dem EX-1320-3 können Notebooks und Desktop-PCs über den USB 3.2 Gen 1 (ehemals
USB 3.0) oder 2.0 Ausgang in ein 10/100 oder 1000Mbps Netzwerk eingebunden werden. Er
kann parallel zu einer vorhandenen Netzwerkkarte installiert werden. Die Installation ist sehr
einfach und kann ohne Öffnen des Rechners durchgeführt werden. Die Stromversorgung erfolgt
über den USB-Port (Bus Powered).
Kompatibilität:
USB 1.1, 2.0, 3.2 Gen 1 Anschluss / TCP/IP 10/100/1000
Betriebssysteme:
Windows XP/ Vista/ 7/ 8.x/ 10/ 11/ Server 20xx/ Linux/ Mac OS 10.x
Anschlüsse:
1x USB 3.2 Gen 1 A-Stecker, 1x RJ45 Gigabit Ethernet Anschluss
Lieferumfang:
EX-1320-3, Anleitung
ANSCHLUSS & STATUS LEDs
RJ45 Anschluss:
RJ45 Anschluss
Pin
Signal
Pin
Signal
1
BI_DA+
4
BI_DC+
2
BI_DA-
5
BI_DC-
3
BI_DB+
6
BI_DB-
1
EX-1320-3
Status LEDs
RJ45 Anschluss
Pin
Signal
7
BI_DD+
8
BI_DD-
