USB 3.2 Gen 1 Isolation Adapter 3KV
USB 3.2 Gen 1 Isolation Adapter 3KV
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Manual
EX-1452IS
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Anleitung
Vers. 1.1 / 20.08.24
Italia:
EXSYS Italia Srl
Via Belvedere, 45/B
I-22100 Como
www.exsys.it
Advertisement
Related Manuals for Exsys EX-1452IS
Summary of Contents for Exsys EX-1452IS

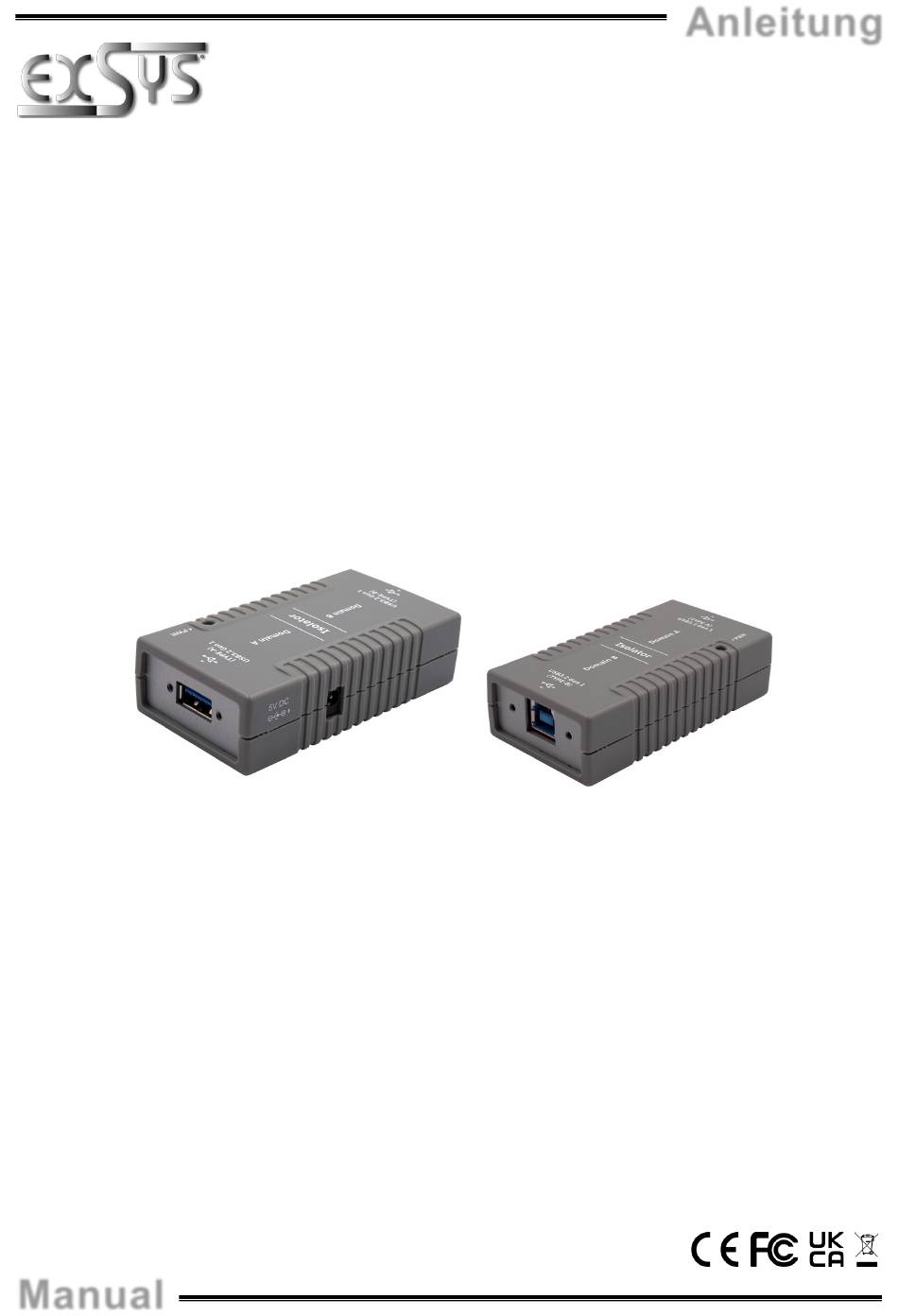

- Page 1 Vers. 1.1 / 20.08.24 EX-1452IS USB 3.2 Gen 1 Isolation Adapter 3KV USB 3.2 Gen 1 Isolation Adapter 3KV Deutschland: Schweiz: Italia: EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH EXSYS Italia Srl Industriestraße 8 Dübendorfstrasse 17 Via Belvedere, 45/B 61449 Steinbach...
-
Page 2: Table Of Contents
3.2 Connections ························································································ 10-11 3.3 Limitation of Host Connection ······································································ 11 Hardware Installation ··········································································· 12 Driver Installation ················································································ 12 Cleaning ··························································································· 13 Technical Information ·········································································· 13 Technical Drawing ·············································································· 14 © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
3.2 Gen 1 (früher USB 3.0), USB 2.0 und USB 1.1 Geräte. Er unterstützt jedoch nur USB 3.2 Gen 1 Hosts, USB 2.0- oder USB 1.1 Hosts werden nicht unterstützt. Der EX-1452IS bietet außerdem die einzigartige Möglichkeit, im Bus-Power-Modus ohne externes Netzteil zu arbeiten, was für USB-Geräte mit geringem Stromverbrauch praktisch ist. -
Page 4: Aufbau, Anschlüsse & Beschränkung Des Anschlusses
Netzteil 3.2 Anschlüsse 5V Buchse: ACHTUNG!!! Nur zur Verwendung mit optional erhältlichem Netzteil! USB 3.2 (Gen1) A-Buchse: GND_DRAI StdB_SSTX StdB_SSTX Achtung! StdB_SSTX StdB_SSTX Stecker niemals umgekehrt oder mit Gewalt einstecken. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Beschränkung Des Host Anschlusses
VBus 3.2 Beschränkung des Host Anschlusses Aufgrund der Beschränkung des Isolators kann der EX-1452IS zwar USB 3.2, USB 2.0 & USB 1.1 Geräte an seinem Downstream-Anschluss unterstützen, aber an seinem Upstream-Anschluss nur USB 3.0 / 3.1 / 3.2 Hosts. Die folgende Tabelle listet die... -
Page 6: Hardware Installation
Metallgehäuseschiene nach dem Ausschalten der Stromversorgung erfolgen. 2. Verbinden Sie nun den EX-1452IS mit dem im Lieferumfang enthaltenem USB Kabel und das andere Ende des Kabel‘s mit dem USB-Anschluss an Ihrem PC. 3. Schließen Sie nun Ihr USB Endgerät an den EX-1452IS an. -
Page 7: Reinigung
Alle Betriebssysteme Betriebstemperatur: 0° bis 60° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +5 Volt Isolation: Abmessung: 82.40 x 44.20 x 22.50 mm Gewicht: 400g © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Technische Zeichnung
Deutsch EX-1452IS 8. Technische Zeichnung © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description
USB 2.0 and USB 1.1 devices. However, it only supports USB 3.2 Gen 1 hosts, USB 2.0 or USB 1.1 hosts are not supported. The EX-1452IS also offers the unique ability to operate in bus-powered mode without an external power supply, which is useful for low- power USB devices. -
Page 10: Layout, Connections & Limitation Of Connection
3.2 Connections 5V Connector: ATTENTION!!! Use only with optional available Power Supply! USB 3.2 (Gen1) A-Port: GND_DRAI StdB_SSTX StdB_SSTX Attention! StdB_SSTX StdB_SSTX Never plug in with force or in wrong direction. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Limitation Of Host Connection
VBus 3.2 Limitation of Host Connection Due to the limitations of the isolator, the EX-1452IS can support USB 3.2, USB 2.0 & USB 1.1 devices on the downstream port, but only USB 3.0 / 3.1 / 3.2 hosts on the upstream port. -
Page 12: Hardware Installation
This can be done, for example, by touching a bare metal housing rail after switching off the power supply. 2. Now connect the EX-1452IS with the included USB cable and the other end of the cable to the USB port on your PC. -
Page 13: Cleaning
All Operating Systems Operating Temperature: 32°F to 140°Fahrenheit Storage Temperature: -4°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +5 Volt Isolation: Size: 82.40 x 44.20 x 22.50 mm Weight: 400g © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Drawing
English EX-1452IS 8. Technical Drawing © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
