Exsys EX-1331 User Manual

EX- EX EX - - 1331 / 1332 / 1334 / 1338 1331 / 1332 / 1334 / 1338 1331 / 1332 / 1334 / 1338
JUMPER SETTING & CONNECTORS:
DB62F:
Serial 62 Pin female connector :
Pin Signal Pin
1 TXD 1 22
2 DTR 1 23
3 RXD 2 24
4 DSR 2 25
5 DCD 2 26
6 TXD 3 27
7 DTR 3 28
8 RXD 4 29
9 DSR 4 30
10 DCD 4 31
11 RXD 5 32
12 DSR 5 33
13 DCD 5 34
14 TXD 6 35
15 DTR 6 36
16 RXD 7 37
17 DSR 7 38
18 DCD 7 39
19 RXD 8 40
20 DSR 8 41
21 DCD 8 42
HARDWARE INSTALLATION :
Because the designs of computers are different, only general installation instructions are
given. Please refer your computer's reference manual whenever in doubt.
1. Connect the USB cable to the USB B Connector of the module.
2. Plug the included power supply into the 5V Connector (optional).
3. Now connect the other end from the USB cable ( A-Plug) to the A-Connector at
your PC.
DRIVER INSTALLATION :
Windows 98/ME/XP/Server 2003&2008/Vista/7 (32&64-Bit):
Windows will recognize a new "USB Serial Device" and open the hardware assistant.
Please close the hardware assistant and open the following path on the driver CD:
"D:\USB_to_IO\USB_to_Serial\(32_64bit)Win7_XP_Vista_2008_2003_98_ME".Now
start the file „PL2303_Prolific_Driver Installer_V10626" and follow the instructions of
the setup program till the end. Now please restart your PC. After booting Windows will
recognize the device automatically and install it. Follow the hardware assistant and
finish the installation. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the window
that opens select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new „USB Serial Port„ as sample (COM5). If you see this or similar entries
the module is installed correctly.
INSTALL THE PERIPHERAL DEVICE:
The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud.
Double click >Device manager< select for example
There you can select the different settings of baud rate, stop/start-bits etc.
5
English English English EX EX EX- - - 1331 / 1332 / 1334 / 1338 1331 / 1332 / 1334 / 1338 1331 / 1332 / 1334 / 1338
DRIVER INSTALLATION :
CHANGE PORT NUMBER (NOT WIN98 & ME):
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can choose
Signal Pin Signal
between COM 3 up to 256.
RXD 1 43 CTS 1
Windows 2000:
DSR 1 44 RTS 1
Windows will recognize a new "USB Serial Device" and open the hardware assistant.
DCD 1 45 GND
Please close the hardware assistant and open the following path on the driver CD:
TXD 2 46 CTS 2
"D:\USB_to_IO\USB_to_Serial\Win2000".Now star the file "PL-2303 Driver Installer"
DTR 2 47 RTS 2
and follow the instructions of the setup program till the end. Now please restart your PC.
After booting Windows will recognize the device automatically and install it. Follow the
RXD 3 48 CTS 3
hardware assistant and finish the installation. Attention! Restart Windows in any case
DSR 3 49 RTS 3
after installing the drivers.
DCD 3 50 GND
CHECK THE INSTALLED DRIVER:
TXD 4 51 CTS 4
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the window
DTR 4 52 RTS 4
that opens select >Device Manager<. Under "Ports (COM and LPT)" you should find
GND 53 CTS 5
one more new „USB Serial Port„ as sample (COM3). If you see this or similar entries
TXD 5 54 RTS 5 the module is installed correctly.
DTR 5 55 GND
CHANGE PORT NUMBER:
RXD 6 56 CTS 6
If you like to change the port number for example COM 3 to COM5, open the >Device
DSR 6 57 RTS 6
Manager< click at >COM3<, >Settings< and then >Advance<. There you can choose
between COM 3 up to 256.
DCD 6 58 GND
TXD 7 59 CTS 7
Linux:
DTR 7 60 RTS 7
The drivers are located on the driver CD in the folder:
GND 61 CTS 8
"D:\USB_to_IO\USB_to_Serial\Linux"
TXD 8 62 RTS 8 They are supported by the most versions of Linux OS. Because each individual version
of Linux OS is different, sadly we cant provide a installation instruction. Please refer to
DTR 8
the installation manual for IO ports from your Linux OS version !
MAC:
The drivers are located on the driver CD in the folder:
"D:\USB_to_IO\USB_to_Serial\Mac_OS_X" for MAC OS-X or:
"D:\USB_to_IO\USB_to_Serial\Mac_OS_9_8" for Mac OS 9 & Mac OS 8
They are supported by the most versions of MAC OS. Because each individual version
of MAC OS is different, sadly we cant provide a installation instruction. Please refer to
the installation manual for IO ports from your MAC OS version !
CLEANING :
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pres-
sure. In the area of the connectors please make sure that no fibres from the cloth re-
main in the connectors. Attention! Never use a moist or wet cloth for cleaning!
> USB Serial Port (COM5)<.
English English English
AUFBAU :
S1
.
BESCHREIBUNG & TECHNISCHE DATEN :
Die USB zu Seriell Module sind zur Umsetzung von USB auf acht RS-232 Schnittstellen
.
mit FIFO 16C550 Ports für den Anschluss von High Speed Seriellen RS-232 Peripherie
.
Geräten (z.B. Modem, Plotter usw.) geeignet. Die Module sind Hot Plug & Play fähig.
Für die Einstellungen der I/O Adressen und Interrupts sind keine Jumper und Einstellun-
gen notwendig. Sie werden vom System und beim Installieren des Betriebssystems
automatisch vorgenommen.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
5 Volt
Buchse:
DB 9M:
USB B Buchse:
6
Bedienungsanleitung
Bedienungsanleitung
Vers. 3.1 / 08.03.11

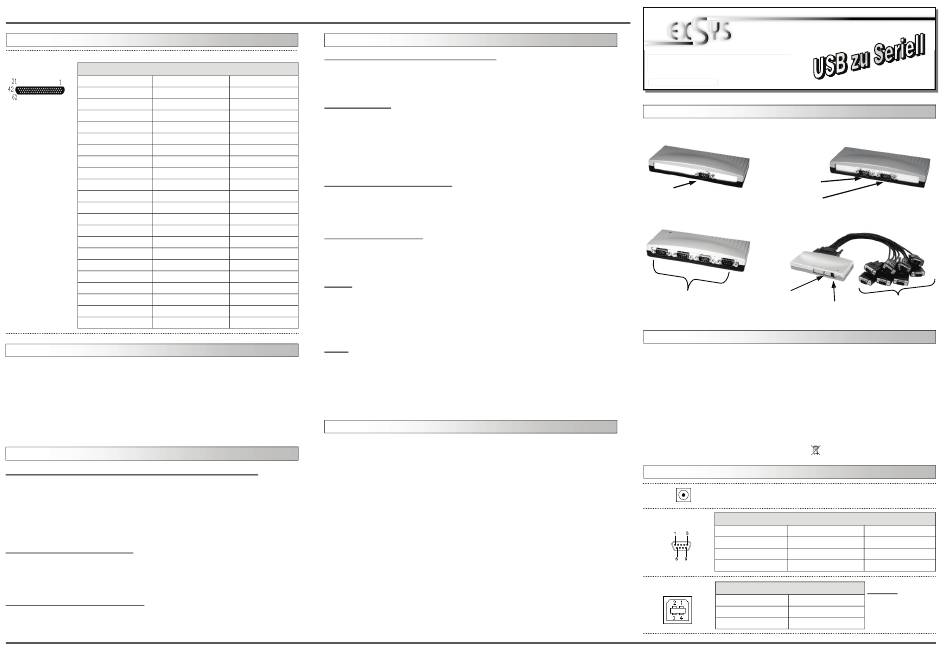

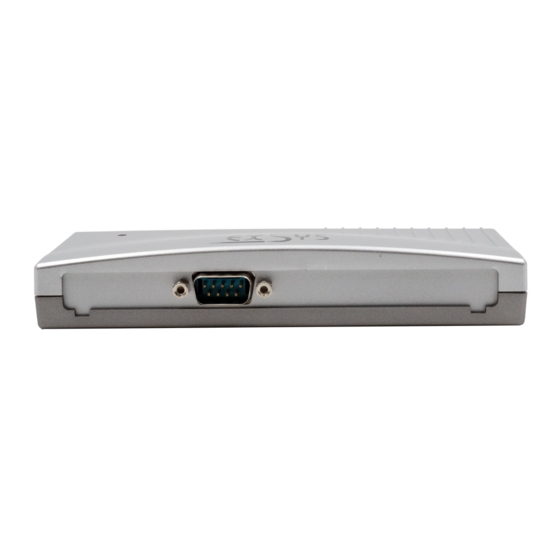

EX-1331 / 1S Seriell
S2 9 Pin Stecker
Seriell RS232
9 Pin Stecker S1 9 Pin Stecker
Seriell RS232 Seriell RS232
EX-1334 / 4S Seriell
USB B Anschluss
S1 to S4 4 x 9 Pin
Stecker Seriell RS232
5V Anschluss
USB 1.1 & 2.0 Anschluss
WIN 98/ME/2000/XP/Server 2003/Vista/Win7, Linux, MAC
9 Pin Sub-D Stecker, 1 x USB B-Buchse, 1 x 5V Buchse
1 x USB zu Seriell Modul, Anleitung, CD, USB Kabel
CE
/ FCC / RoHS / WEEE DE97424562
ACHTUNG !!! Nur mit optionalem Original Netzteil verwenden !!!
Seriell 9 Pin D-SUB Stecker:
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
USB 2.0 B-Buchse:
Pin Signal Pin
1 VCC 3
2 DATA- 4
1
EX-1332 / 2S Seriell
EX-1338 / 8S Seriell
S1 to S8 8 x 9 Pin
Stecker Seriell RS232
Signal Pin Signal
DTR 7 RTS
8 CTS
DSR 9 RI
Achtung!
Signal Stecker nie umge-
kehrt oder mit
DATA+
Gewalt einstecken.
GND
