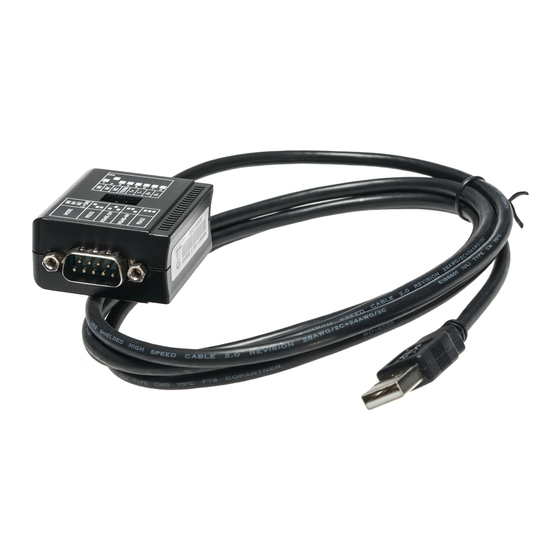

Rs232/422/485 3-ini-1 to usb2.0 adapter cable, w/ db9m connector
Hide thumbs Also See for EX-1309-9:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

RS232/422/485 3-ini-1 to USB2.0 Adapter Cable,
1. Introduction
Congratulation
RS232/422/485 3-in-1 to USB2.0 Adapter Cable. It supports 1 serial port which
can be set in RS232, RS422, RS485-2W, or RS485-4W modes. The UART based
serial port is fully compatible with most of the RS232C, RS422 and RS485
devices available from the market. It is an ideal solution for most of serial
applications.
Features:
USB 2.0 Full Speed (12Mbps) Compatible
Supports 1x DB9-Male-Connector RS232/422/485 3-in-1 Serial Port
Supports 4-wire RS422, RS485 and 2-wire RS485 Modes
Supports RS485 Auto Transceiver Turn Around by Unique Featured ATTA
Hardware
Supports Baud Rate up to 921.6Kpbs
Supports Win2000, XP, 2003, 2008, Vista, Win 7, 8.x, 10, Linux and others
2. Connector Layout
Mode
Selection
Switch
DB9M Connector
(R232/422/485)
EX-1309-9
w/ DB9M Connector
on
your
purchasing
this
high
1
performance
4-port
USB Type-A
Plug
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-1309-9 and is the answer not in the manual?

Questions and answers

Related Manuals for Exsys EX-1309-9

Summary of Contents for Exsys EX-1309-9

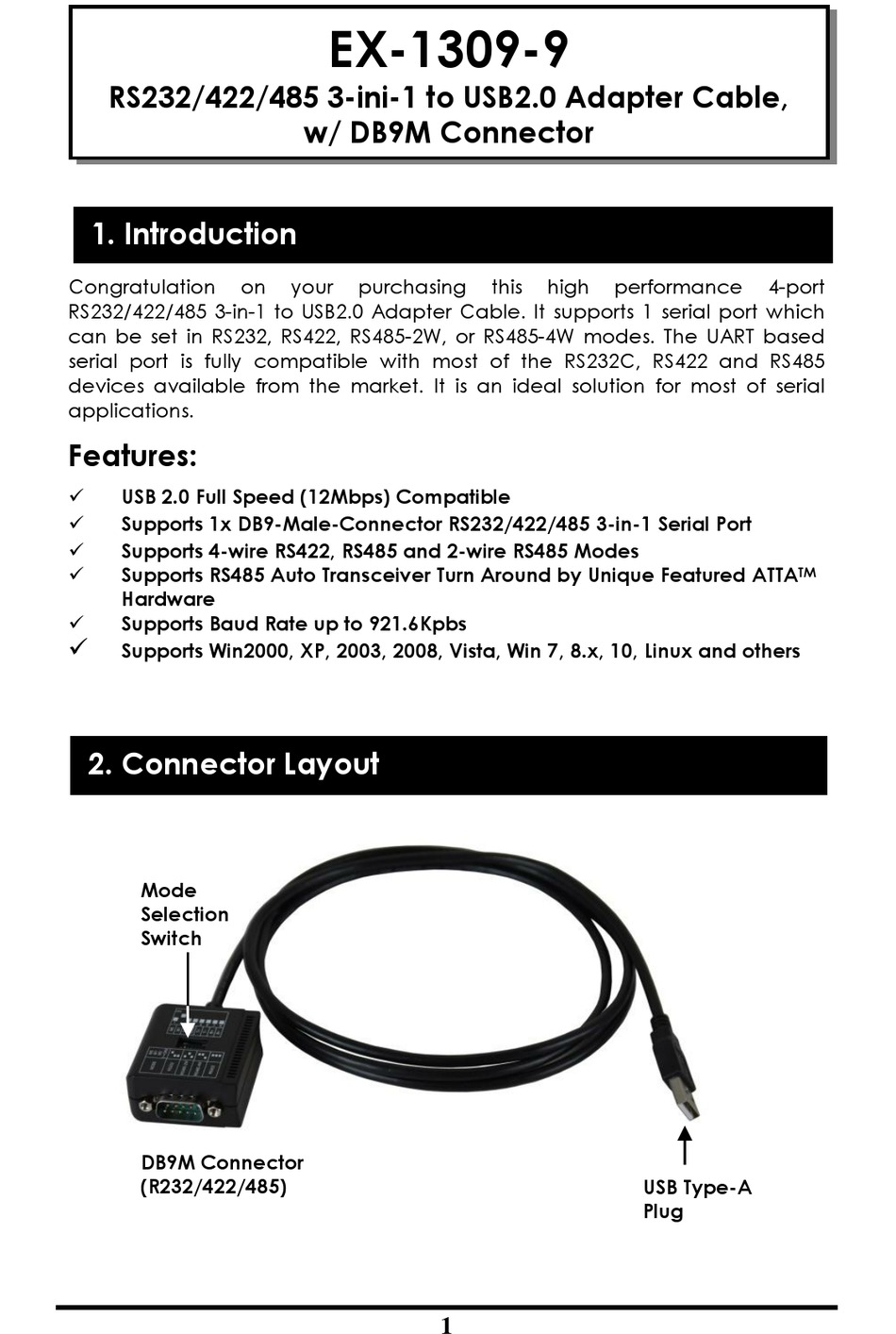

  • Page 1 EX-1309-9 RS232/422/485 3-ini-1 to USB2.0 Adapter Cable, w/ DB9M Connector 1. Introduction Congratulation your purchasing this high performance 4-port RS232/422/485 3-in-1 to USB2.0 Adapter Cable. It supports 1 serial port which can be set in RS232, RS422, RS485-2W, or RS485-4W modes. The UART based serial port is fully compatible with most of the RS232C, RS422 and RS485 devices available from the market.
