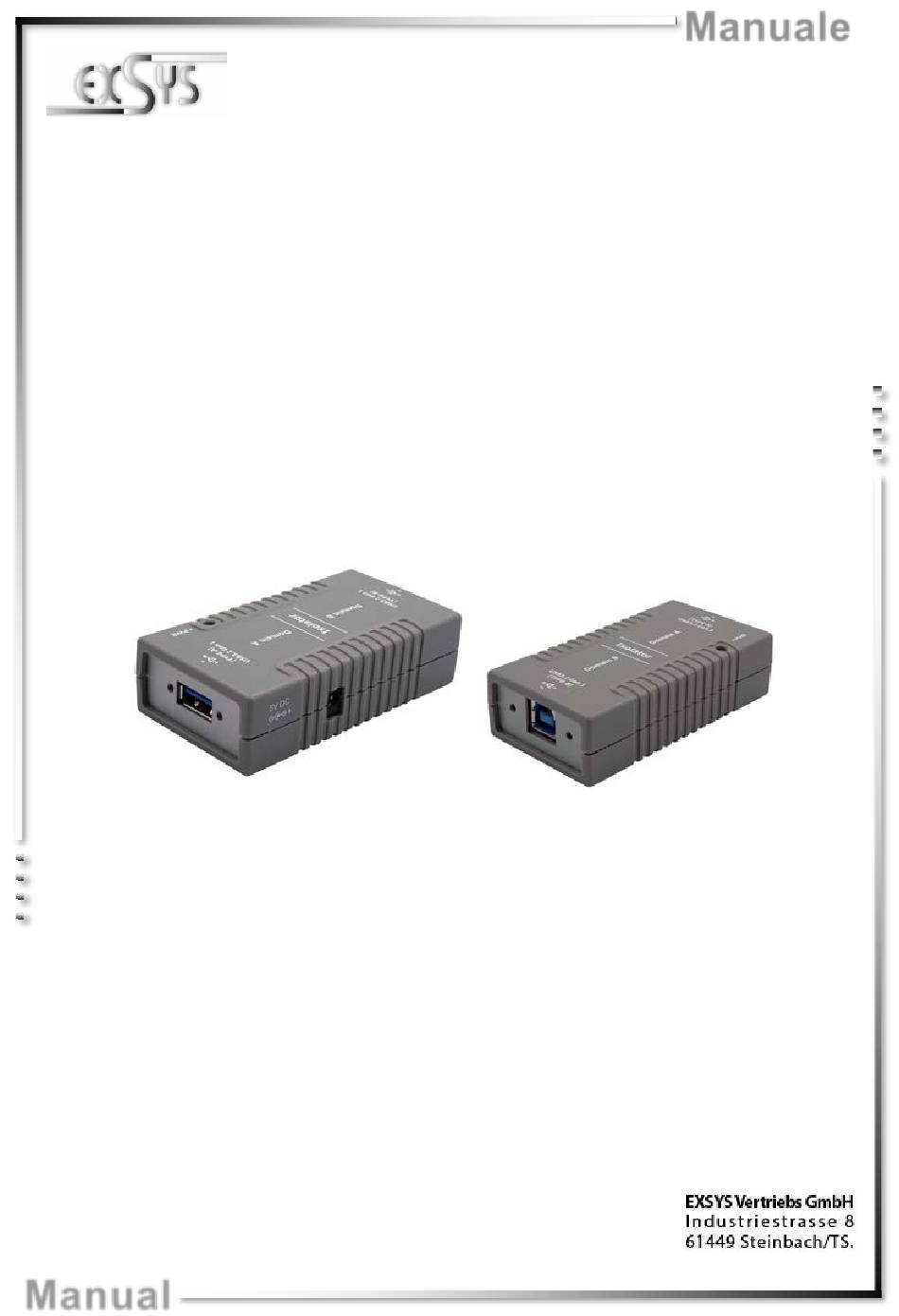

- Page 1 Manuale EX-1452IS Adattatore USB 3.2 Gen 1 con isolamento ottico fino a 3KV USB 3.2 Gen1 Isolation Adapter with 3KV Optical Isolation Vers. 1.0 / 07.08.20 Manual...
-
Page 2: Table Of Contents
Disegno Tecnico Index Description Extent of Delivery Layout, Connections & Limitation of Connection 10-11 Layout Connections 10-11 Limitation of Host Connection Hardware Installation Driver Installation Cleaning Technical Information Technical Drawing © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Descrizione
15 KV ed è inoltre dotato di isolamento ottico da 3KV tra le connessioni a monte e a valle. Dal lato host, tuttavia, l’EX-1452IS è compatibile solo con la porta USB 3.2 (Gen1) o successiva! Pertanto non supporta gli host USB 2.0 o 1.1. L'EX-1452IS supporta la modalità... -
Page 4: Struttura, Attacchi E Limitazione Della Connessione Host
Presa Jack-DC 5V : NOTA BENE!!! Utilizzare solo con l'alimentatore opzionale disponibile! USB 3.2 (Gen1) Type-A: GND_DRAIN StdB_SSTX + StdB_SSTX+ ATTENZIONE! StdB_SSTX - StdB_SSTX - Non collegare mai viceversa o con la forza. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Limitazione Della Connessione Host
3.2 Limitazione della connessione Host A causa delle limitazioni dell'isolatore, l’EX-1452IS può supportare dispositivi USB 3.2, USB 2.0 e USB 1.1 sulla porta downstream, ma solo host USB 2.0 e USB 1.1 sulla porta upstream. La seguente tabella elenca le combinazioni:... -
Page 6: Installazione Hardware
Ciò può essere fatto, ad esempio, toccando una guida di alloggiamento in metallo nudo dopo aver spento l'alimentazione. Ora collegare l'EX-1452IS con il cavo USB incluso e l'altra estremità del cavo alla porta USB del PC. Ora collegare i dispositivi all'EX-1452IS. -
Page 7: Pulizia
Da 0° a 60° Celsius Temp. Conservazione: Da -20° a 85° Celsius Umidità Rel.: Dal 5% al 95% Alimentazione: +5 Volt Isolamento: 82,40 x 44,20 x 22,50 mm Dimensione: 400g Peso: © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Disegno Tecnico
Italiano EX-1452IS 8. Disegno Tecnico © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description
3KV Optical Isolation. On the host side, how- ever, the EX-1452IS is only compatible with USB 3.2 (Gen1) or higher. It therefore does not support USB 2.0 or USB 1.1 host’s. The EX-1452IS supports USB Bus Power Mode and Self Power Mode, allowing the adapter to operate without a power supply, provided the devices have low power consumption. -
Page 10: Layout, Connections & Limitation Of Connection
ATTENTION!!! Use only with optional available Power Supply! USB 3.2 (Gen1) A-Port: GND_DRAIN StdB_SSTX + StdB_SSTX+ StdB_SSTX - Attention! StdB_SSTX - Never plug in with force or in wrong direction. © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Limitation Of Host Connection
VBus 3.2 Limitation of Host Connection Due to the limitations of the isolator, the EX-1452IS can support USB 3.2, USB 2.0 & USB 1.1 devices on the downstream port, but only USB 2.0 & USB 1.1 host‘s on the upstream port. The following table lists the combinations:... -
Page 12: Hardware Installation
This can be done, for example, by touching a bare metal housing rail after switching off the power supply. 2. Now connect the EX-1452IS with the included USB cable and the other end of the cable to the USB port on your PC. -
Page 13: Cleaning
All Operating Systems Operating Temperature: 32°F to 140°Fahrenheit Storage Temperature: -4°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +5 Volt Isolation: 82,40 x 44,20 x 22,50 mm Size: 400g Weight: © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Drawing
English EX-1452IS 8. Technical Drawing © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
