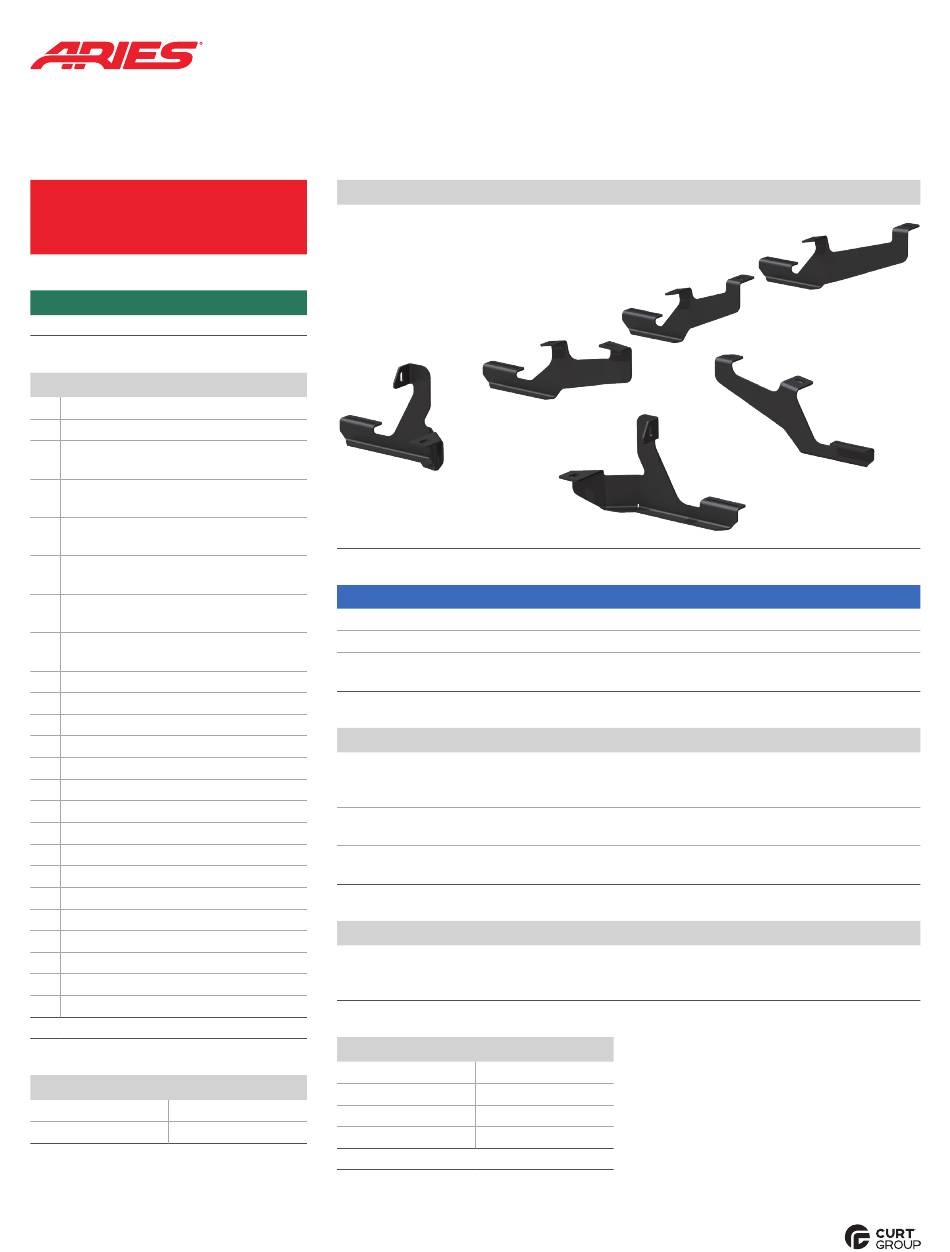

INSTALLATION MANUAL
This is the first of two manuals
required to complete this installation.
The second manual is included with
your side bars / running boards.
Level of Difficulty
Easy
Parts List
1
Driver / left running board*
1
Passenger / right running board*
1
VersaTrac
Driver / left
™
front mounting bracket
1
VersaTrac
Driver / left
™
rear mounting bracket
1
VersaTrac
Passenger / right
™
front mounting bracket
1
VersaTrac
Passenger / right
™
front-middle mounting bracket
1
VersaTrac
Passenger / right
™
rear-middle mounting bracket
1
VersaTrac
Passenger / right
™
rear mounting bracket
3
Carriage bolt plate
6
C-shaped brackets
20 Hex bolt, M8
20 Lock washer, M8
20 Flat washer, M8
6
Nut plate, long, M8
2
Nut plate, short, M8
1
Bolt plate, M10
1
Bolt retainer, M10
1
Flat washer, M10
1
Lock washer, M10
1
Hex nut, M10
3
Carriage bolt, M12 x 45mm
3
Lock washer, M12
3
Flat washer, M12
3
Hex nut, M12
* Running boards sold separately
Tools Required
Socket set
Level
Ratchet
--
ARIESAUTOMOTIVE.COM

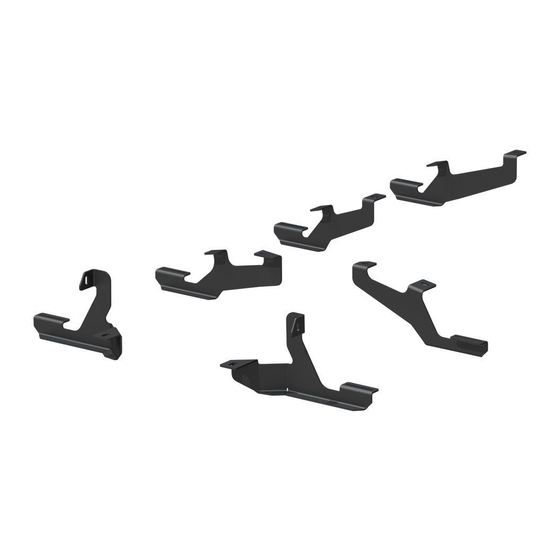

Product Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
Torque Specifications
M6 bolt
M8 bolt
M10 bolt
M12 bolt
Use above torque setting unless otherwise noted
•
NEED ASSISTANCE?
•
877.287.8634
Front
3 ft-lbs.
7 ft-lbs.
16 ft-lbs.
28 ft-lbs.
•
2055115-INS-RC
•
PAGE 1
2055115
Rear
