INSTALLATION MANUAL
This is the first of two manuals
required to complete this installation.
The second manual is included with
your side bars / running boards.
Level of Difficulty
Moderate
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Parts List*
1
Driver / left bracket A (1 notch)
1
Driver / left bracket B (2 notches)
1
Driver / left bracket C (3 notches)
1
Driver / left bracket D (4 notches)
1
Passenger / right bracket A (1 notch)
1
Passenger / right bracket B (2 notches)
1
Passenger / right bracket C (3 notches)
1
Passenger / right bracket D (4 notches)
8
T-Rails
24 Hex bolt, M8, black
24 Flat washer, M8, black
8
Lock washer, M8
16
Serrated flange nut, M8
16
Flat washer, 5/16"
16
Nylock nut, 5/16"
4
Door Sensor
4
Magnet
2
Alcohol wipe
1
Power switch
1
Circuit board
1
Anti-seize
1
Wire loom
1
Wiring harness, two-piece
2
LED light
2
LED light bracket
2
Rubber grommet, 1"
4
Double-sided foam tape, 3/4" x 3/4"
4
Double-sided tape, 3/4" x 1"
4
Double-sided tape, round
8
Cable tie, 8"
4
Adhesive cable tie base
1
Mounting bracket for rocker switch
* Running boards sold separately
WARNING
Improper electrical installation may result in personal injury. Unless
you are familiar with the installation and handling of electrical systems,
have this step performed by someone who has that familiarity.

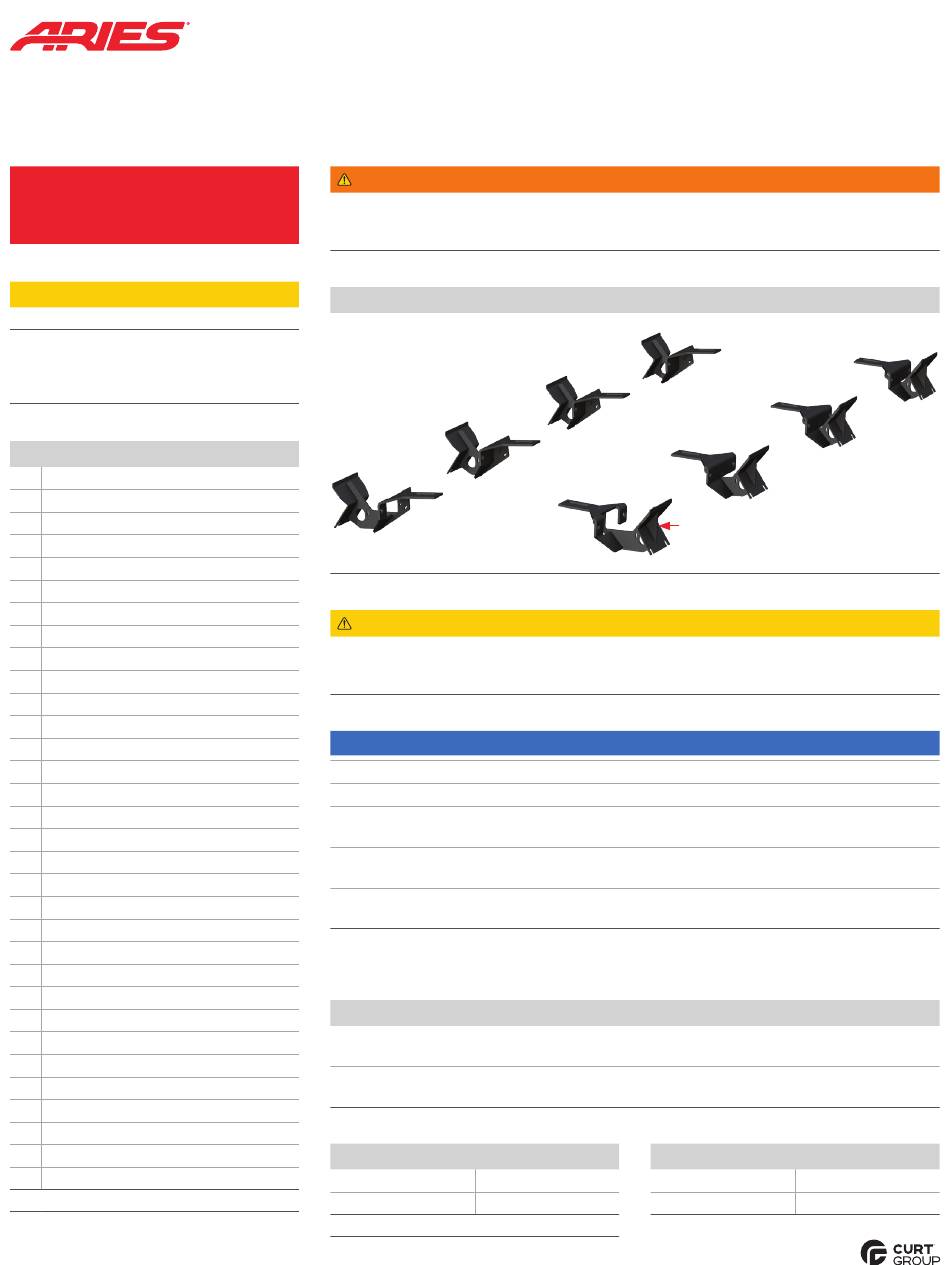

Product Photo
Passenger
side (B)
Passenger
side (A)
CAUTION
If the step fails to actuate completely (open or closed), do not attempt to force the step open or
close. Applying force in this condition will damage the product and void your warranty. Refer to
the troubleshooting guide on the last page of the instruction manual to resolve potential issues.
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
ActionTrac
Powered Running Boards feature a transportation mode cutoff switch to prevent
™
battery drain. Switch to the off position if your vehicle is sitting idle for longer than one week.
Periodic inspection of your product should be performed to ensure
all wiring connections, hardware and / or components remain secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
No maintenance required on waterproof harness or water-resistant motors.
If mud or dirt is built up on the steps, simply spray them off and let them air dry.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Torque Specifications
M8 bolt
7 ft-lbs.
5/16" bolt
7 ft-lbs.
Use above torque setting unless otherwise noted
Passenger side (D)
Passenger
side (C)
Notch
Location
Driver side (A)
Tools Required
Ratchet
Cable ties
3025175
Driver side (D)
Driver side (C)
Driver side (B)
Socket set
Level
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Curt Group Aries 3025175
Summary of Contents for Curt Group Aries 3025175
- Page 1 INSTALLATION MANUAL 3025175 This is the first of two manuals WARNING required to complete this installation. Improper electrical installation may result in personal injury. Unless The second manual is included with you are familiar with the installation and handling of electrical systems, your side bars / running boards.
- Page 2 Step 1 Starting on the passenger side, locate the four mounting locations underneath the vehicle. Note: Each bracket is specific to a mounting location and side. Each bracket has notches cut into the vertical support – one notch is installed at the front mount location, four notches in the rear.
- Page 3 Step 4 Remove the fuse from the wiring harness before installing. Once the fuse is removed, take that section of the wiring harness and attach it to the battery. Route the opposite end of the harness through the firewall into the cab of the vehicle. Use a cable tie to secure the wiring harness in place once it is in the desired location.
- Page 4 Step 6 Wiring Locations Once the trim panels are removed, take the Door sensor, rear Purple / Orange second section of wiring harness and route it Door sensor, front Yellow / Orange under the carpet, through the vehicle, from the passenger-side rear to the desired location.
- Page 5 Step 7 On the driver side, take the power wire and sensor wire (orange / yellow) and route it to the front of the vehicle underneath the carpet. Take the driver-side rear actuator (red / black) and the LED light (brown / tan) and route it through the floor plug behind the driver seat.
- Page 6 Step 10 Plug the door sensor into the wiring harness and route it up the door frame, under the carpet. Note: If installing a door delete switch, refer to part #3020000-INS at this time. Once the harness and sensor are routed to the desired locations, wipe the sensor and door with the provided alcohol wipe.
- Page 7 Step 12 Locate a spot to mount the power switch bracket. The bracket can be attached using either the 3/4" double sided tape squares, screws (not provided), or by using a factory screw if one exists in a suitable location. WARNING If using screws confirm there are no wires behind the panel.
- Page 8 TROUBLESHOOTING Condition Possible Cause Possible Solutions Additional Information Power switch is off Confirm that the main power switch is in the on position and has power. Poor battery Confirm the positive and negative connection connection on the battery are secure. Fuse is blown Confirm that the fuse is plugged in and not blown.
