INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
1
Driver / left Rocker Step
1
Passenger / right Rocker Step
4
Driver / left
mounting bracket, universal
4
Passenger / right
mounting bracket, universal
16
Flat washer, M8
16
Lock washer, M8
16
Hex bolt, M8
Tools Required
Torque wrench
Wrench
Socket, 13mm
Flathead screwdriver
Torque Specifications*
M6 bolt
3 ft-lbs.
M8 bolt
7 ft-lbs.
M10 bolt
16 ft-lbs.
M12 bolt
28 ft-lbs.
1/4" bolt
3 ft-lbs.
5/16" bolt
7 ft-lbs.
3/8" bolt
16 ft-lbs.
7/16" bolt
20 ft-lbs.
1/2" bolt
28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

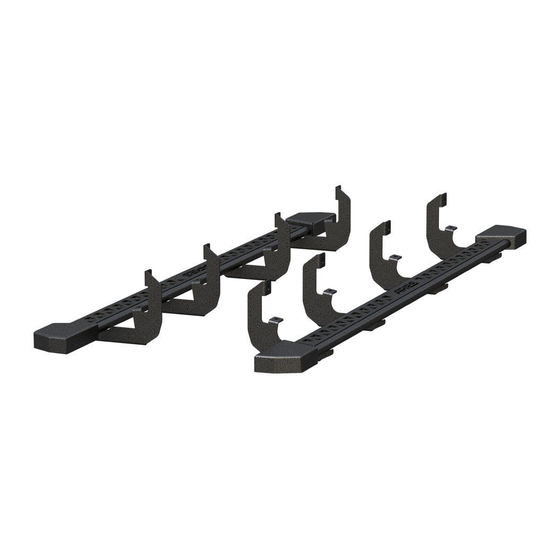

Product Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
•
NEED ASSISTANCE?
•
877.287.8634
•
2074113-INS-RA
•
PAGE 1
2074113
Front
Rear
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Curt Group Aries 2074113
Summary of Contents for Curt Group Aries 2074113
- Page 1 1/2" bolt 28 ft-lbs. Use above torque setting unless otherwise noted Product Registration and Warranty CURT Group stands behind our products with industry-leading warranties. Provide feedback and help us to improve our products by registering your purchase at: warranty.curtgroup.com/surveys ARIESAUTOMOTIVE.COM •...
- Page 2 Step 1 Starting on the driver side, locate the four mounting points along the rocker panel of the vehicle. Step 2 Lift the Rocker Step into position and align the brackets on the Rocker Step with the mounting points on the vehicle. Secure all mounting points using two M8 hex bolts, lock washers and flat washers.
