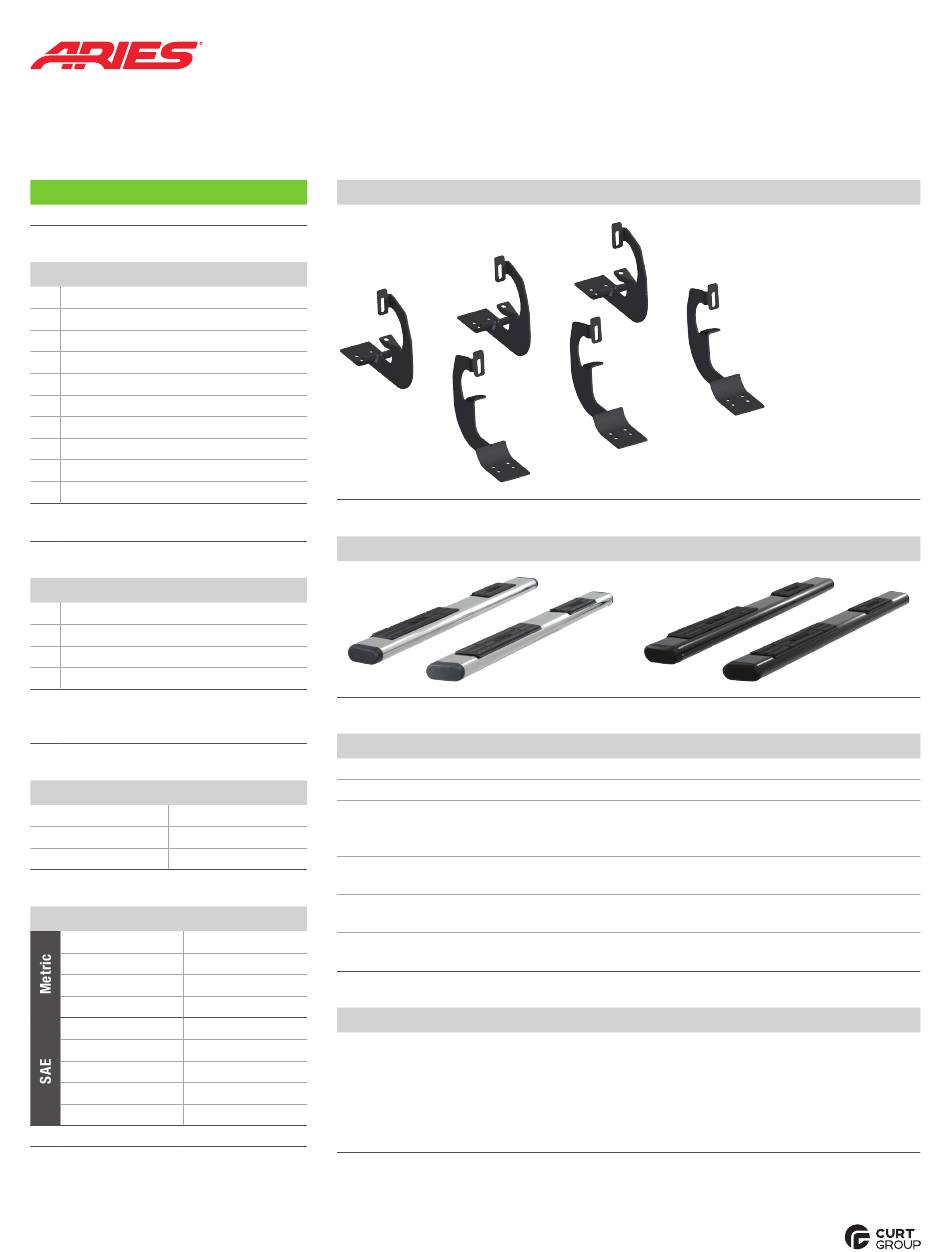

INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
2
6" oval side bar
6
Universal bracket
6
Stainless steel bolt plate
24 Flat washer, M6
24 Nylock nut, M6
12
Flat washer, M8
12
Lock washer, M8
12
Hex head cap screw, M8
12
Clip nut, M8
6
Nut, M8
*Not all hardware may be used.
Some hardware is vehicle-specific
Additional Hardware*
24 T-bolt, M8
24 Flat washer, M8
24 Lock washer, M8
24 Hex nut, M8
* Aluminum side bars are supplied with
additional hardware. Quantities listed are in
addition to the standard supplied hardware.
Tools Required
Ratchet
Socket, 10mm
Ratchet extension
Socket, 13mm
Level
--
Torque Specifications
M6 bolt
3 ft-lbs.
M8 bolt
7 ft-lbs.
M10 bolt
16 ft-lbs.
M12 bolt
28 ft-lbs.
1/4" bolt
3 ft-lbs.
5/16" bolt
7 ft-lbs.
3/8" bolt
16 ft-lbs.
7/16" bolt
20 ft-lbs.
1/2" bolt
28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

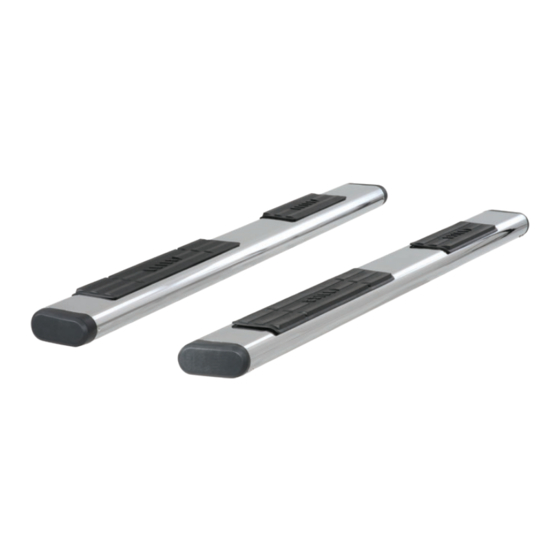

Product Photo
6" Oval Side Bars (not included)
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Product Registration
CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
•
NEED ASSISTANCE?
•
877.287.8634
•
4490-INS-RB
•
PAGE 1
4490
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Curt Group Aries 4490
Summary of Contents for Curt Group Aries 4490
- Page 1 1/2" bolt 28 ft-lbs. At CURT Group, customer is king. We value your feedback and we use that information to make Use above torque setting unless otherwise noted improvements on our products. Please, take a minute and let us know how we are doing.
- Page 2 Step 1 Locate the mounting tabs along the bottom edge of the vehicle body. For crew cab models, use the first, second and fifth mounting locations. For extended and double cab models, use the first, second and fourth mounting locations. Step 2A Starting on the front driver-side mounting location, place a universal bracket...
- Page 3 Step 4 Locate the fourth mounting location from step 1 and remove the rubber plug from the access hole. Insert a clip nut through the access hole and align it over the adjacent small hole. Step 5 Repeat step 2B to secure the bottom of the bracket with an M8 clip nut, bolt, lock washer and flat washer.
- Page 4 Step 7B - For Aluminum Side Bars Insert four T-bolts into the bottom channels of the side bar as shown. Slide the bolts forward to the front bracket and insert them through the bracket cradle. Repeat this for the rear bracket. Secure the side bar to the brackets using M8 flat washers, lock washers and nuts.
