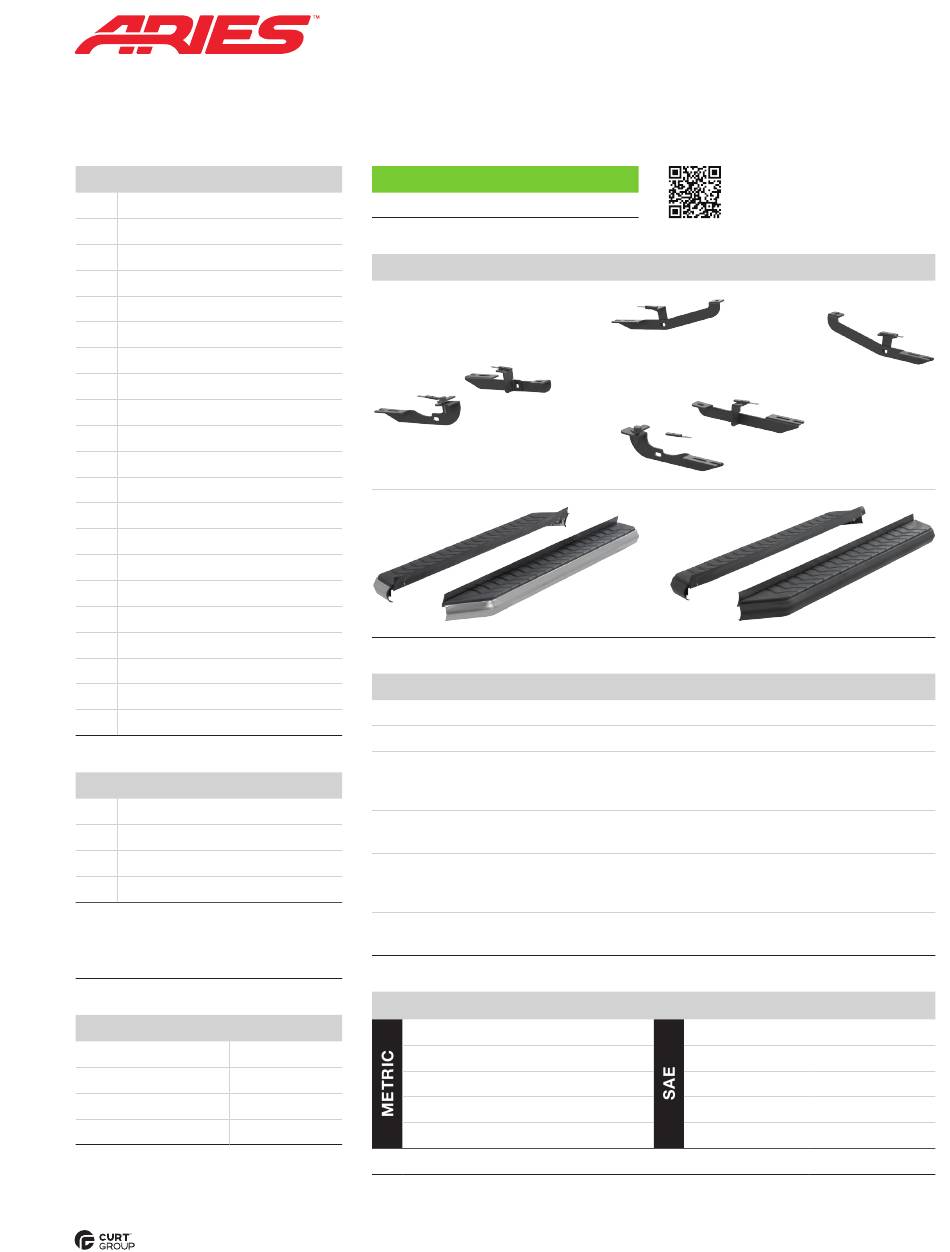

INSTALLATION MANUAL
Parts List
1
Driver / left running board
1
Passenger / right running board
2
Mounting bracket, front
2
Mounting bracket, middle
2
Mounting bracket, rear
2
Hanger bracket, front
2
Hanger bracket, middle
2
Hanger bracket, rear
6
Hex bolt, M8
6
Flat washer, M8
6
Lock washer, M8
6
Handle nut, M8
6
Hex bolt, M10
12
Flat washer, M10
6
Lock washer, M10
6
Hex nut, M10
2
T-bolt, M12
2
Flat washer, M12
2
Lock washer, M12
2
Hex nut, M12
2
Plastic bolt retainer, M12
Additional Hardware*
12
Hex bolt, M8
12
Flat washer, M8
12
Lock washer, M8
12
Hex nut, M8
* Running boards are supplied
with additional hardware.
Quantities listed are in addition
to the standard supplied hardware.
Tools Required
Ratchet
Socket, 10mm
Torque wrench
Socket, 13mm
Flathead screwdriver
Socket, 17mm
Wrench, 17mm
Socket, 18mm
Level of Difficulty
Easy

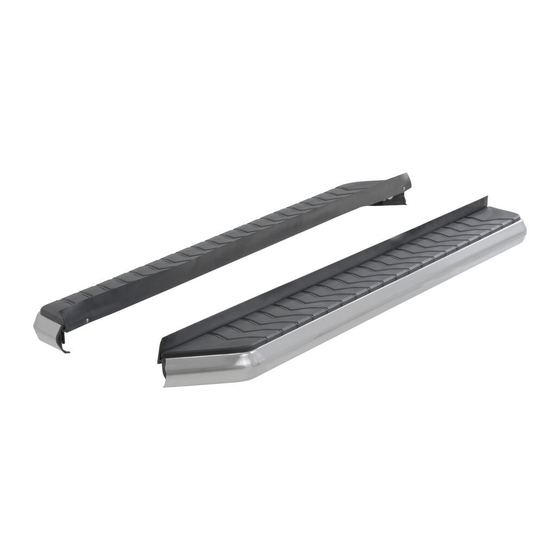

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product.
Do not use dish detergent, abrasive cleaners, abrasive pads,
wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Torque Specifications
M6 bolt
M8 bolt
M12 bolt
M12 bolt
--
Use above torque setting unless otherwise noted
PAGE 1 • 2051132-INS-RD • 877.287.8634 • NEED ASSISTANCE?
Rear
Front
3 ft.-lbs.
1/4" bolt
7 ft.-lbs.
5/16" bolt
16 ft.-lbs.
3/8" bolt
28 ft.-lbs.
7/16" bolt
--
1/2" bolt
2051132
Scan
for helpful
install tips
Rear
Middle
Front
Rear
Front
3 ft.-lbs.
7 ft.-lbs.
16 ft.-lbs.
20 ft.-lbs.
28 ft.-lbs.
• ARIESAUTOMOTIVE.COM
