SKC Leland Legacy Operating Instructions Manual

Sample pump
Hide thumbs Also See for Leland Legacy:
Table of Contents

Advertisement

Quick Links

Download this manual

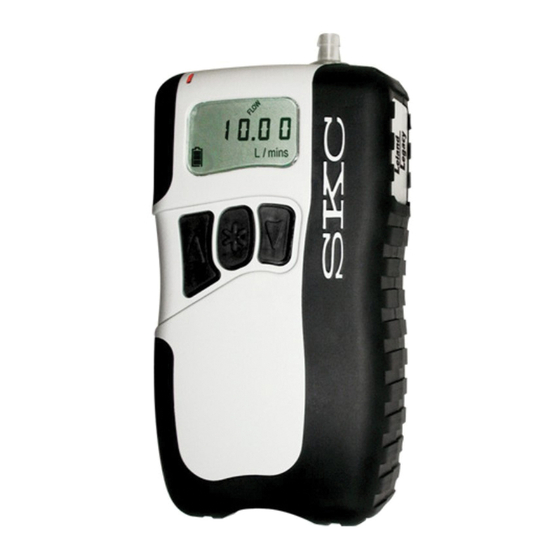

Leland Legacy Sample Pump
Cat. No. 100-3002
Operating Instructions
Battery status icon
Li-Ion battery pack
for 24-hour run
times (battery
included)
Not shown:
Belt clip (back)
Battery charging
jack (top)
Computer interface
port (top)
TABLE OF CONTENTS
Introduction.................................................................................................................................................... 3
Description ................................................................................................................................................. 3
Checking Kit Contents ............................................................................................................................... 3
Required Equipment .................................................................................................................................. 3
Getting Started .............................................................................................................................................. 4
Charge the Battery Pack ........................................................................................................................... 4
Reading Charging Status LED on the Single Charger ........................................................................... 4
Determining Battery Charge Status ....................................................................................................... 4
Notes and Cautions ................................................................................................................................... 5
Using the Keypad ...................................................................................................................................... 5
skcinc.com
Flashing LED run
indicator

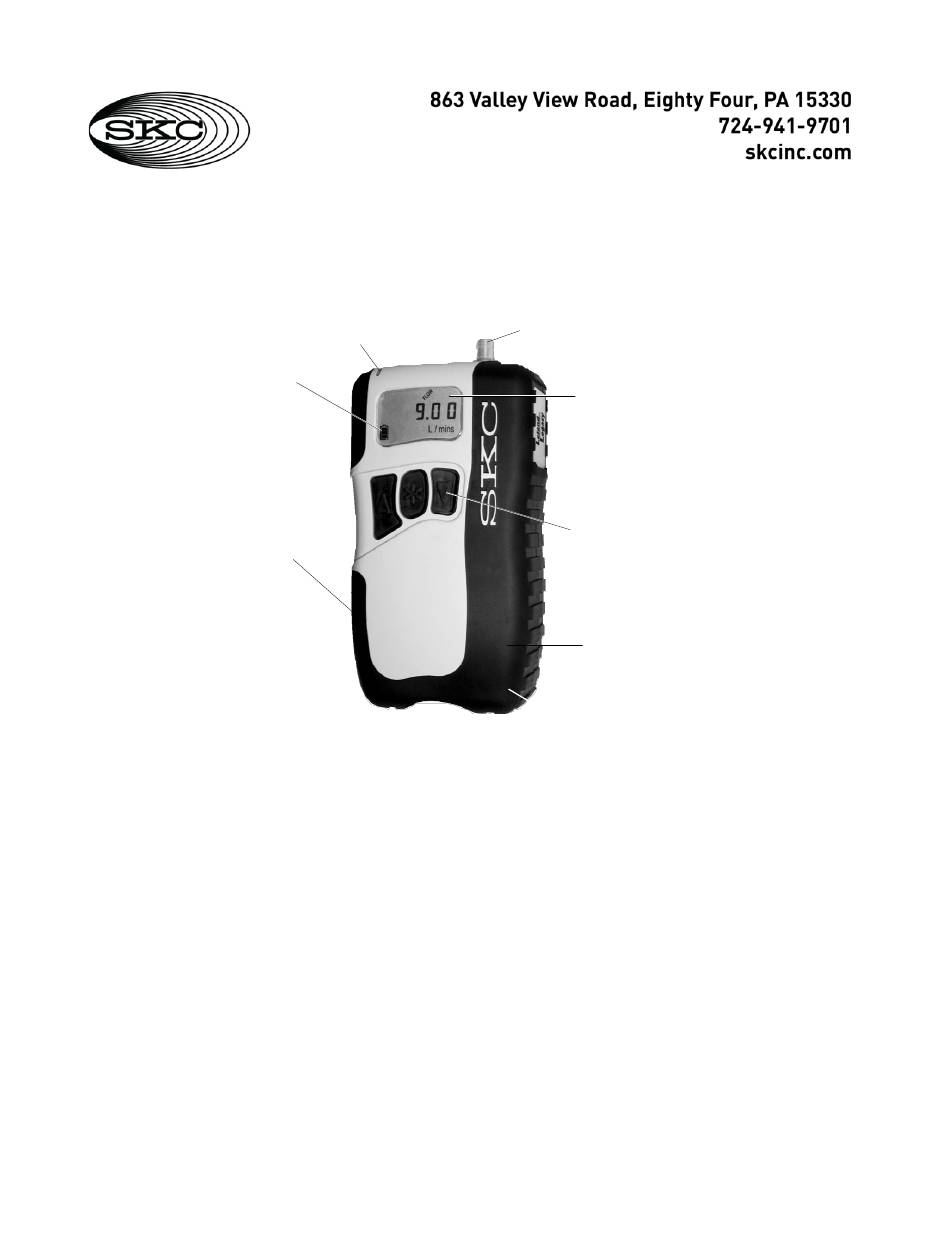

Figure 1. Leland Legacy Sample Pump
Form 40075 Rev 210329
Inlet/Filter retainer
with protective cover
Liquid Crystal Display (LCD)
Keypad with large
operating buttons
Soft rubber
overmolding protects
against damage
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leland Legacy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SKC Leland Legacy

Summary of Contents for SKC Leland Legacy

  • Page 1 Soft rubber Battery charging overmolding protects jack (top) against damage Computer interface port (top) Figure 1. Leland Legacy Sample Pump TABLE OF CONTENTS Introduction..............................3 Description ..............................3 Checking Kit Contents ..........................3 Required Equipment ..........................3 Getting Started .............................. 4 Charge the Battery Pack ...........................

  • Page 2: Table Of Contents

    Change the Battery Pack......................... 15 Full Calibration (Multiple-point) Using CalChek..................16 CalChek Full Calibration Data (Requires DataTrac for Leland Legacy Software) ......17 CalChek Full Calibration Data Verification (Requires DataTrac for Leland Legacy Software) .... 17 Troubleshooting ............................18 CalChek Error Chart ..........................18 Single-point Calibration Errors ......................
  • Page 3 Checking Kit Contents Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact SKC at 800-752-8472 (U.S. only) or 724-941-9701. If You Ordered Cat. Your Package Should Contain...
  • Page 4 The battery will recharge in Charging unit approximately 15 hours. Jack Leland Legacy charging train with single charger Reading Charging Status LED on the Single Charger The Li-Ion Charging Unit Cat. No. P22300 indicates battery charge status via an LED on the unit that blinks in specific patterns.
  • Page 5 Failure to follow warnings and cautions voids any warranty. For more information on pump battery packs, go to www.skcinc.com/knowledgecenter. Using the Keypad The Leland Legacy pump is operated by pressing key sequences on the keypad located on the front of the pump case. See below. ...

  • Page 6: Turning Pump Power On/Off

    Turning Pump Power On/Off • Press any button to turn on the power. •  Press [ ] to run the pump or to place a running pump in Hold. • Manual Off: from Hold, press and hold  • Auto Off turns off the pump after five minutes in Hold.

  • Page 7: Setup Functions

    11. End: Press [] to save new settings and exit Setup. PrOFF: Appears only when a program is loaded into pump memory. See DataTrac for Leland Legacy Software Operating Instructions for setting a program at www.skcinc.com/knowledgecenter. See Delete a DataTrac Program or Delayed Start.
  • Page 8 7. To delete a set sampling time, see Delete a Sampling Time in Sampling Functions. Set a DataTrac Program See DataTrac for Leland Legacy Software Operating Instructions at www.skcinc.com/knowledgecenter. Set a Delayed Start A delayed start can be programmed using the pump keypad or from a PC using DataTrac Software.
  • Page 9 6. Press [] to save settings and exit Setup. 7. Prog and a flashing Hold will appear in the upper left corner of the display. The pump is now set for delayed start. Set Pump Flow Rate 1. Press [], then press the security code  in sequence. 2.

  • Page 10: Operation

    OPERATION Set/Calibrate Flow Rate (Manual Calibration) • Allow pump to equilibrate after moving it from one temperature extreme to another. • Charge pump battery completely before calibration and sampling. 1. Ensure the pump has run for 5 minutes before performing calibration. 2.

  • Page 11: Set/Calibrate Flow Rate (Calchek Single Calibration)

    Use it to set the desired flow rate before sampling and to verify flow after sampling. The CalChek automatic calibration feature is available when calibrating a Leland Legacy pump with a calibrator with CalChek feature. High Flow chek-mate Calibrator with CalChek (see Accessories) requires CalChek Communication Cable Cat.
  • Page 12 13. When ready to sample, proceed to Set Up/Sample. Successful single-point calibration will provide an entry in the pump history that can be viewed using DataTrac for Leland Legacy Software. Allow pump to go to Sleep mode to write calibration data to pump history.

  • Page 13: Set Up/Sample

    The pump will not operate manually. To restore manual operation, delete the program. See Delete a DataTrac Program or Delayed Start in Sampling Functions below. Leland Legacy pump with filter cassette in holder Sampling Functions...

  • Page 14: Program The Pump Using A Pc

    Program the Pump Using a PC The Leland Legacy can be programmed manually with its integral keypad or by using a PC and DataTrac for Leland Legacy Software for full programmability. Note: For complete information on programming the Leland Legacy Pump using DataTrac for Leland Legacy Software, consult the DataTrac Operating Instructions at www.skcinc.com/knowledgecenter.

  • Page 15: Maintenance

    For optimum accuracy, do not perform full calibration until the pump has remained at ambient temperature for several hours. • SKC recommends that a full calibration be performed during pump maintenance and after non- factory repairs. • Place Pulsation Dampener Cat. No. 375-150 in line for standard and CalChek calibrations with High Flow chek-mate Calibrator with CalChek (see Accessories).

  • Page 16: Full Calibration (Multiple-Point) Using Calchek

    CalChek (see Accessories) provides flow correction across the complete operating range of the Leland Legacy pump (5 to 15 L/min). The operation calibrates each flow rate to a calibrator. It can also provide a record of calibration for maintenance and quality purposes if DataTrac for Leland Legacy Software is used.

  • Page 17: Calchek Full Calibration Data (Requires Datatrac For Leland Legacy Software)

    DataTrac Pump Manager window in DataTrac for Leland Legacy Software and clicking on the View menu. Choose Calibration Info. This will display calibration results, pump serial number, and date of the last full calibration. A button allows this data to be printed.

  • Page 18: Troubleshooting

    First flow reading greater than 5 L/min. The Check pressure sensor tubing to ensure that it is pump is flowing faster than it should, even not pinched or blocked or contact SKC Technical though the calibration routine delivered only a Support at skctech@skcinc.com.

  • Page 19: Accessories/Replacement Parts

    Accessories Accessories Cat. No. CalChek Communication Cable, for use with High Flow chek-mate Calibrator with CalChek, required for automatic calibration of Leland Legacy Sample Pump 375-200 Chargers Single Charging Kit, 100-240 V AC, 50/60 Hz, includes charging unit, power supply, and interchangeable wall plugs...

  • Page 20: Replacement Parts

    SKC Limited Warranty and Return Policy SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited Warranty and Return Policy, go to skcinc.com/warranty.

  • Page 21: Appendix: Performance Profile

    APPENDIX: PERFORMANCE PROFILE Flow Flow Range 5 to 15 L/min Flow Control System Closed loop with internal flow sensor Compensation Range 15 L/min at 5 inches water back pressure 10 L/min at 12 inches water back pressure 5 L/min at 20 inches water back pressure Flow Rate (L/min) Typical Back Filter/Pore Size (μm)
  • Page 22 Thermoplastic with soft rubber overmolding RFI/EMI Shielding CE marked Approvals Leland Legacy with Sioutas Impactor performance has been verified by EPA-ETV. † Results when tested with a new pump and new fully charged battery. Pump performance may vary. skcinc.com Form 40075 Rev 210329...
