  • Page 1 Operating Instructions AirLite Sample Pump ® Catalog No. 110-100 SKC Inc. 863 Valley View Road Eighty Four, PA 15330 Form #37814 Rev 0802...
  • Page 3: Table Of Contents

    Table of Contents AirLite Quick Start Guide ..............1 Description ..................... 3 Performance Profile ................4 Pump Run Time (Table 1) ..............5 Operation Changing the Batteries ................6 Setting the Flow Rate for High Flow Sampling ........7 Setting the Flow Rate for Low Flow Sampling ......... 8 Sampling....................
  • Page 5: Airlite Quick Start Guide

    AirLite Quick Start Guide On/Off 1. Lift control cover on top of pump. 2. Press on/off button. Setting Flow Rate (1000 to 3000 ml/min) 1. Set up sampling train. 2. Connect calibrator to inlet of sample medium. 3. Turn on pump and adjust flow adjustment screw on pump until desired flow rate is indicated on calibrator. Take a minimum of three readings. Calculate flow as the average of three readings. LED Indicators Slow flash = normal run Fast flash = flow fault Double flash = low battery, approximate minimum one-hour run time remaining Flash every eight seconds = pump shutdown due to exhausted batteries Four flashes every six seconds = pump shutdown due to flow fault Note: Indication of pump shutdown due to exhausted batteries will override all other indicators.
  • Page 7: Description

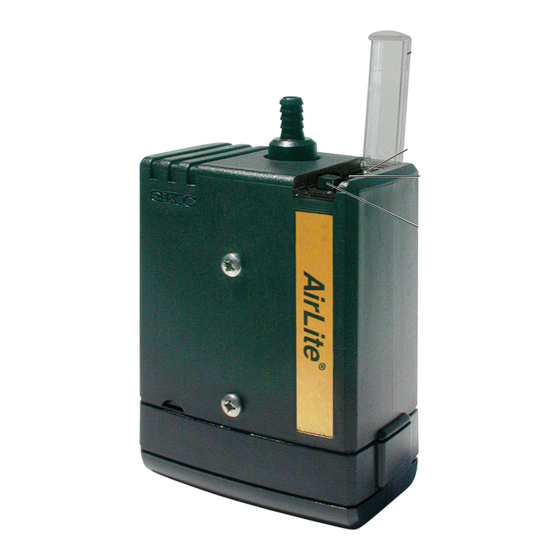

    Description The AirLite Personal Sampling Pump is specifically designed for personal sampling of ® asbestos, lead, and other airborne contaminants in environments where intrinsic safety is not required. Powered by economical, disposable AA alkaline batteries, the AirLite provides run times greater than 8 hours in the 1000 to 3000 ml/min flow range with full back pressure compensation.
  • Page 8: Performance Profile

    Performance Profile Flow Range: ......1000 to 000 ml/min (5 to 500 ml/min requires Constant Pressure Controller (CPC) and Adjustable Low Flow Tube Holder - see Low Flow Adapter Kit in Optional Accessories) Flow Control: ......Patented* system holds constant flow to ± 5% of the set-point Compensation Range ....
  • Page 9: Pump Run Time (Table 1)

    Table 1. Pump Run Time in Hours with Alkaline Batteries Following are typical run times achieved when using new disposable AA alkaline batteries. Data is sorted by type of sample media. All run times are listed in hours. Mixed Cellulose (MCE) Filter, 0.8-µm pore size Filter Diameter 37 mm 37 mm 37 mm 25 mm 25 mm Flow Rate 1 L/min 2 L/min 2.5 L/min 1 L/min 2 L/min Duracel Standard 23.5...
  • Page 10: Operation

    Operation 1 Battery Compartment Door 2 Battery Compartment Screw 3 Hinge Bottom View 4 Inlet 5 Control Cover (open) 6 Flow Adjustment Screw 7 LED 8 On/Off Button 9 Belt Clip (back of pump) Top View Figure 1 Top and bottom views Changing the Batteries The AirLite is powered by three standard AA alkaline batteries located in a compartment on the bottom of the pump (Figure 1, #1).
  • Page 11: Setting The Flow Rate For High Flow Sampling

    Setting or Verifying the Flow Rate For High Flow Sampling (1000 to 3000 ml/min) Using -inch ID tubing, connect a representative sampling medium to the pump inlet (Figure 1, #4). Connect an external flowmeter to the inlet of the sampling medium. Turn on the pump using the on/off button (Figure 1, #8). To adjust the flow, turn the flow adjustment screw (Figure 1, #6) clockwise to increase the flow or counterclockwise to decrease the flow until the desired flow rate is indicated on the flowmeter. When the desired flow is obtained, take three readings to confirm that the flow rate is consistent. Calculate and record the flow rate as the average of three readings. Disconnect the flowmeter and replace the representative sampling medium with a new unexposed medium for sample collection. Filter Cassette Tygon Tubing Calibrator Inlet Sample Pump Calibration train with filter cassette continued on page 8...
  • Page 12: Setting The Flow Rate For Low Flow Sampling

    Setting or Verifying the Flow Rate For Low Flow Sampling (5 to 500 ml/min) (Requires optional Constant Pressure Controller (CPC) and Adjustable Low Flow Tube Holders - see Low Flow Adapter Kit in Optional Accessories.) See Figure 2. The Constant Pressure Controller (CPC) accessory, Cat. No. 224- 26CPC-10, is used as a pressure regulator to maintain a constant 10 inches water back pressure for low flow sampling. The CPC is used in conjunction with an Adjustable Low Flow Tube Holder (Cat. Nos. 224-26-01, -02, -03, or -04) for single or multiple-tube...
  • Page 13 Turn off the pump. Disconnect the flowmeter and replace the representative tubes with new unexposed media for sampling. Caution: Long-duration Color Detector Tubes require a special tube cover that accommodates an in-line trap tube. The trap tube protects the pump from caustic fumes that are often released from detector tubes. Please read closely all precautions when using these tubes.
  • Page 14: Sampling

    Sampling Calibrate the sample pump for the desired flow rate (see Setting or Verifying the Flow Rate, pages 7 & 8). Attach the pump to a worker’s belt and the sampling medium to the worker’s collar (near the breathing zone). Turn on the pump. Record the start time and any other pertinent data. Monitor pump and battery status by observing the LED (see Reading the LED below). At the end of the sampling period, record the stop...
  • Page 15: Flow Fault Detection

    Flow Fault Detection (Pumps are shipped with flow fault enabled.) If the pump is unable to compensate for > 10 seconds due to excessive back pressure, the pump enters flow fault. The motor will stop and the LED will flash quickly. The auto- restart feature will attempt to restart the pump after 10 seconds. If back pressure is not corrected for an additional 10 seconds, the pump will attempt a second restart. The pump will continue restart attempts every 10 seconds for a total of five times. If restart attempts are unsuccessful, the pump will shutdown and the LED will flash four times every six seconds. If the excessive back pressure is removed within the five restart attempts, the pump will run normally. Note: The pump must be running without fault for at least 20 seconds for the auto-restart feature to be reset to five tries. Disabling the Fault Shutdown and Auto-restart Features If the fault link is fitted when the pump...
  • Page 16: Replacement Parts

    Replacement Parts No. Description Cat. No. 1 Stack screws P51891  Inlet (hose connect) P0106  Pulsation dampener P01080  Stack plate 5 Valve plates (top and bottom) P101 6 Diaphragm/Yoke assembly P17H 7 Pump body P17G 8 Motor/Eccentric P51890 9 Pump base P018 Battery case cover...
  • Page 17: Optional Accessories

    Optional Accessories Calibrator: Cat. No. Defender Primary Standard Calibrator, 50 to 5000 ml/min, includes lead-acid battery, charger (100 to 0 V), Optimizer 110 Software, and 1-meter serial cable 717-510M Low Flow Sampling Accessories: Cat. No. Low Flow Adapter Kit includes a Constant Pressure Controller (-6CPC-10), Adjustable Low Flow Holder, and Type A Protective Tube Cover 110-500...
  • Page 18: Service Policy

    1. Call 800-752-8472 (724-941-9701 for international customers) to obtain a Return Materials Authorization (RMA) number and Product Decontamination Form. 2. Carefully package the product. Mark the RMA number on any correspondence relating to the return and on the outside of the package. 3. Ship to SKC, freight prepaid, to the following address: SKC Inc. National Service Center 863 Valley View Road Eighty Four, PA 15330 Package product carefully to prevent damage during transit. Include a contact name, phone number, shipping address, RMA number, and a brief description of the problem. For nonwarranty repairs, a purchase order number and billing address are also required. The Service Department will contact nonwarranty customers with an estimate before proceeding with repairs. Note: SKC Inc. will accept for repair any SKC product that is not contaminated with hazardous materials. Products determined to be contaminated will be returned unserviced.
  • Page 19: Warranty

    SKC INC. LIMITED ONE YEAR WARRANTY 1. SKC warrants that its instruments provided for industrial hygiene, environmental, gas analysis, and safety and health applications are free from defects in workmanship and materials under normal and proper use in accordance with operating instructions provided with said instruments. The term of this warranty begins on the date the instrument is delivered to the buyer and continues for a period of one (1) year. This warranty does not cover claims due to abuse, misuse, neglect, alteration, accident, or use in application for which the instrument was neither designed nor approved by SKC Inc. This warranty does not cover the buyer’s failure to provide for normal maintenance, or improper selection or misapplication. This warranty shall further be void if changes or adjustments to the instrument are made by other than an employee of the seller, or if the operating instructions furnished at the time of installation are not complied with.
