Operating Instructions

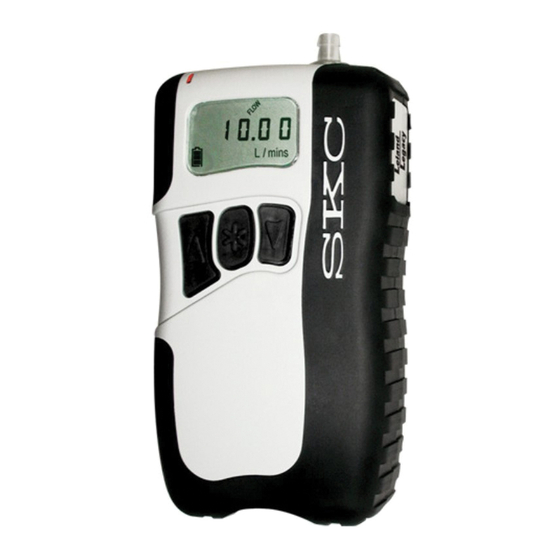

Leland Legacy
SKC Inc.
863 Valley View Road
Eighty Four, PA 15330
Form #40075 Rev 1001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leland Legacy and is the answer not in the manual?

Questions and answers

Related Manuals for SKC Leland Legacy

Summary of Contents for SKC Leland Legacy

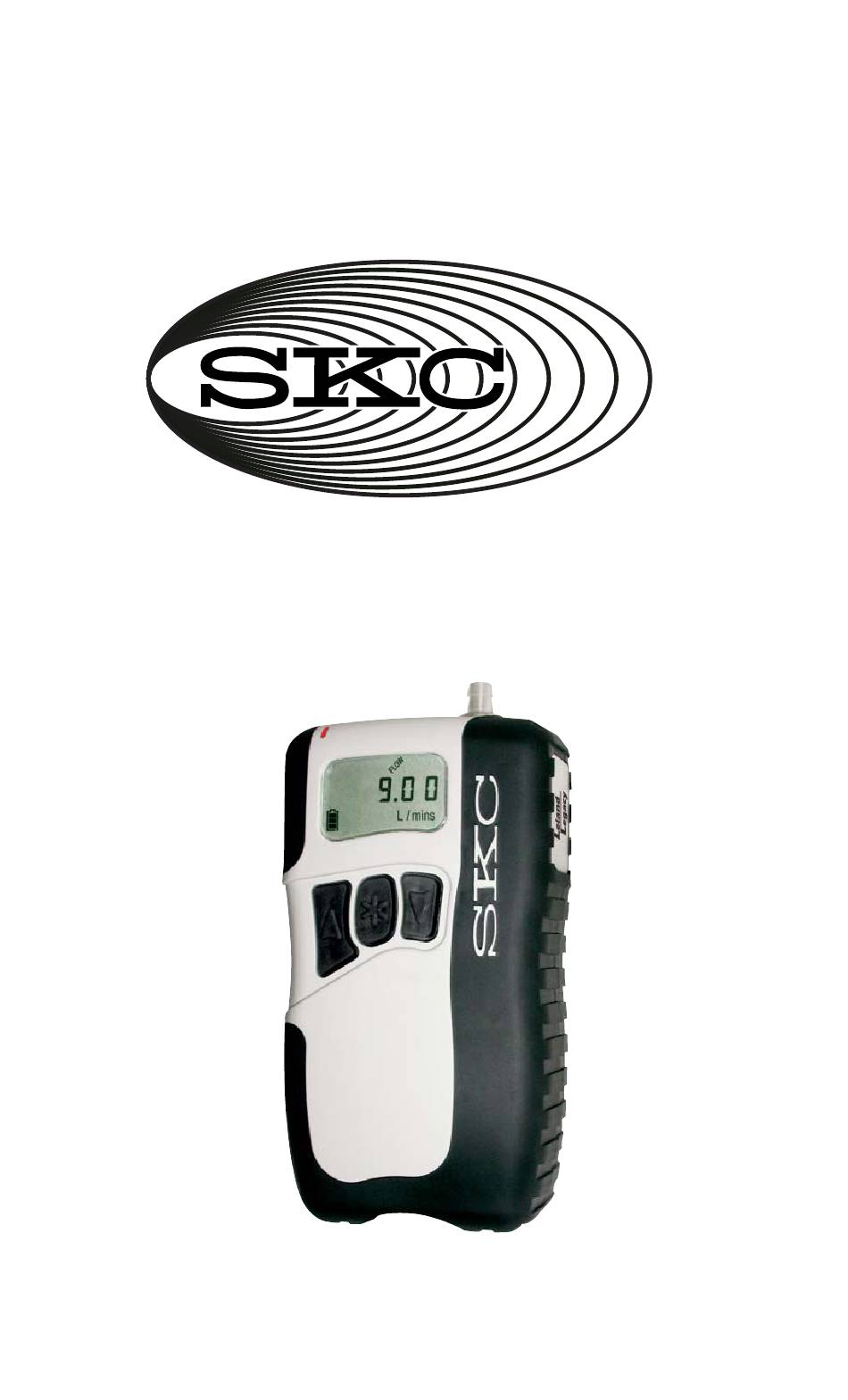

  • Page 1 Operating Instructions Leland Legacy SKC Inc. 863 Valley View Road Eighty Four, PA 15330 Form #40075 Rev 1001...
  • Page 2 ] to save new setting. To delete, follow above steps and press until 0 appears. Exit Setup. Note: When in Setup, choosing Esc instead of End will exit Setup without saving new settings. SKC Inc., 863 Valley View Road, Eighty Four, PA 15330 • www.skcinc.com...

  • Page 3: Table Of Contents

    Table of Contents Description....................1 Performance Profi le ................. 2 Battery Installation/Charging ..............4 Installing Battery Pack ....................4 Battery Status ....................... 5 Low Battery Fault ......................5 Charging the Battery ....................5 Reading the Charging Status LED on the Single Charger ........... 6 Pump Setup .....................

  • Page 4: Description

    Powered by a rechargeable Li-Ion batt ery pack, the Leland Legacy provides 24-hour run times at 10 L/min and 12 inches water back pressure. The pump’s patented internal fl ow sensor measures fl ow directly and acts as a secondary standard, constantly maintaining the set fl...

  • Page 5: Performance Profi Le

    fl ow fault icon displays and fl ashes, the pump enters Hold mode, and the pump retains historical data. Auto-restart is attempted every 20 seconds up to 10 times. Adjustable with DataTrac for Leland Legacy Software. See pages 19 and 21. Operation...
  • Page 6 ‡ Back pressure on PTFE (Tefl on) fi lters can vary within the same lot. PTFE fi lter 225-1709 contains a PMP support ring with a maximum operating temperature of 464 F (240 C). Cautions: • Use only SKC-approved parts to ensure reliable performance and to maintain any warranty. • Failure to follow warnings and cautions voids any warranty.

  • Page 7: Battery Installation/Charging

    Battery Installation/Charging Installing the Battery Pack SKC ships Leland Legacy batt ery packs separate from the pump. Once installed, completely charge the batt ery pack before operating the pump. It may be necessary to charge the batt ery a few times before maximum capacity is achieved.

  • Page 8: Battery Status

    For more information on SKC pump batt ery packs, go to www.skcinc.com instructions/1756.pdf. The batt ery pack may be kept on the SKC-approved charger for an indefi nite time.

  • Page 9: Reading The Charging Status Led On The Single Charger

    Charge status 2 sec .25 sec 2 sec The batt ery pack may be kept on SKC-approved Li-Ion batt ery chargers for an indefi nite time. Caution: • Use only the SKC-approved charger for this pump. Use of an unapproved charger may damage the battery and pump and VOID ANY WARRANTY.

  • Page 10: Pump Setup

    Pump Setup Keypad Basics Scrolls through run time data and Setup options Increases values such as fl ow rate Decreases values such as fl ow rate When pressed simultaneously, displayed item is selected or entered. Security code that must be Down pressed in sequence to enter arrow...
  • Page 11 Pump Setup If changing other parameters, do not press [ ] but continue pressing aft er End appears and the remainder of the menu items will appear. Once all changes are entered, press until End appears, then press [ ] to save new sett ings and exit Setup. Pressing [ ] when Esc appears will exit Setup without saving new sett ings.

  • Page 12: Resetting Run Time Data

    CLr does not clear previously set sampling time (ST). See Deleting a Sampling Time on page 19. Setting a Sampling Time (ST) Program the Leland Legacy from the integral keypad or a PC using DataTrac soft ware to sample from 1 to 99999 minutes. 1. Press [ ], then press the security code sequence.

  • Page 13: Setting A Delayed Start

    A delayed start can be programmed using the pump keypad or from a PC using DataTrac Soft ware. The following instructions are for keypad only. See DataTrac for Leland Legacy Operating Instructions (included on soft ware CD) for programming from a PC. Display for...

  • Page 14: Setting Pump Flow Rate

    Pump Setup Resetting Run Time Data Press [ ], then press the security code sequence. Setup will display briefl y. Press until Clr appears, then press [ Press until End appears, then press [ ] to exit Setup. The accumulated data is cleared and the pump is now in Hold.

  • Page 15: Calibration

    Calibration Verifying Flow Rate Using a Primary Standard Calibrator Before use, allow pump to equilibrate after moving it from one temperature extreme to another. Ensure the pump has run for 5 minutes before performing calibration. Connect the pump inlet to a calibrator with representative media in line (see photo below).

  • Page 16: Verifying Flow Rate Using Calchek Automatic Calibration Feature

    Use two pieces of 1/4-inch tubing, one to connect the Defender suction port to the inlet of the representative sample medium and the other to connect the medium outlet to the Leland Legacy pump inlet. Select the Defender data port: a.
  • Page 17 15. Place a fresh sampling medium in line and sample when ready. Successful single-point calibration will provide an entry in the pump history that can be viewed using DataTrac for Leland Legacy Soft ware. Allow pump to go to Sleep mode to write calibration data to pump...
  • Page 18 Multiple-point (Full) Calibration Using CalChek This type of calibration using a Defender calibrator provides fl ow correction across the complete operating range of the Leland Legacy (5 to 15 L/min) in approximately 4 minutes. The operation calibrates each fl ow rate to a primary standard.
  • Page 19 Full calibration completely clears pump history, run time parameters, and the DataTrac Scheduler. Full calibration data can be viewed and printed by going to the DataTrac Pump Manager window in DataTrac for Leland Legacy Soft ware and clicking on the View menu. Choose Calibration Info. This will display calibration results, pump serial number, and date of the last full calibration.
  • Page 20 Pump unable to achieve fl ow rate of Check pump inlet fi lter for debris and 15 L/min possibly due to a blocked inlet fl ow tube for blockage, or call SKC fi lter or fl ow tube or an air leak inside Technical Support at 724-941-9701 the pump.

  • Page 21: Sampling

    If the pump has been programmed with a PC, Prog will display in the upper left corner of the pump display. The pump will not operate Leland Legacy pump with fi lter manually. To restore manual operation, delete cassette in the program.

  • Page 22: Deleting A Datatrac Program Or Delayed Start

    Use DataTrac for Leland Legacy Soft ware to adjust the amount of time the pump will remain in fl ow fault before going to Hold (5 to 30 seconds) and the number of auto-restart att empts (0 to 25). See DataTrac for Leland Legacy Soft ware Operating Instructions (included on soft ware CD).

  • Page 23: Battery Replacement

    • Turn off the pump before removing the batt ery. Removing the batt ery while the pump is on or running may corrupt pump history. • Programs should be reloaded using DataTrac for Leland Legacy Soft ware aft er replacing the batt ery pack.

  • Page 24: Programming The Pump Using A Pc

    DataTrac for Leland Legacy Soft ware for full programmability. Install DataTrac Soft ware onto a PC and connect the PC to the Leland Legacy pump data port with the provided cable adapter. With DataTrac, you can: •...

  • Page 25: Optional Accessories

    U.S. DOT regulations specify a limit of 24 or fewer battery cells in one shipping box. If you exceed 2 Leland Legacy pumps with battery packs in one shipping box, specifi c shipping requirements must be followed. Contact SKC for more information or refer to the regulatory authority in your area.

  • Page 26: Service Policy

    SKC Inc. National Service Center 863 Valley View Road Eighty Four, PA 15330 SKC Inc. will accept for repair any SKC product that is not contaminated with hazardous materials. Products determined to be contaminated will be returned unserviced. Cautions: • Use only SKC-approved parts to ensure reliable performance and to maintain any warranty.

  • Page 27: Warranty

    5. In the event of a defect, malfunction, or other failure of the instrument not caused by any misuse or damage to the instrument while in possession of the buyer, SKC Inc. will remedy the failure or defect without charge to the buyer. The remedy will consist of service or replacement of the instrument.
