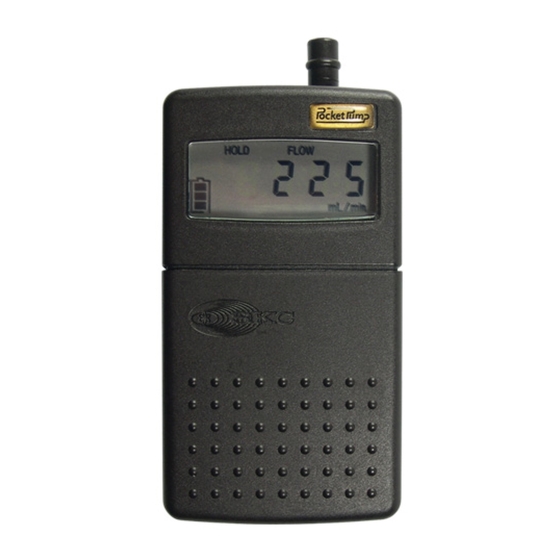

- Page 1 Pocket Pump Air Sampling Pump Operating Instructions This manual covers the following models: 210-1002MTX , 210-1003MTX...
- Page 2 Date of Purchase SKC recommends a minimum service interval of one year for this product. The first service is due one year from the date of purchase, and then at yearly intervals on this date. However, it is the responsibility of the user to perform a risk assessment to determine the necessary frequency of servicing that is required.
-
Page 3: Table Of Contents
Contents Intrinsic Safety Information ..........................2 Specifications ..............................3 General Information ............................8 Diagram of the Pocket Pump ........................10 Pocket Pump LCD Screen ...........................11 Getting Started ............................12 Operating the Pocket Pump in Constant Flow Mode ...................17 Operating the Pocket Pump in Constant Pressure Mode ................20 Through Flow Sampling with the Twin Port Pocket Pump ................22 Troubleshooting ............................26 Care of the Battery Pack ..........................28... -
Page 4: Intrinsic Safety Information
If you are unsure as to whether the Universal pump you have purchased is suitable for your environment, check with your site manager or responsible person BEFORE USE that the intrinsic safety rating on the product meets your site requirements. SKC personnel are unable to recommend the appropriate safety rating for your site. Page 2 210-PMTXM Issue L www.skcltd.com... -
Page 5: Specifications
Specifications All models 55mm 35mm • Weight: 170 g • Casing IP rating: IP20 • Constant Flow Mode: 1) Flow range: 20 - 225 ml/min 2) Compensation range: 0 - 20 inches of water at 20 - 225 ml/min flow 3) Flow compensation accuracy: ±5% of flow set point •... - Page 6 Note: Run times quoted are based on a new, fully charged battery. Note: SKC Limited reserve the right to make changes to the specification and design of this product at any time without prior notice to the end user. Page 4 210-PMTXM Issue L www.skcltd.com...
- Page 7 Specifications Pump Features SKC offer two battery charger options for the Pocket Pump MTX series pumps, a single charger (Part No. 223-229A) and a five station charger (Part No. 223-107A). When the Battery charging options battery pack is fitted into the pump, a fast charge mode is enabled providing a charge time of up to 6 hours.
- Page 8 Specifications Pump Features Indicates flow fault due to obstructed tubing or excessive filter loading. Shuts the pump down and enters ‘HOLD’ mode if the condition persists for longer than 15 seconds. Flow fault function Automatically attempts to restart every five minutes, until the flow fault condition clears in which case normal running will resume.
- Page 9 Blank Page www.skcltd.com 210-PMTXM Issue L Page 7...
-
Page 10: General Information
Twin port ATEX approved pump with NiMH battery pack 2) Care of Pocket Pump MTX Series Pumps • Always use the correct SKC battery pack and battery chargers designated for the Pocket Pump MTX series pumps. • Never run the pump long term without a tube or filter medium in place. - Page 11 For more detailed information on specific sampling methods please refer to SKC’s Step-By-Step Guide to Air Sampling (Part No. 224-G1). To obtain a free copy please contact SKC Ltd customer services on +44 (0) 1258 480188 or download at www.skcltd.com.
-
Page 12: Diagram Of The Pocket Pump
Diagram of the Pocket Pump Air Inlet Port Air Inlet Port Air Exhaust Port (210-1003MTX only) LCD Screen Inlet Particulate Filter* Battery Pack Keypad Charging Jack Socket PC Interface Slide Cover Belt Clip (Open Position) Connector *At base of inlet port Page 10 210-PMTXM Issue L www.skcltd.com... -
Page 13: Pocket Pump Lcd Screen
Pocket Pump LCD Screen Operating Indicators Flow Fault Indicator Numerals Battery Charge Status Display Units Operating Indicators PROG Active when a program is loaded into the pump memory using the DataTrac interface and software HOLD Flashes when the pump is the HOLD state Flashes when adjusting the pump flow rate during flow calibration FLOW Active when the pump LCD screen displays the flow rate... -
Page 14: Getting Started
24 hours. Use only the correct SKC chargers (Part Nos. 223-229A - single charger, 223-107A - five station charger). The chargers are supplied with mains input plugs suitable for use in the UK, Europe, USA and Australia / New Zealand. - Page 15 Getting Started When fully charged disconnect the charger jack plug from the battery pack. 2) Battery Status Indicator The battery status indicator on the pump LCD screen shows the current battery charge level: Fully charged. 3 bars displayed from approximately 100% to 75% capacity. Note: It is strongly recommended to ensure that the battery is fully charged before starting a sample run.
- Page 16 Getting Started 3) Accessing the Pump Keypad To access the pump keypad, slide the slide cover downwards until the buttons are exposed. 4) Operating the Three Button Keypad The Pocket Pump operates by pressing various sequences of the three keypad buttons: Star Button - •...
- Page 17 Getting Started power SLEEP mode, with the LCD screen switched off. To wake the pump from SLEEP mode simply press any of the three buttons and the pump LCD screen will display the pump serial number followed by the internal software version number before switching to HOLD mode.
- Page 18 Getting Started The LCD screen will briefly show the pump serial number, the internal software version number and then the elapsed run time at 0 min. 8) Switching Between Constant Flow and Constant Pressure Modes The Pocket Pump is shipped set up in Constant Flow mode. To switch from Constant Flow mode to Constant Pressure mode and vice versa the following sequence is required: With the pump running, press [ ] to switch to HOLD mode, press...
-
Page 19: Operating The Pocket Pump In Constant Flow Mode
Operating the Pocket Pump in Constant Flow Mode Constant Flow mode provides compensated flow control for single sorbent tube sampling applications. Ensure that the pump is set to Constant Flow mode before carrying out sampling. 1) Viewing the Run-Time Data Press to scroll through the available run-time data screens: Elapsed run time since last reset in minutes up to 9999 minutes (approximately 1... - Page 20 Operating the Pocket Pump in Constant Flow Mode 2) Setting and Calibrating the Pump Flow Rate Ensure that the pump is set to Constant Flow mode and that the battery is fully charged. Set up the sample train as specified in the sampling method and connect to the pump air inlet port. Connect a suitable calibrated flowmeter (such as a chek-mate or rotameter) to the inlet of the sample train.
- Page 21 An alternative method to Constant Pressure mode for multiple tube sampling is to use a Constant Pressure Controller (CPC - SKC Part No. 224-26CPC-10). The CPC is a device that generates a constant back pressure of 10 inches of water at the outlet of the connected multiple tube holder.
-
Page 22: Operating The Pocket Pump In Constant Pressure Mode
Operating the Pocket Pump in Constant Pressure Mode Constant Pressure mode provides built in constant pressure control for multiple tube sampling applications. It is recommended to start with a pump back pressure setting of 10 inches of water. Once the pump back pressure is set, the tube flow rates are set using the needle valves built into the multiple tube holder. - Page 23 Operating the Pocket Pump in Constant Pressure Mode 2) Setting the Pump Back Pressure Ensure that the pump is set to Constant Pressure mode and that the battery is fully charged. Set up the sample train as specified in the sampling method and connect to the pump air inlet port. Press [ ] to start the pump running.
-
Page 24: Through Flow Sampling With The Twin Port Pocket Pump
Through Flow Sampling with the Twin Port Pocket Pump The 210-1003MTX twin port Pocket Pump is designed for through flow applications such as bag sampling. Refer to the pump diagram on page 8 for identification of the inlet and outlet ports. 1) Constant flow mode sampling Constant flow mode compensation performance: The pump flow rate will be within ±5% at flow rates up to 200 ml/min, inlet back pressure up to 20 inches of water and outlet pressure up to 3.0 inches of water... - Page 25 Through Flow Sampling with the Twin Port Pocket Pump Observe the indicated flow rate reading of the flowmeter. Use the and buttons to adjust the pump flow rate up or down, to precisely calibrate the required flow rate. When the flow rate has been satisfactorily calibrated press the button to return to RUN mode.
- Page 26 Through Flow Sampling with the Twin Port Pocket Pump 2) Constant pressure mode sampling With the Pocket Pump set to constant pressure mode it is possible to obtain a stable pump flow rate with variable outlet back pressures (up to 30 inches of water). An adjustable flow restrictor at the pump inlet is required to set the desired flow rate.
- Page 27 The pump run-time data is recorded during the back pressure setting and flow calibration operations. Before starting a sample run reset the run-time data. Contact SKC Limited for advice on specific constant pressure mode sampling applications. www.skcltd.com 210-PMTXM Issue L...
-
Page 28: Troubleshooting
Sample tube back pressure too high. Try a lower flow rate and/or a less Pump cannot acheive required restrictive sample tube if the sampling method being used allows this. flow rate • Pump mechanism leaking. Contact SKC Ltd customer services for assistance. Page 26 210-PMTXM Issue L www.skcltd.com... - Page 29 Troubleshooting Possible Fault Corrective Action • Battery pack not fully charged before starting sample run. Ensure battery pack is fully charged before starting a sample run. Pump stops due to low battery • Battery pack has reduced capacity as it nears end of life. Replace the before the end of the required battery pack.
-
Page 30: Care Of The Battery Pack
Full battery capacity will be achieved after 2 to 3 full charge / full discharge cycles. • Use only SKC approved charger designated for this battery pack. Use of a non-SKC approved charger may impair battery performance or even cause irreparable damage, and will invalidate the battery pack warranty. - Page 31 Care of the Battery Pack Battery Testing 1. Connect SKC approved charger to battery pack. If charger indicator LED illuminates, battery pack charger input is ok. If charger LED does not illuminate, battery pack input fuse is blown - Replace battery pack.
-
Page 32: Pocket Pump Mtx Components
Pocket Pump MTX Components Page 30 210-PMTXM Issue L www.skcltd.com... -
Page 33: Pocket Pump Mtx Replacement Parts
P20129MTX Battery pack 2.4V 1.0Ah NiMH SKC recommend that our air sampling pumps are regularly serviced by one of our Authorised Service Centres. Due to the safety implications associated with the incorrect repair of ATEX certified intrinsically safe products for use in potentially explosive atmospheres, it is our policy to only supply the complete range of replacement parts to our Authorised Service Centres who are trained in the service and repair of these products. -
Page 34: Pocket Pump Accessories
Pocket Pump Accessories Part No. Description Key Accessories Single battery charger / mains adaptor 100-240V ~ 50/60Hz supply with UK/EU/US/AUS mains 223-229A plugs 223-107A Five station battery charger 100-240V ~ 50/60Hz supply with UK/EU/US/AUS mains plugs 375-00205 chek-mate flowmeter 20 - 500 ml/min accuracy ±1% of reading (±2.5% at 20 to 50 ml/min) 393-002025 Rotameter 20 - 250 ml/min accuracy ±2.5% of full scale 877-90K... - Page 35 810-722 Tube tip breaker If the required item is not listed, contact your supplier or SKC sales on +44 (0) 1258 480188. SKC provide an extensive range of sampling media, including filters, sorbent tubes and impingers. The full range can be found in the current SKC catalogue and at www.skcltd.com www.skcltd.com...
-
Page 36: Pocket Pump Datatrac Software
Pocket Pump DataTrac Software With the optional DataTrac Software accessory, the Pocket Pump is programmable using a PC. DataTrac simplifies chain-of-custody reporting by allowing users the option of programming a complete running sequence, delayed start, timed stop, and intermittent sampling, all at different flow rates. Time and sample volume are continuously updated in memory. - Page 37 Pocket Pump DataTrac Software • Download pump run-time data and history to a PC. • Create chain-of-custody information using the sample set-up feature. • Print a history file containing pump run-time data. • Print a worker exposure profile containing run-time data and the pump’s history. DataTrac System Requirements •...
-
Page 38: Intrinsic Safety Certification
Intrinsic Safety Certification Page 36 210-PMTXM Issue L www.skcltd.com... - Page 39 Intrinsic Safety Certification www.skcltd.com 210-PMTXM Issue L Page 37...
- Page 40 Intrinsic Safety Certification Page 38 210-PMTXM Issue L www.skcltd.com...
- Page 41 Intrinsic Safety Certification www.skcltd.com 210-PMTXM Issue L Page 39...
- Page 42 Intrinsic Safety Certification Page 40 210-PMTXM Issue L www.skcltd.com...
- Page 43 Intrinsic Safety Certification www.skcltd.com 210-PMTXM Issue L Page 41...
- Page 44 Intrinsic Safety Certification Page 42 210-PMTXM Issue L www.skcltd.com...
- Page 45 Intrinsic Safety Certification www.skcltd.com 210-PMTXM Issue L Page 43...
- Page 46 Intrinsic Safety Certification Page 44 210-PMTXM Issue L www.skcltd.com...
- Page 47 Intrinsic Safety Certification www.skcltd.com 210-PMTXM Issue L Page 45...
- Page 48 Intrinsic Safety Certification Page 46 210-PMTXM Issue L www.skcltd.com...
- Page 49 Intrinsic Safety Certification www.skcltd.com 210-PMTXM Issue L Page 47...
- Page 50 Intrinsic Safety Certification Page 48 210-PMTXM Issue L www.skcltd.com...
- Page 51 Intrinsic Safety Certification www.skcltd.com 210-PMTXM Issue L Page 49...
- Page 52 Intrinsic Safety Certification Page 50 210-PMTXM Issue L www.skcltd.com...
- Page 53 Blank Page www.skcltd.com 210-PMTXM Issue L Page 51...
-
Page 54: Warranty Information
This warranty DOES NOT cover any claims due to abuse, misuse, neglect, alteration, or accident, or use in application for which the instrument was either not designed or not approved by SKC, or, due to the buyer’s failure to maintain normal maintenance, improper selection or misapplication. The warranty also DOES NOT cover any claims due to the use of a non-SKC approved charger to charge the battery pack. - Page 55 The remedy will consist of service or replacement of the instrument, or refund of the purchase price, at the option of SKC. However, SKC will not elect refund unless it is unable to provide replacement and repair is not commercially practicable.
- Page 56 A member of the SKC global group of companies SKC Limited 11 Sunrise Park, Higher Shaftesbury Road, Blandford Forum, Dorset DT11 8ST United Kingdom T: +44 (0) 1258 480188 F: +44 (0) 1258 480184 E: info@skcltd.com W: www.skcltd.com...
