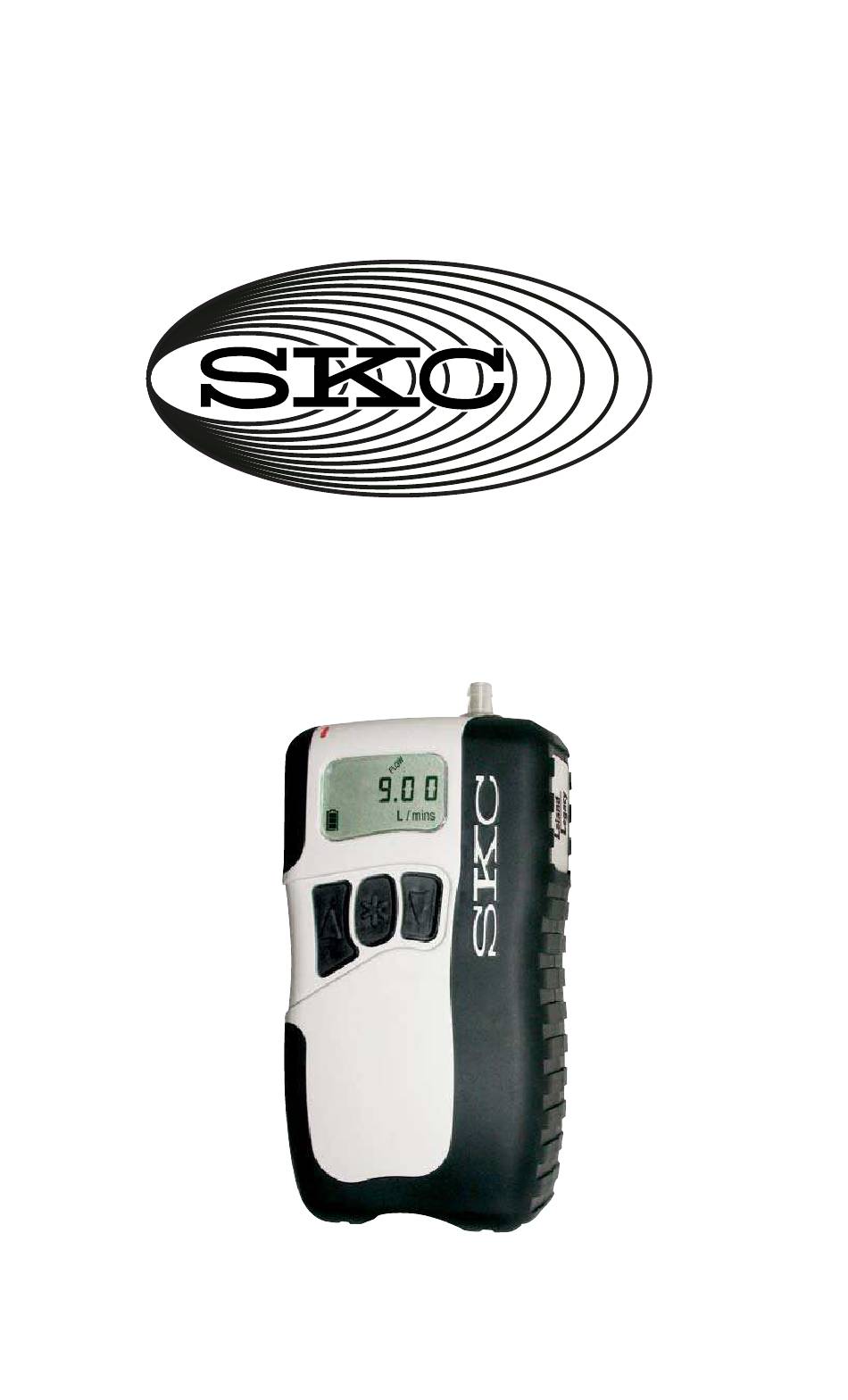

Operating Instructions
Leland Legacy
SKC Inc.
863 Valley View Road
Eighty Four, PA 15330
Form 40075 Rev 1407

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Leland Legacy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SKC Leland Legacy

  • Page 1 Operating Instructions Leland Legacy SKC Inc. 863 Valley View Road Eighty Four, PA 15330 Form 40075 Rev 1407...
  • Page 2  until End displays then press [] to save new setting. To delete, follow above steps and press  until 0 appears. Exit Setup. Note: When in Setup, choosing Esc instead of End will exit Setup without saving new settings. SKC Inc., 863 Valley View Road, Eighty Four, PA 15330 • www.skcinc.com...
  • Page 3: Table Of Contents

    Table of Contents Description....................1 Performance Profi le ................. 2 Battery Charging..................4 Charging the Battery ....................4 Reading the Charging Status LED on the Single Charger ........... 5 Determining Pump Battery Status ................5 Low Battery Fault ......................5 Pump Setup .....................
  • Page 4: Description

    Powered by a rechargeable Li-Ion bat ery pack, the Leland Legacy provides 24-hour run times at 10 L/min and 12 inches water back pressure. The pump’s patented internal fl ow sensor measures fl ow directly and acts as a secondary standard, constantly maintaining the set fl...
  • Page 5: Performance Profi Le

    fl ow fault icon displays and fl ashes, the pump enters Hold mode, and the pump retains historical data. Auto-restart is attempted every 20 seconds up to 10 times. Adjustable with DataTrac for Leland Legacy Software. See pages 18 and 20. Flow Control: An internal isothermal fl...
  • Page 6 ‡ Back pressure on PTFE fi lters can vary within the same lot. PTFE fi lter Cat. No. 225-1709 contains a PMP support ring with a maximum operating temperature of 464 F (240 C). Cautions: • Use only SKC-approved parts to ensure reliable performance and to maintain any warranty. • Failure to follow warnings and cautions voids any warranty.
  • Page 7: Battery Charging

    For more information on SKC pump bat ery packs, go to www.skcinc.com/instructions/1756.pdf. The bat ery pack may be kept on the SKC-approved charger for an indefi nite time.
  • Page 8: Reading The Charging Status Led On The Single Charger

    2 sec .25 sec 2 sec Charge status The bat ery pack may be kept on SKC-approved Li-Ion bat ery chargers for an indefi nite time. Caution: • Use only the SKC-approved charger for this pump. Use of an unapproved charger may damage the battery and pump and VOID ANY WARRANTY.
  • Page 9: Pump Setup

    Pump Setup Keypad Basics  Scrolls through run time data and Setup options  Increases values such as fl ow rate  Decreases values such as fl ow rate [] When pressed simultaneously, displayed item is selected or entered.  Security code that must be ...
  • Page 10 Pump Setup If changing other parameters, do not press [] but continue pressing  at er End appears and the remainder of the menu items will appear. Once all changes are entered, press  until End appears, then press [] to save new set ings and exit Setup. Pressing [] when Esc appears will exit Setup without saving new set ings.
  • Page 11: Resetting Run Time Data

    (ST). See Deleting a Sampling Time on page 18. Setting a Sampling Time (ST) Program the Leland Legacy from the integral keypad or a PC using DataTrac sot ware to sample from 1 to 99,999 minutes. 1. Press [], then press the security code  in sequence.
  • Page 12: Setting A Delayed Start

    A delayed start can be programmed using the pump keypad or from a PC using DataTrac Sot ware. The following instructions are for keypad only. See DataTrac for Leland Legacy Operating Instructions (included on sot ware CD) for programming from a PC. Display for...
  • Page 13: Setting Pump Flow Rate

    Pump Setup Setting Pump Flow Rate Press [], then press the security code  in sequence. The fl ow rate and Set will fl ash on the LCD. Press  to increase fl ow rate. Press  to decrease fl ow rate. The pump will run while fl ow is set. Once the desired fl...
  • Page 14: Calibration

    Calibration Verifying Flow Rate Using a Primary Standard Calibrator Before use, allow pump to equilibrate after moving it from one temperature extreme to another. Ensure the pump has run for 5 minutes before performing calibration. Connect the pump inlet to a calibrator with representative media in line (see photo below).
  • Page 15: Verifying Flow Rate Using Calchek Automatic Calibration Feature

    Use two pieces of 1/4-inch tubing, one to connect the Defender suction port to the inlet of the representative sample medium and the other to connect the medium outlet to the Leland Legacy pump inlet. Select the Defender data port: a.
  • Page 16 15. Place a fresh sampling medium in line and sample when ready. Successful single-point calibration will provide an entry in the pump history that can be viewed using DataTrac for Leland Legacy Sot ware. Allow pump to go to Sleep mode to write calibration data to pump...
  • Page 17 Multiple-point (Full) Calibration Using CalChek This type of calibration using a Defender calibrator provides fl ow correction across the complete operating range of the Leland Legacy (5 to 15 L/min) in approximately 4 minutes. The operation calibrates each fl ow rate to a primary standard.
  • Page 18 Full calibration completely clears pump history, run time parameters, and the DataTrac Scheduler. Full calibration data can be viewed and printed by going to the DataTrac Pump Manager window in DataTrac for Leland Legacy Sot ware and clicking on the View menu. Choose Calibration Info. This will display calibration results, pump serial number, and date of the last full calibration.
  • Page 19 Troubleshooting Correction required too large. A gross Perform a full calibration. If this fails, mismatch between the fl ow setting on contact SKC Technical Support at the pump and the reading generated by skctech@skcinc.com. the Defender calibrator has occurred. Could not get a successful single-point Try the calibration again.
  • Page 20: Sampling

    If the pump has been programmed with a PC, Prog will display in the upper let corner of the pump display. The pump will not operate Leland Legacy pump with fi lter manually. To restore manual operation, delete cassette in the program.
  • Page 21: Deleting A Datatrac Program Or Delayed Start

    Use DataTrac for Leland Legacy Sot ware to adjust the amount of time the pump will remain in fl ow fault before going to Hold (5 to 30 seconds) and the number of auto-restart at empts (0 to 25). See DataTrac for Leland Legacy Sot ware Operating Instructions (included on sot ware CD).
  • Page 22: Battery Replacement

    • Turn off the pump before removing the bat ery. Removing the bat ery while the pump is on or running may corrupt pump history. • Programs should be reloaded using DataTrac for Leland Legacy Sot ware at er replacing the bat ery pack.
  • Page 23: Programming The Pump Using A Pc

    DataTrac for Leland Legacy Sot ware for full programmability. Install DataTrac Sot ware onto a PC and connect the PC to the Leland Legacy pump data port with the provided cable adapter. With DataTrac, you can: •...
  • Page 24: Optional Accessories

    • * Li-Ion Battery Shipment Rechargeable lithium-ion batteries for use with SKC sample pumps have been tested in accordance with the UN Manual and are proven to meet requirements of each test in the UN Manual of Test Criteria, Part II, subsection 38.3. They have a watt-hour (Wh) rating below 100.
  • Page 25: Warranty

    SKC Limited Warranty and Return Policy SKC products are subject to the SKC Limited Warranty and Return Policy, which provides SKC’s sole liability and the buyer’s exclusive remedy. To view the complete SKC Limited Warranty and Return Policy, go to ht p:// www.skcinc.com/warranty.asp.
