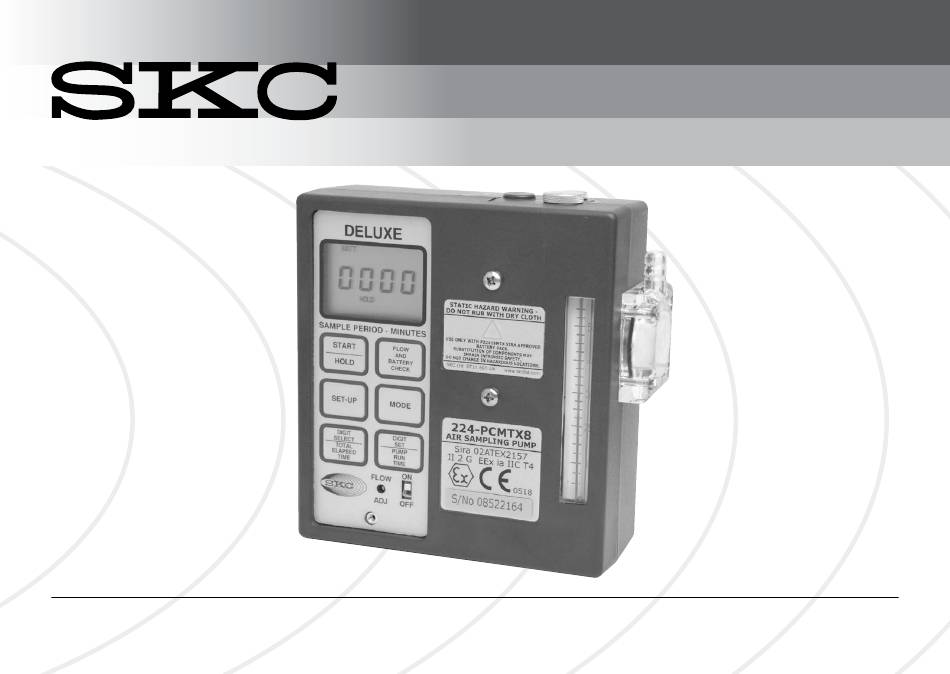

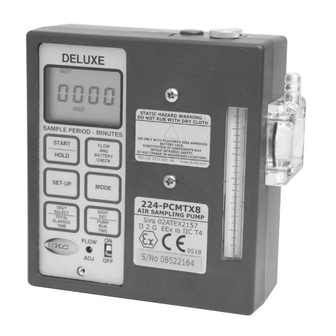

- Page 1 Universal Air Sampling Pump Operating Instructions This manual covers the following models: 224-44MTX, 224-PCMTX4, 224-PCMTX8...
- Page 2 Date of Purchase SKC recommends a minimum service interval of one year for this product. The first service is due one year from the date of purchase, and then at yearly intervals on this date. However, it is the responsibility of the user to perform a risk assessment to determine the necessary frequency of servicing that is required.
-
Page 3: Table Of Contents
Contents Intrinsic Safety Information ..........................2 Specifications ..............................4 General Information ............................8 Diagram of the Universal MTX Pump ......................10 Pump Controls Layout ..........................12 Getting Started ............................13 Operating the Timer (224-PCMTX8 Only) .....................16 Low Flow Sampling .............................20 Troubleshooting ............................22 Care of the Battery Pack ..........................24 Universal MTX Pump Components ......................26 Universal MTX Pump Replacement Parts .....................27 Universal MTX Pump Accessories........................28... -
Page 4: Intrinsic Safety Information
If you are unsure as to whether the Universal pump you have purchased is suitable for your environment, check with your site manager or responsible person BEFORE USE that the intrinsic safety rating on the product meets your site requirements. SKC personnel are unable to recommend the appropriate safety rating for your site. Page 2 224-UMTXM Issue K www.skcltd.com... - Page 5 Blank Page www.skcltd.com 224-UMTXM Issue K Page 3...
-
Page 6: Specifications
Specifications All models 131mm 57mm • Weight: 915 g • Casing IP rating: IP20 • Flow range: 1000 - 4000 ml/min (constant flow operation) 5 - 500 ml/min with adapter (constant pressure operation) • Flow control: ±5% set point constant flow • Flow indicator: Scale range 0.5 - 5.5 l/min • Battery pack: NiMH rechargeable, 2.0 Ah, 4.8 V • Storage &... - Page 7 Delayed start up to 9999 minutes Timed shut down Note: SKC Limited reserve the right to make changes to the specification and design of this product at any time without prior notice to the end user. www.skcltd.com 224-UMTXM Issue K...
- Page 8 Specifications Pump Features All Models SKC offer two battery charger options for the Universal MTX series pumps, a single charger (Part No. 223-203A) and a five station charger (Part No. 223-103A). Both charger Battery charging options models provide optimum charging of the NiMH battery packs used in the Universal MTX series pumps, based on a timed (16 hour) constant current charging phase followed by a switch to a trickle charging rate to prevent overcharging.
- Page 9 Specifications Pump Features 224-PCMTX4 & 224-PCMTX8 Only LCD screen indicates elapsed sample run time in minutes up to 9999 minutes (approximately one week). Also displays operating mode, battery condition and flow fault LCD screen condition. Elapsed sample time is retained on screen in the event of low battery or flow fault shutdown.
-
Page 10: General Information
Deluxe pump with full timer control and timer display. 2) Care of Universal MTX Series Pumps • Always use the correct SKC batteries and battery chargers designated for the Universal MTX series pumps. • Never run the pump long term without a tube or filter medium in place. - Page 11 This instruction manual provides the necessary information to set up and operate the Universal MTX series pumps. For more detailed information on specific sampling methods please refer to SKC’s Step-By-Step Guide to Air Sampling (Part No. 224-G1). To obtain a free copy please contact SKC Ltd customer services on +44 (0) 1258 480188 or download at www.skcltd.com.
-
Page 12: Diagram Of The Universal Mtx Pump
Diagram of the Universal MTX Pump Page 10 224-UMTXM Issue K www.skcltd.com... - Page 13 Key to Pump Diagram 1. LCD screen 14. Filter O ring seal 2. Flow and battery check key 15. Inlet protection filter 3. START / HOLD key 16. Inlet protection filter housing 4. SET-UP key 17. Air inlet 5. MODE key 18.
-
Page 14: Pump Controls Layout
Pump Controls Layout Standard Control Intermediate Control Deluxe Control Panel : 224-44MTX Panel : 224-PCMTX4 Panel : 224-PCMTX8 INTERMEDIATE DELUXE BATT SAMPLE RUNNING BATT SAMPLE RUNNING SAMPLE PERIOD - MINUTES SAMPLE PERIOD - MINUTES FLOW FLOW START START BATTERY BATTERY... -
Page 15: Getting Started
1) Charging the Battery Pack Prior to first use the battery pack should be fully charged, ideally overnight. The Universal MTX series pumps must only be charged using the correct SKC chargers (Part Nos. 223-203A - single charger, 223-103A - five station charger). - Page 16 Getting Started 4) Flow Adjust Screw (No. 8) Use the small bladed screwdriver attachment of the supplied toolkit to turn the flow adjust screw. To increase the flow rate turn clockwise. The span of the flow adjust screw is 12 turns. DO NOT FORCE the flow adjust screw, and ensure the screwdriver end is securely located in the adjust screw slot.
- Page 17 Getting Started APPLICABLE TO MODEL 224-PCMTX8 ONLY 7) SET-UP Key (No. 4) With the pump in hold mode, press the SET-UP key to enter setup mode. The LCD screen will show the legend SET UP DELAYED START and the right hand digit will flash. In the setup mode the delayed start time, sample time and run time can be entered.
-
Page 18: Operating The Timer (224-Pcmtx8 Only)
Operating the Timer (224-PCMTX8 Only) The timer function features three settings used to achieve the various modes of operation: 1. DELAYED START - The time period in minutes that will elapse prior to the pump starting to run. Setting this value to zero disables the delayed start function. 2. - Page 19 Operating the Timer (224-PCMTX8 Only) 7. Press the DIGIT SELECT key to select the third digit from the right. 8. Press the DIGIT SET key to increment the digit to 4. The digits should now read 0480. 9. Note that if a SAMPLE PERIOD time is entered, but the PUMP PERIOD is left at 0000, the pump will run continuously for the duration of the SAMPLE PERIOD.
- Page 20 Operating the Timer (224-PCMTX8 Only) 9. Press the MODE key to cycle to the SAMPLE PERIOD setting option. The right hand digit will be flashing. 10. The timer is set in minute values. Calculate the required sample period in minutes - 8 hours = 480 minutes. Thefore the right hand digit should set to 0.
- Page 21 Operating the Timer (224-PCMTX8 Only) Example: 8 hours running over a period of 24 hours 1. Switch on the pump and enter SET-UP mode. A DELAYED START time can be entered if required. 2. Press the MODE key to cycle to the SAMPLE PERIOD setting and enter 1440 minutes (24 hours) using the DIGIT SELECT and DIGIT SET keys.
-
Page 22: Low Flow Sampling
Low Flow Sampling The standard compensated flow range of the Universal MTX series pumps is 1000 to 4000 ml/min. To operate at flows in the range 5 to 500 ml/min an optional low flow adapter / tube holder is required. Low flow adapters are available for simultaneous sampling using one, two, three or four sample tubes (refer to the sampling accessories guide on pages 26 and 27 for details). - Page 23 Low Flow Sampling Stand the pump upright on a level surface and set the pump running. Set the pump flow rate to approximately 1.5 l/min. The built in flow indicator rotameter can be used to make this setting as only an approximate flow rate is required.
-
Page 24: Troubleshooting
Troubleshooting Possible Fault Corrective Action • Check the battery charger by trying it with a different battery pack. Replace the battery charger if required. Battery pack will not charge • Check the battery pack by connecting it to a known good battery charger. - Page 25 Troubleshooting Possible Fault Corrective Action • Battery pack not fully charged before starting sample run. Ensure battery pack is fully charged before starting a sample run. Pump stops due to low battery • Battery pack has reduced capacity as it nears end of life. Replace the before the end of the required battery pack.
-
Page 26: Care Of The Battery Pack
• Full battery capacity will be acheived after 2 to 3 full charge / full discharge cycles. • Use only SKC approved charger designated for this battery pack. Use of a non-SKC approved charger may impair battery performance or even cause irrepairable damage, and will invalidate the battery pack warranty. - Page 27 This means that they must be collected and treated separately from other waste. • Please ensure that any end-of-life SKC battery packs are collected and recycled or disposed of correctly. www.skcltd.com...
-
Page 28: Universal Mtx Pump Components
Universal MTX Pump Components Page 26 224-UMTXM Issue K www.skcltd.com... -
Page 29: Universal Mtx Pump Replacement Parts
P22417H P22417C SKC recommend that our air sampling pumps are regularly serviced by one of our Authorised Service Centres. Due to the safety implications associated with the incorrect repair of ATEX certified intrinsically safe products for use in potentially explosive atmospheres, it is our policy to only supply the complete range of replacement parts to our Authorised Service Centres who are trained in the service and repair of these products. -
Page 30: Universal Mtx Pump Accessories
Universal MTX Pump Accessories Part No. Description Key Accessories 223-203A Single battery charger 100-240V ~ 50/60Hz supply with UK/EU/US/AUS mains plugs 223-103A Five station battery charger 100-240V ~ 50/60Hz supply with UK/EU/US/AUS mains plugs 223-305B Battery eliminator 230V ~ 50Hz supply with EU 2 pin mains plug 223-305C Battery eliminator 230V ~ 50Hz supply with UK 3 pin mains plug 375-00205... - Page 31 810-722 Tube tip breaker If the required item is not listed, contact your supplier or SKC sales on +44 (0) 1258 480188. SKC provide an extensive range of sampling media, including filters, sorbent tubes and impingers. The full range can be found in the current SKC catalogue and at www.skcltd.com www.skcltd.com...
-
Page 32: Intrinsic Safety Certification
Intrinsic Safety Certification Page 30 224-UMTXM Issue K www.skcltd.com... - Page 33 Intrinsic Safety Certification www.skcltd.com 224-UMTXM Issue K Page 31...
- Page 34 Intrinsic Safety Certification Page 32 224-UMTXM Issue K www.skcltd.com...
- Page 35 Intrinsic Safety Certification www.skcltd.com 224-UMTXM Issue K Page 33...
- Page 36 Intrinsic Safety Certification Page 34 224-UMTXM Issue K www.skcltd.com...
- Page 37 Intrinsic Safety Certification www.skcltd.com 224-UMTXM Issue K Page 35...
-
Page 38: Warranty Information
This warranty DOES NOT cover any claims due to abuse, misuse, neglect, alteration, or accident, or use in application for which the instrument was either not designed or not approved by SKC, or, due to the buyer’s failure to maintain normal maintenance, improper selection or misapplication. The warranty also DOES NOT cover any claims due to the use of a non-SKC approved charger to charge the battery pack. - Page 39 The remedy will consist of service or replacement of the instrument, or refund of the purchase price, at the option of SKC. However, SKC will not elect refund unless it is unable to provide replacement and repair is not commercially practicable.
- Page 40 A member of the SKC global group of companies SKC Limited 11 Sunrise Park, Higher Shaftesbury Road, Blandford Forum, Dorset DT11 8ST United Kingdom T: +44 (0) 1258 480188 F: +44 (0) 1258 480184 E: info@skcltd.com W: www.skcltd.com...
