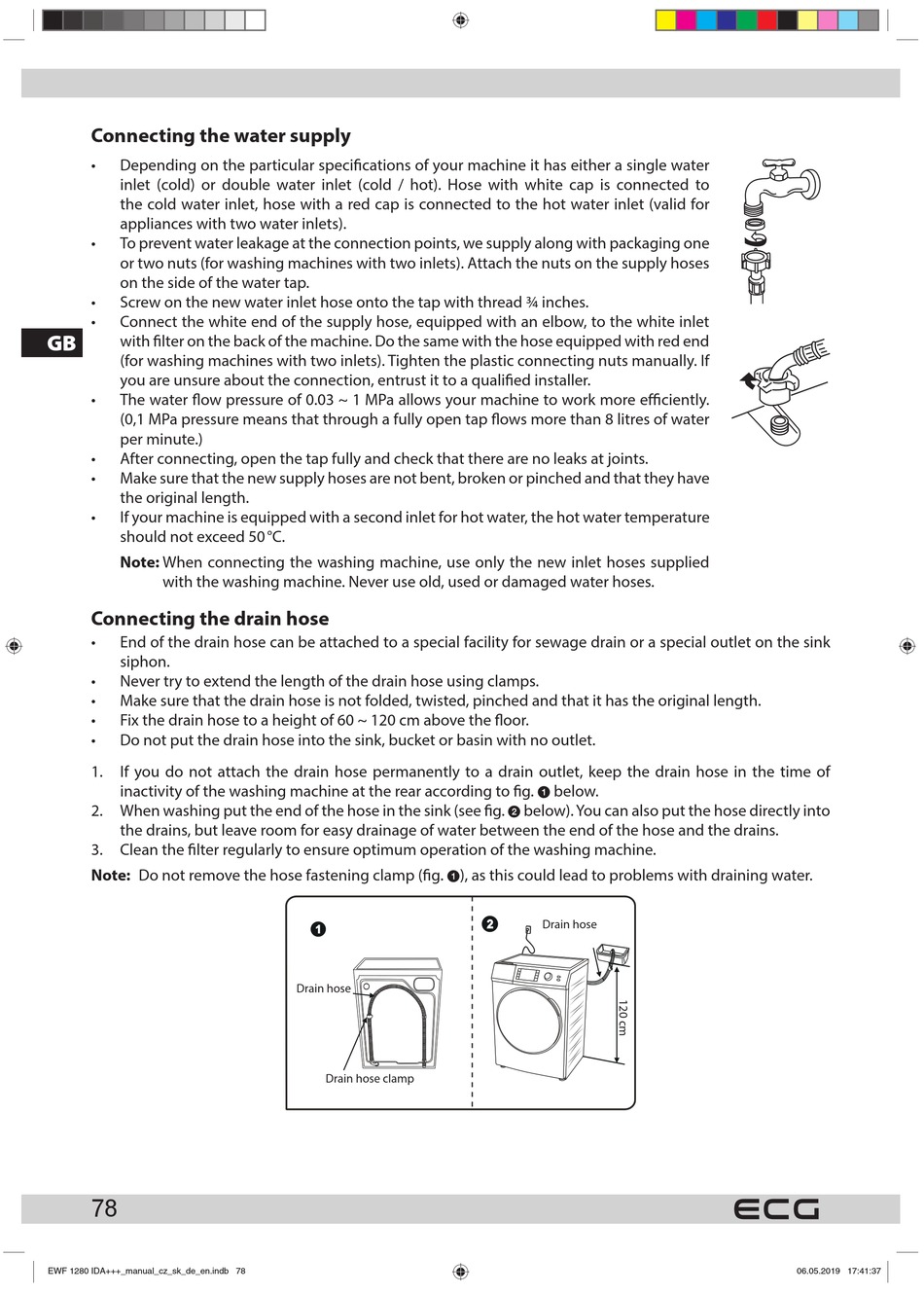

Connecting the water supply

• Depending on the particular specifi cations of your machine it has either a single water
inlet (cold) or double water inlet (cold / hot). Hose with white cap is connected to
the cold water inlet, hose with a red cap is connected to the hot water inlet (valid for
appliances with two water inlets).
• To prevent water leakage at the connection points, we supply along with packaging one
or two nuts (for washing machines with two inlets). Attach the nuts on the supply hoses
on the side of the water tap.
• Screw on the new water inlet hose onto the tap with thread ¾ inches.
• Connect the white end of the supply hose, equipped with an elbow, to the white inlet
GB with fi lter on the back of the machine. Do the same with the hose equipped with red end
(for washing machines with two inlets). Tighten the plastic connecting nuts manually. If
you are unsure about the connection, entrust it to a qualifi ed installer.
• The water fl ow pressure of 0.03 ~ 1 MPa allows your machine to work more effi ciently.
(0,1 MPa pressure means that through a fully open tap fl ows more than 8 litres of water
per minute.)
• After connecting, open the tap fully and check that there are no leaks at joints.
• Make sure that the new supply hoses are not bent, broken or pinched and that they have
the original length.
• If your machine is equipped with a second inlet for hot water, the hot water temperature
should not exceed 50 °C.
Note: When connecting the washing machine, use only the new inlet hoses supplied
with the washing machine. Never use old, used or damaged water hoses.

Connecting the drain hose

• End of the drain hose can be attached to a special facility for sewage drain or a special outlet on the sink
siphon.
• Never try to extend the length of the drain hose using clamps.
• Make sure that the drain hose is not folded, twisted, pinched and that it has the original length.
• Fix the drain hose to a height of 60 ~ 120 cm above the fl oor.
• Do not put the drain hose into the sink, bucket or basin with no outlet.
1. If you do not attach the drain hose permanently to a drain outlet, keep the drain hose in the time of
inactivity of the washing machine at the rear according to fi g.
2. When washing put the end of the hose in the sink (see fi g.
the drains, but leave room for easy drainage of water between the end of the hose and the drains.
3. Clean the fi lter regularly to ensure optimum operation of the washing machine.
Note: Do not remove the hose fastening clamp (fi g.
78
EWF 1280 IDA+++_manual_cz_sk_de_en.indb 78
), as this could lead to problems with draining water.
1
Drain hose
Drain hose clamp
below.
1
below). You can also put the hose directly into
2
Drain hose
