TC-1425-IP
Rev. B, February 2021
http://www.commscope.com
About this manual

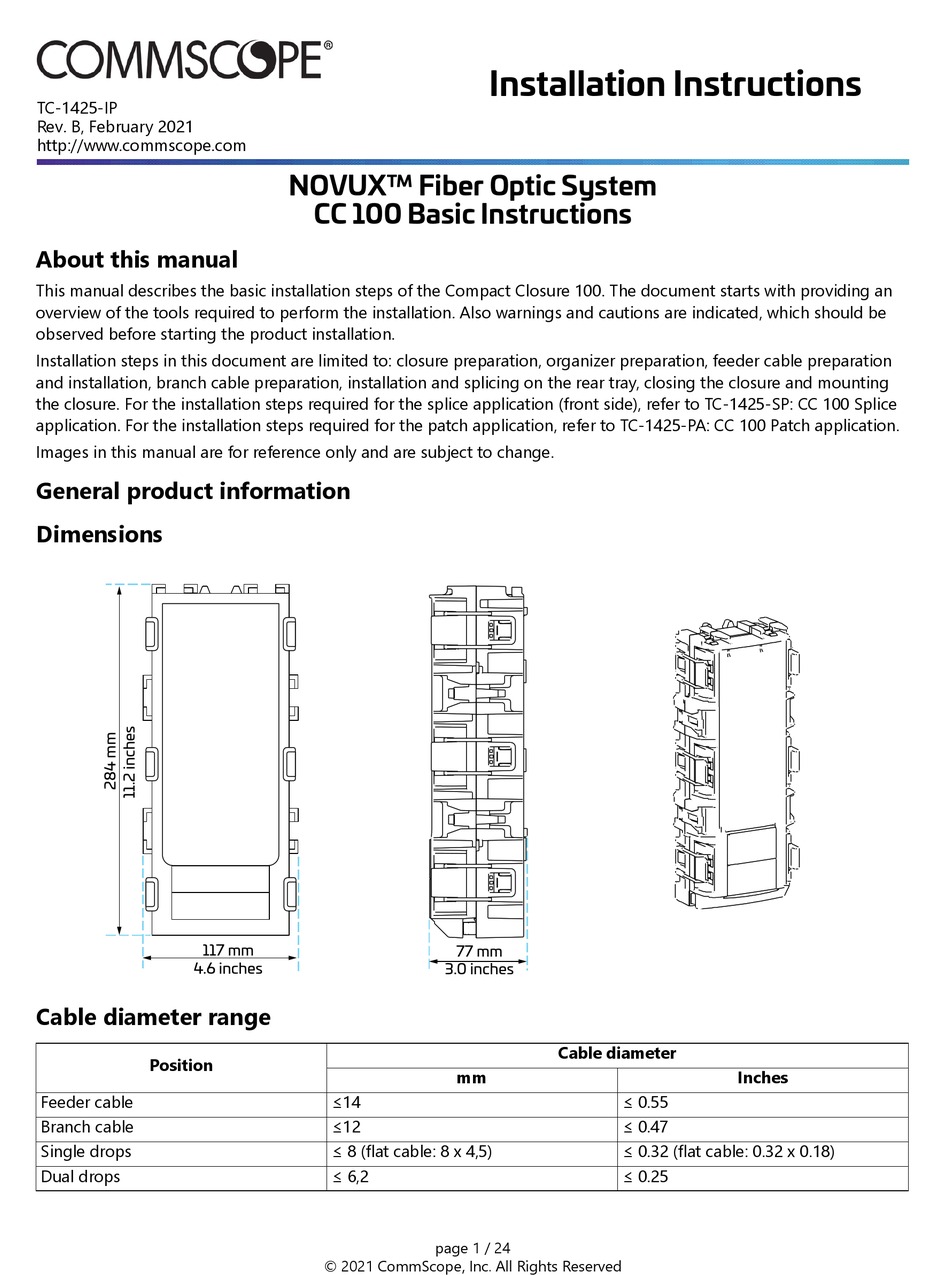

This manual describes the basic installation steps of the Compact Closure 100. The document starts with providing an
overview of the tools required to perform the installation. Also warnings and cautions are indicated, which should be
observed before starting the product installation.
Installation steps in this document are limited to: closure preparation, organizer preparation, feeder cable preparation
and installation, branch cable preparation, installation and splicing on the rear tray, closing the closure and mounting
the closure. For the installation steps required for the splice application (front side), refer to TC-1425-SP: CC 100 Splice
application. For the installation steps required for the patch application, refer to TC-1425-PA: CC 100 Patch application.
Images in this manual are for reference only and are subject to change.
General product information
Dimensions
117 mm
4.6 inches
Cable diameter range
Position
Feeder cable
Branch cable
Single drops
Dual drops
NOVUX™ Fiber Optic System
CC 100 Basic Instructions
77 mm
3.0 inches
mm
≤14
≤12
≤ 8 (flat cable: 8 x 4,5)
≤ 6,2
page 1 / 24
© 2021 CommScope, Inc. All Rights Reserved
Installation Instructions
Cable diameter
≤ 0.55
≤ 0.47
≤ 0.32 (flat cable: 0.32 x 0.18)
≤ 0.25
Inches
