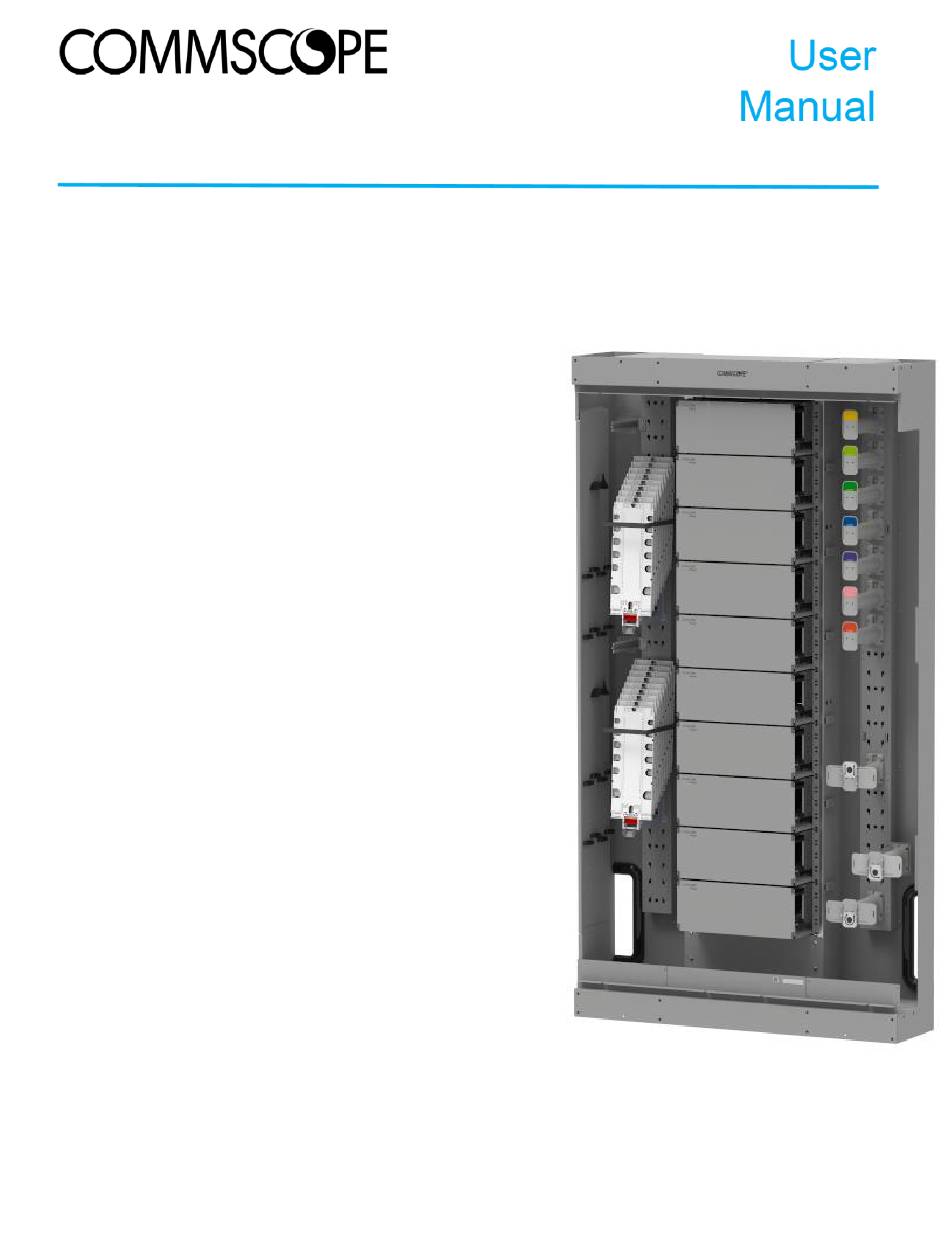

CommScope Propel XFrame PPL-FRAME-KT-WDRS User Manual

Access panels

Hide thumbs

Quick Links

Download this manual

TC-01001517-IP

Rev A, March 2025

commscope.com

Propel XFrame™ and Front Access Panels

Contents

Introduction......................................................2

Related Publications..........................................2

Product Description....................................2

1.1

General Description.................................2

1.2

Products Covered by This User Manual.......3

1.3

Compatible Products...............................3

Propel XFrame..........................................4

2.1

Frame Dimensions and Specifications.........4

2.2

Required Tools and Materials....................6

Frame Unpacking and Inspection...............6

2.3

2.4

Frame Assembly and Installation...............7

2.5

Frame Configurations..............................9

Frame Accessories................................10

2.6

Propel Front Access Panels........................13

3.1

Panel Dimensions and Specifications........13

Panel Unpacking and Inspection..............15

3.2

3.3

Panel Installation on Frame.....................16

Operational Details....................................18

4.1

Propel Front Access Panels Operation......18

4.2

Propel XFrame with Panels Operation.......20

4.3

General Best Practices...........................20

4.4

HCM Panels Best Practices.....................22

4.5

VCM Panels Best Practices.....................23

HCM Patch Cord Routing Diagrams..........24

4.6

VCM Patch Cord Routing Diagrams..........25

4.7

Stand-Alone Frame Routing Diagram........26

4.8

Contact Information...................................27

Page 1 of 27

Need help?

Do you have a question about the Propel XFrame PPL-FRAME-KT-WDRS and is the answer not in the manual?

Questions and answers

Summary of Contents for CommScope Propel XFrame PPL-FRAME-KT-WDRS

Page 1: Table Of Contents
Propel XFrame with Panels Operation…….20 General Best Practices……………………...20 HCM Panels Best Practices………………...22 VCM Panels Best Practices………………...23 HCM Patch Cord Routing Diagrams……….24 VCM Patch Cord Routing Diagrams……….25 Stand-Alone Frame Routing Diagram……..26 Contact Information……………………………..27 Page 1 of 27 © 2025 CommScope, Inc.
Page 2: Introduction
Propel XFrame products offer a flexible, efficient fiber optic management solution for high- density data center environments. Designed for simplicity and compatibility with CommScope’s Propel platform, the system enhances spatial optimization and supports rapid deployment of modern fiber optic architectures.
Page 3: Products Covered By This User Manual
Propel components that can be used with the Propel XFrame. CommScope ULL cable assemblies and patch cords can be used with the Propel XFrame. The 60” breakout is recommended for cable assemblies and 5 meter length is recommended for patch cords in most configurations (see Section 4.3...
Page 4: Propel Xframe
TC-01001517-IP Propel XFrame Frame Dimensions and Specifications Figure 1. Propel XFrame Dimensions Page 4 of 27 © 2025 CommScope, Inc.
Page 5 LC – 8f/16f 3,840 3,072 SN – 16f/32f Not Recommended 6,144 MPO8 – 4/8-Port Adapter Packs 15,360 12,288 MPO12 – 4/8-Port Adapter Packs 23,040 18,432 MPO16 – 4/8-Port Adapter Packs Not Recommended Not Recommended Page 5 of 27 © 2025 CommScope, Inc.
Page 6: Required Tools And Materials
If damage is detected or if parts are missing, file a claim with the commercial carrier and notify the CommScope Support Center at http://www.commscope.com/SupportCenter. c) Cut the banding straps and remove the top tray Figure X.
Page 7: Frame Assembly And Installation
• Back-to-Back Mounting: after Step 3 5) Trough assembly. 6) Door supports assembly. 7) (IF NEEDED) Side manager configuration. See Section 2.5 for details. 8) (IF INCLUDED) Door assembly. 9) Spools, labels, and clips assembly. Page 7 of 27 © 2025 CommScope, Inc.
Page 8 If required, connect the frame to earth ground per local practice. Figure 6 shows the grounding locations at the top of the rack and frame side manager. CONNECT TO FACILITY GROUNDING RAIL Figure 6. Frame Grounding Example Page 8 of 27 © 2025 CommScope, Inc.
Page 9: Frame Configurations
As with multi-frame scenarios, side manager brackets can be moved to the opposite side of the frame for a mirrored configuration (highlighted in Figure 8). Remove spools and cable retainers as needed. Page 9 of 27 © 2025 CommScope, Inc.
Page 10: Frame Accessories
The Propel XFrame is designed to accommodate accessory attachments that extend its functionalities, including the frame Side Panels, Splice kit, and Top Trough. These accessory kits are sold separately from the Propel XFrame. REMOVABLE BOTTOM PLATES Figure 9. Frame Side Panels Page 10 of 27 © 2025 CommScope, Inc.
Page 11 13, fastens to the top of the XFrame. It provides an overhead pathway for cables to pass between side managers or frames in a lineup. Alternatively, CommScope FiberGuide® can be installed using bracket FGS-HCTS-A/B. Page 11 of 27 © 2025 CommScope, Inc.
Page 12 Net Weight 11.5 lbs (5.2 kg) 2.7 lbs (1.2 kg) 6.8 lbs (3.1 kg) (Product Only) Gross Weight 20.4 lbs (9.3 kg) 3.6 lbs (1.6 kg) 13.6 lbs (6.2 kg) (With Packaging) Page 12 of 27 © 2025 CommScope, Inc.
Page 13: Propel Front Access Panels
TC-01001517-IP Propel Front Access Panels Panel Dimensions and Specifications Figure 14. PPL-FA-3U-HCM Panel Dimensions Figure 15. PPL-FA-4U-HCM Panel Dimensions Page 13 of 27 © 2025 CommScope, Inc.
Page 14 TC-01001517-IP Figure 16. PPL-FA-4U-VCM Panel Dimensions Figure 17. PPL-FA-5U-VCM Panel Dimensions Page 14 of 27 © 2025 CommScope, Inc.
Page 15: Panel Unpacking And Inspection
Locate and remove the hardware pack prior to recycling the packaging. NOTE: The foam inserts highlighted in Figure 18 may or may not be included, depending on the panel size and type. Page 15 of 27 © 2025 CommScope, Inc.
Page 16: Panel Installation On Frame
Install cage nuts into square holes on frame. NOTE: Refer to Figure 19 for guidance on cage nut locations based on panel used. c) Install the bottom two screws, leaving a gap between the rack and screwhead. Page 16 of 27 © 2025 CommScope, Inc.
Page 17 THIRD SQUARE HOLE FROM TOP SIXTH SQUARE HOLE FROM TOP BOTTOM FIRST SQUARE HOLE FIRST SQUARE HOLE BOTTOM FROM BOTTOM FROM BOTTOM Figure 19. Cage Nut Locations Per Panel Type and Mounting RUs Page 17 of 27 © 2025 CommScope, Inc.
Page 18: Operational Details
Figure 21. Removing Cartridge from PPL-FA Panel Next, install a Propel connection component into the panel cartridge. The entry (rear) cable connections can be made before or after the connection component is assembled to the cartridge. Page 18 of 27 © 2025 CommScope, Inc.
Page 19 When routing fiber-optic cables, handle with care and adhere to the minimum bend radius specified for the cable. Avoid sharp bends, pinch points, and excessive tension. ENTRY CABLE PROPEL CONNECTION PANEL COMPONENT CARTRIDGE Figure 22. Installing a Propel Connection Component into Cartridge Page 19 of 27 © 2025 CommScope, Inc.
Page 20: Propel Xframe With Panels Operation
• Label ports on the inside of the panel front doors according to your network labeling scheme. • ENTRY CABLES – Secure each entry cable to a cable attachment bracket using zip-ties, hook-and-loop straps, or other fastening method. Page 20 of 27 © 2025 CommScope, Inc.
Page 21 (5.2 + 1.2 • [# of frames bypassed] meters). by each Cable Entry bracket. CABLE RETENTION RETAINER SPOOL OFFSET SPOOL RETURN SPOOL FRAME DRIP BOTTOM ENTRY LOOP TARGET ZONE Figure 24. Cable Entry Diagrams Figure 25. Cable Transition Between Frames Page 21 of 27 © 2025 CommScope, Inc.
Page 22: Hcm Panels Best Practices
Avoid looking directly into any optical component. Permanent retinal damage is possible. If exposure to laser radiation is suspected, consult a physician. Figure 26. Example of Fully-Patched HCM Panel Page 22 of 27 © 2025 CommScope, Inc.
Page 23: Vcm Panels Best Practices
Avoid looking directly into any optical component. Permanent retinal damage is possible. If exposure to laser radiation is suspected, consult a physician. Figure 27. Example of Fully-Patched VCM Panel Page 23 of 27 © 2025 CommScope, Inc.
Page 24: Hcm Patch Cord Routing Diagrams
TC-01001517-IP Horizontal Cable Management (HCM) Panels – Patch Cord Routing Diagrams PPL-FA-3U-HCM (760258354) PPL-FA-4U-HCM (760258356) * Alternate Patch Cord Figure 28. HCM Patch Cord Routing Diagrams (Multiple Frames) Routing Path Page 24 of 27 © 2025 CommScope, Inc.
Page 25: Vcm Patch Cord Routing Diagrams
TC-01001517-IP Vertical Cable Management (VCM) Panels – Patch Cord Routing Diagrams PPL-FA-4U-VCM (760258355) PPL-FA-5U-VCM (760258357) * Alternate Patch Cord Figure 29. VCM Patch Cord Routing Diagrams (Multiple Frames) Routing Path Page 25 of 27 © 2025 CommScope, Inc.
Page 26: Stand-Alone Frame Routing Diagram
It is recommended to SPLICE ACCESSORY KIT use one Side PPL-FRAME-SPLC-KT Panels kit per stand-alone Propel XFrame. SIDE PANELS ACCESSORY KIT PPL-FRAME- SDPNL-KT Figure 30. Stand-Alone Frame Patch Cord Routing Example Page 26 of 27 © 2025 CommScope, Inc.
Page 27: Contact Information
TC-01001517-IP Contact Information • To find out more about CommScope® products, visit us on the web at www.commscope.com • For technical assistance, customer service, or to report any missing/damaged parts, visit us at http://www.commscope.com/SupportCenter Page 27 of 27 © 2025 CommScope, Inc.
