CommScope FTUO Installation Instruction

TC-913-IP
Rev A, Mar 2017
www.commscope.com
1

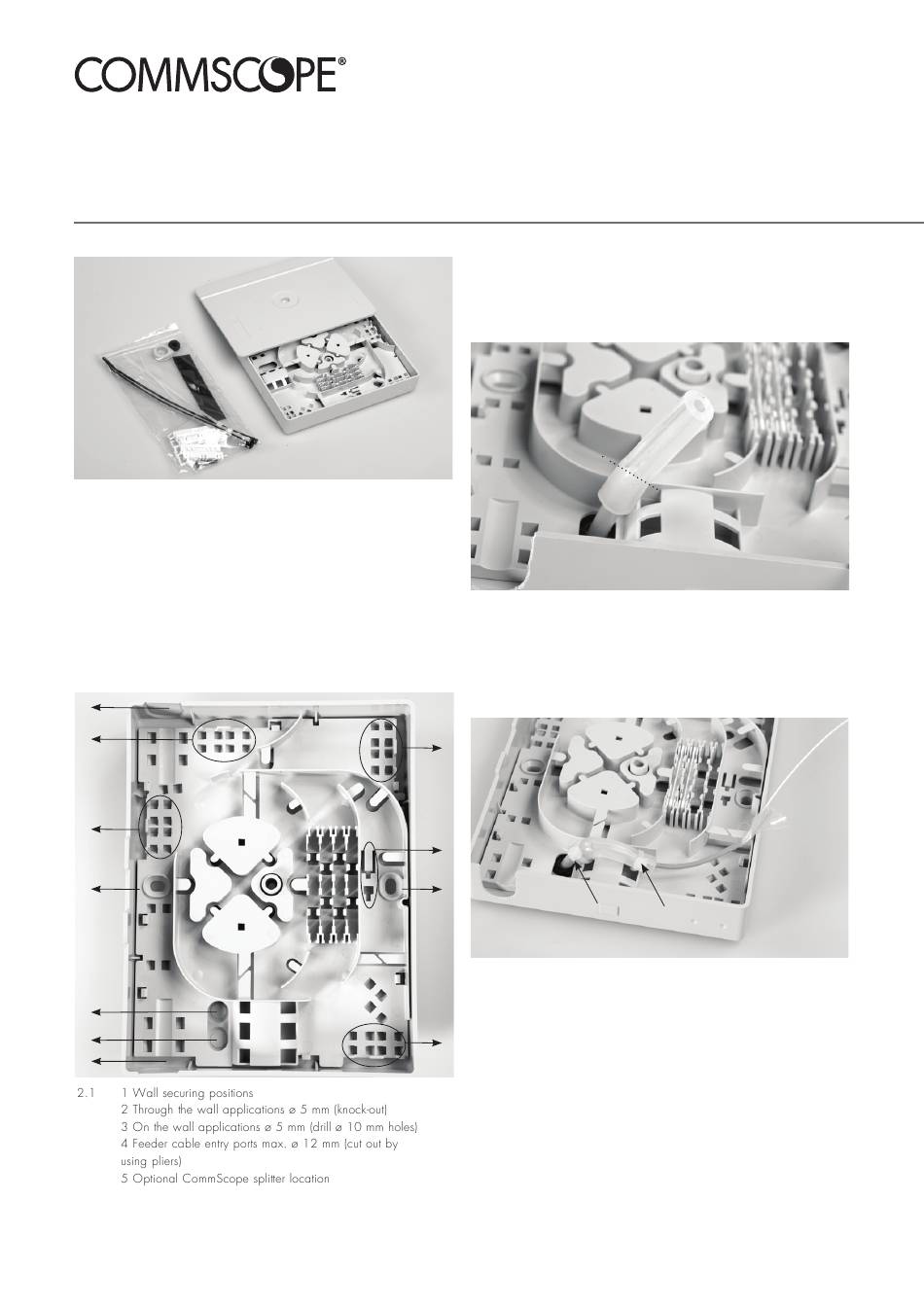

Kit content

• Box
• Tie-wraps
• Hook and loop fastener
• Silicone tube
• Rubber seal
• SMOUV/ANT inserts
For loose accessories see datasheet.
2

Marking/drilling

Remove the tray before drilling the holes.
4
3
3
1
2
2
4

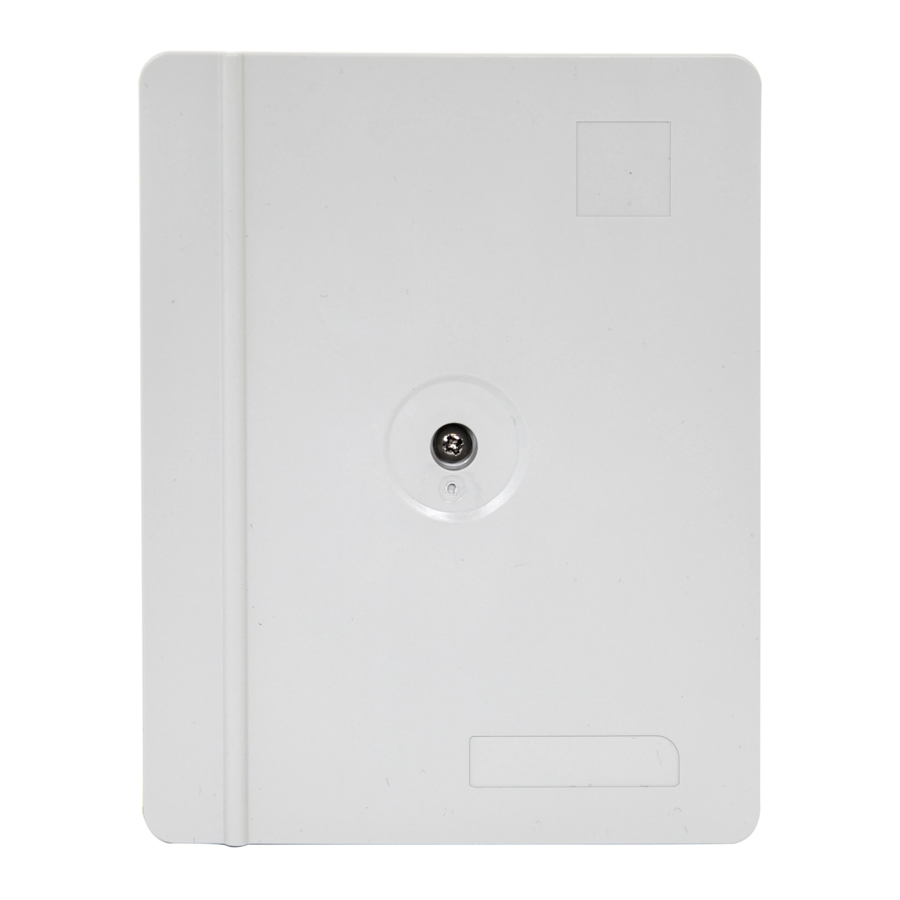

FTUO
I N S T A L L A T I O N
Fiber termination Unit-Outdoor
3 Termination of the customer connection,
pigtail
3.1 Feed the transportation tube (max. ø 5 mm) through the rubber
seal into the FTUO. Secure the FTUO against the wall.
3.2 Mark and cut the transportation tube (not included) to length as
shown. Slide the silicone tube 20 mm over the tube.
3.3 Feed the pigtail through the transportation tube into the FTUO.
Required length ± 1.5 m.
3
5
1
3.4 Secure and seal the rubber with the tube and pigtail onto the
box with tie-wraps.
3
I N S T R U C T I O N
