Installation - Timeguard MLB3000 Installation & Operating Instructions Manual

Diagram D
12m
Less
sensitive
More
sensitive
Diagram G
3
Dusk/Dawn

5. Installation

• Ensure the mains supply is switched off and the circuit supply fuses
are removed or the circuit breaker turned off.
• An isolating switch should be installed to enable the power to be switched
Lens Mask
ON & OFF for maintenance purposes and to activate the manual/auto
override function.

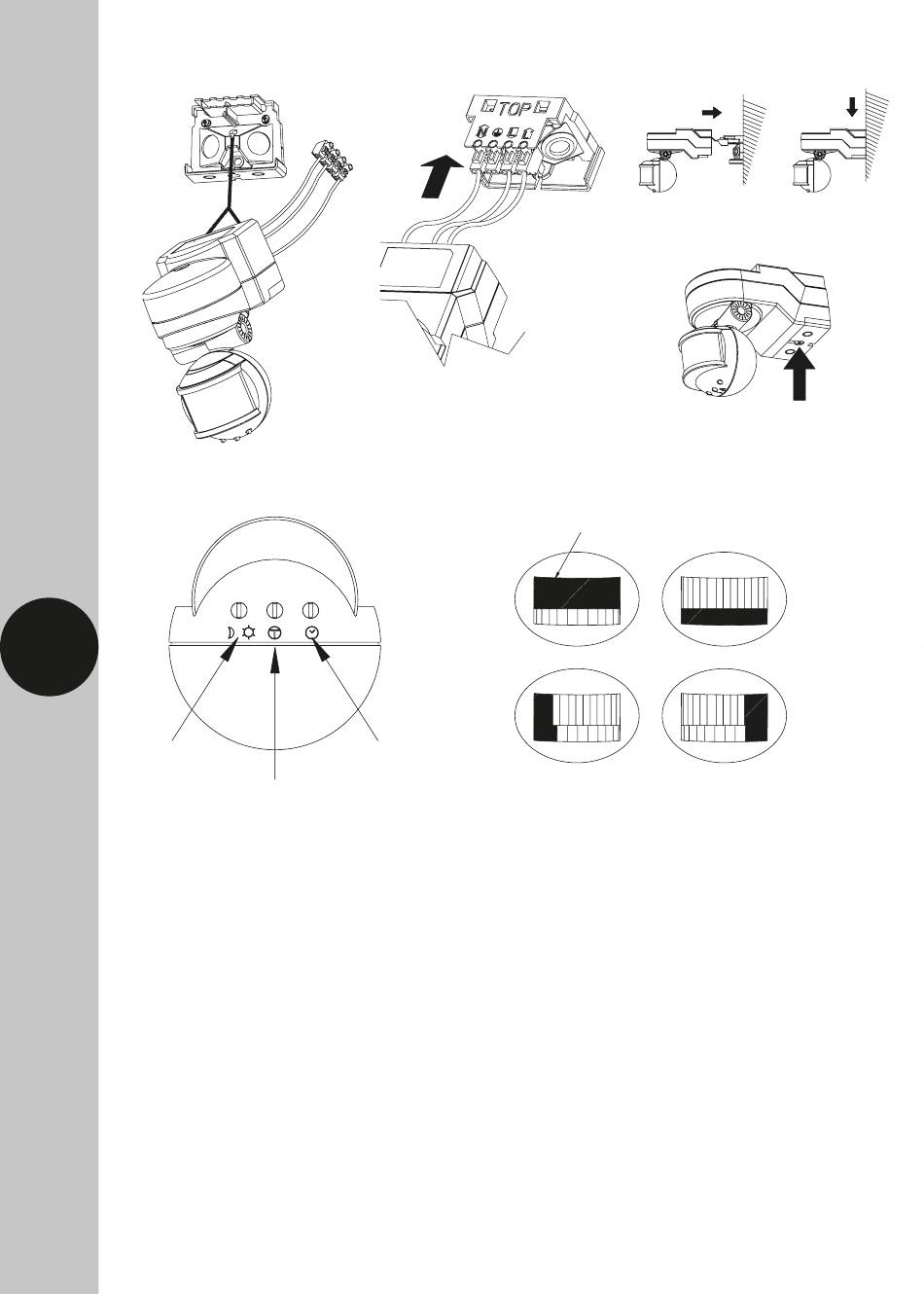

• Remove the wall plate by unscrewing the retaining screw (See diagram "F")
and with a screwdriver gently push down and ease out the wall plate.
Restrict long detection Restrict short detection
• Mark the position of the fitting holes using the wall plate as a template.
Drill out the mounting holes taking care to avoid any joists, electrical cables
or water/gas pipes that may be hidden beneath the surface. Insert the
Restrict RHS detection Restrict LHS detection
rawl plugs into the holes.
Diagram E
Time
Holiday Mode
Diagram F
Dusk/Dawn
Dusk/Dawn
Holiday Mode
Diagram H
Lens Mask
Lens Mask
Restrict long detection Restrict short detection
Restrict long detection Restrict short detection
Restrict RHS detection Restrict LHS detection
Restrict RHS detection Restrict LHS detection
Time
Time
Holiday Mode
TOP VIEW
200º
SIDE VIEW
2.5m
R
R
Le
se
Mo
sen
