4. Selecting a Location

• The motion detector has number of detection zones, at various vertical
and horizontal angles as shown (see diagram "A").
• The best all-round coverage is achieved with the unit mounted
at the optimum height of 2.5 metres.
• Careful positioning of the sensor will be required to ensure optimum
performance (see diagram "A" & "B" detailing detection range and direction).
• The sensor is more sensitive to movement ACROSS its field of vision than to
movement directly TOWARDS (see diagram "B"). Therefore position the unit
so that the sensor looks ACROSS the likely approach path.
• Avoid positioning the sensor where there are any sources of heat in the
detection area (extractor fans, tumble dryer exhausts etc.) including opposite
any other light sources such as other security lights.
Time
• Reflective surfaces (i.e. pools of water or white painted walls) may cause
false activation under extreme conditions.
2

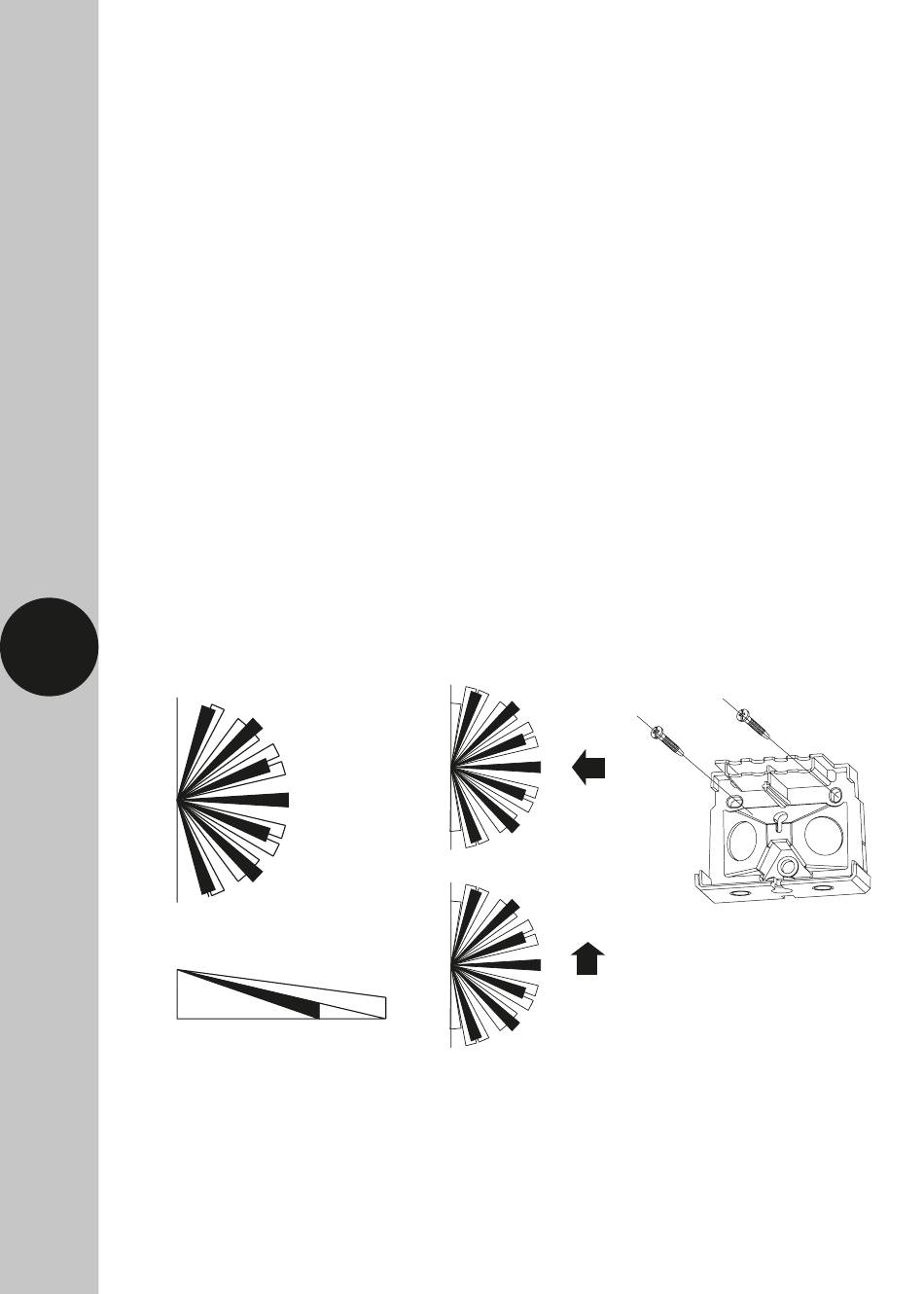

Diagram A
TOP VIEW
TOP VIEW
hort detection
Time
SIDE VIEW
day Mode
2.5m
SIDE VIEW
HS detection
2.5m
n Restrict short detection
n Restrict LHS detection
TOP VIEW
SIDE VIEW
2.5m
Diagram B
TOP VIEW
200º
200º
SIDE VIEW
2.5m
12m
12m
Less
sensitive
Less
200º
12m
200º
Less
sensitive
12m
More
sensitive
Less
sensitive
More
Diagram C
