Summary of Contents for Timeguard MLB3000

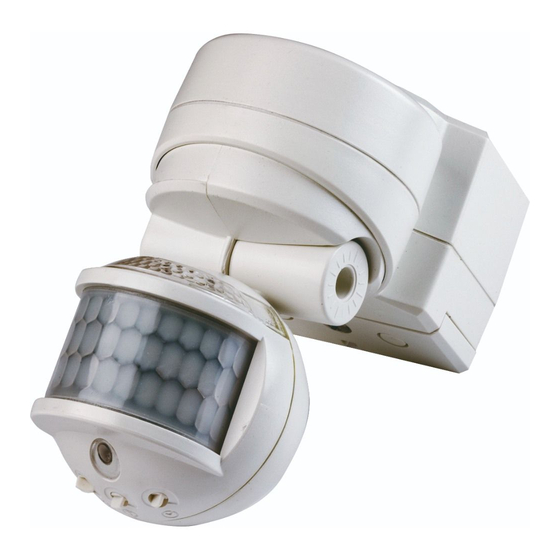

- Page 1 3000W Multi PIR Light Controller Model: MLB3000 – Black Model: MLW3000 – White...
-
Page 2: General Information
• Multiple PIR Sensor Switching: A maximum of 8 MLB-W3000 PIR sensors can be wired in parallel, to enable any detector to turn ON all the lights connected (The total load must not exceed the lamp rating of a single MLB3000 or MLW3000 unit). -
Page 3: Selecting A Location
4. Selecting a Location • The motion detector has number of detection zones, at various vertical and horizontal angles as shown (see diagram “A”). • The best all-round coverage is achieved with the unit mounted TOP VIEW at the optimum height of 2.5 metres. 200º... -
Page 4: Installation
Diagram D Diagram E Diagram F Less sensitive Time Dusk/Dawn Time Dusk/Dawn Holiday Mode Holiday Mode More sensitive TOP VIEW 200º Diagram G Diagram H Lens Mask Lens Mask Restrict long detection Restrict short detection Restrict long detection Restrict short detection Restrict RHS detection Restrict LHS detection SIDE VIEW Time... -
Page 5: Connection Diagram
• Pass the 230V 50Hz mains supply and load cables through the cable entry points on the wall plate, ensuring the grommet(s) is used to maintain the IP rating of the PIR sensor. • Fix the wall plate to the wall using the correct screws for the rawl plugs installed. -
Page 6: Operation And Testing
Mains Supply Load Live (Brown or Red) to L Switch Live (Brown or Red) to L1 Neutral (Blue or Black) to N Neutral (Blue or Black) to N A ‘Loop Terminal’ is provided A ‘Loop Terminal’ is provided should a 3 core cable be used, should a 3 core cable be used, which is marked which is marked... - Page 7 Setting Up For Automatic Operation – 3 scrolling LED’s Visible • After walk tests are complete, simply cease movement within the detection area for approximately 60 seconds the unit will switch into Automatic Mode, this is indicated by the illumination of three scrolling LED’s in the top transparent area of the sensor head.
- Page 8 Masking the Sensor Lens • To restrict the sensor coverage, preventing detection in unwanted areas, mask the sensor lens using the masks provided in the accessory pack (see diagram H). • The top section of the lens covers long range detection, the bottom covers short range.
-
Page 9: Troubleshooting
night the process will be repeated, the unit will remain on for this set period (0 – 8 hours) and then will operate as a PIR unit until dawn. • Switch the internal wall switch/circuit breaker 3 times (off/on off/on off/on) within 2 seconds. - Page 10 breaker off/on within one second. Automatic Mode is indicated by scrolling LEDs from Left to right. If a single flashing LED is visible, Holiday Mode has been selected. Switch the internal wall switch/circuit breaker OFF/ON with one second and the unit will return to Automatic Mode.
-
Page 11: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/ postage charges outside of the UK. All shipping costs are to be paid in... - Page 12 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
