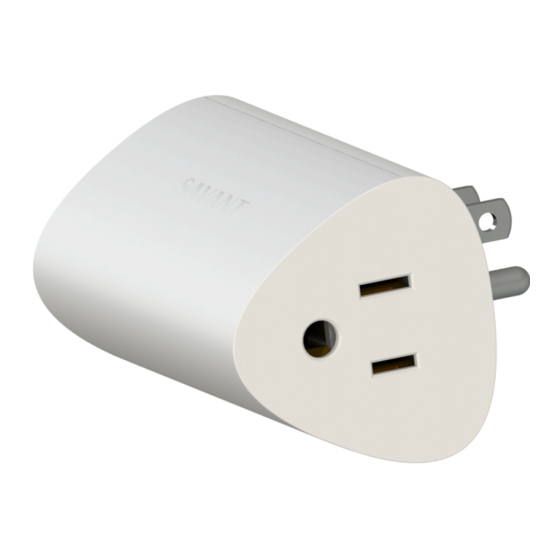

Savant SAV-LMP-0300 Deployment Manual

Pro lamp control
Hide thumbs Also See for SAV-LMP-0300:
Table of Contents

Advertisement

Quick Links

Download this manual
Savant Pro Lamp Control
SAV-LMP-0300
Deployment Guide
Document Number:
009-1388-01
Document Date:
August 2016
Document Supports: da Vinci 8.0
Copyright © 2016 Savant Systems, LLC
45 Perseverance Way, Hyannis, MA 02601
Savant.com
| 508.683.2500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAV-LMP-0300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Savant SAV-LMP-0300

Summary of Contents for Savant SAV-LMP-0300

  • Page 1 Savant Pro Lamp Control SAV-LMP-0300 Deployment Guide Document Number: 009-1388-01 Document Date: August 2016 Document Supports: da Vinci 8.0 45 Perseverance Way, Hyannis, MA 02601 Copyright © 2016 Savant Systems, LLC Savant.com | 508.683.2500...

  • Page 2: Important Safety Information

    Weight Injury Prevention WEIGHT INJURY! Installing some of the Savant equipment requires two installers to ensure safe handling during installation. Failure to use two installers may result in injury.

  • Page 3: Table Of Contents

    Appendix D: Additional Procedures ..................... 36     Configure Lamp Control to Function as a Switch .................... 36 Important Notice ..........................37   FCC Regulatory ............................ 38   Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...

  • Page 4: Introduction

    Introduction This Deployment Guide will guide the installer through the process of installing, configuring, and adding a Savant Lamp Control (SAV-LMP-0300) to a Savant Control system. Before You Begin Read through this document in its entirety and ensure that the following required items are available: Savant Lamp Control (SAV-LMP-0300) ..........................

  • Page 5: Deployment Steps

    2. Deployment Steps Follow these steps to successfully deploy the Savant Lamp Control. This page can be used as a checklist to record which steps have been completed. Review the Lamp Control connections and controls ....................Lamp Control Overview Connect hardware ..................................

  • Page 6: Lamp Control Overview

    Low Voltage (MLV) loads. IMPORTANT NOTE! Do not use CFL or LED bulbs listed as Not for use with dimmers. Refer to the Lamp Control Quick Start Guide (009-1406-xx) for this product located on the Savant Community for Box Contents and Specifications.

  • Page 7: Connections

    Press and release the reset button positioned on the bottom of the Lamp Control. Verify the lamp/load toggles On and Off. The Lamp Control is now ready to be provisioned. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...
  • Page 8 Blinks Once (Green): Provisioned and communicating with the local network. Not currently State LED communicating with the Savant Control System Host (Not bound to the Host). Rapid Blink (Red): The reset button was held down for at least five seconds. When button is released, the rapid blink will stop and the Lamp Control will reset into Access Point Provisioning Mode.

  • Page 9: Provisioning To The Network - Smartconnect

    Prior to adding the Lamp Control into a configuration in RacePoint Blueprint, the Lamp Control must first be provisioned to the local network. To do this, Savant offers the SmartConnect Application, which is available for download from the iTunes App store. The SmartConnect application makes it simple to provision the Lamp Control to the network as well as a host of other tasks.

  • Page 10: Provisioning Steps - Smartconnect

    Password - Enter Password to the local network TIP! Tap the Use Current Network SSID field to auto populate the Name field with the SSID of the local network. Tap Join when complete. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...
  • Page 11 The Lamp Control is now provisioned to the local network. The LED on the side of the Lamp Control will now blink green indicating it is connected to the network but has not established a binding to the Savant Pro System. Refer to the LED Status section for LED state information.

  • Page 12: Understanding Bindings

    Pro System involves. Binding or unbinding a lighting device is adding or removing the UID of the lighting device to the configuration running on the Savant Pro System Host. There are numerous methods available to the integrator to bind a lighting device to the Savant Pro System. They are as follows: A.

  • Page 13: Racepoint Blueprint® Configuration - Bind Through Smartconnect

    7. RacePoint Blueprint® Configuration - Bind through SmartConnect Add the Lamp Control to RacePoint Blueprint and then bind to the Savant Pro System using SmartConnect is described in this section. IMPORTANT! If establishing the bindings through RacePoint Blueprint, skip this section and proceed to Section 8.

  • Page 14: Lighting/Keypad Manager Basics

    The identifier should make it easy to locate the lamp/load when entering the room specified in the Location column. To modify, double-click the text and enter a new identifier. The name entered will also be displayed in the TrueControl II or Savant Pro App as the device being controlled.

  • Page 15: Lighting/Keypad Manager - Load Scenes (Optional)

    Max: % value set. Sets the time (seconds) it takes for the power applied to the load to Fade Off decrease to Off. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...
  • Page 16 Sets the feedback or response observed in the TrueControl II or Savant Pro 8 App. For example, if set to Exact, the feedback observed in the Scene is Active Savant Pro 8 or TrueControl II App follows how the setting Exact will react. Savant Lamp Control Deployment Guide Copyright ©...

  • Page 17: Populate/Update The Lighting Data Table

    Select the Sync button to update the lighting data table with an updated configuration. IMPORTANT! The data table that gets modified only affects the TrueControl II and Savant Pro 8 Apps. Any modifications made here do not affect the Lamp Control configurations.

  • Page 18: Upload Configuration

    Control. The Status LED on the side of the Lamp Control will illuminate solid (green) indicating it is connected to the network and bound to the configuration running on the Host. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...

  • Page 19: Bind Lamp Control Using Smartconnect

    Tap the icon to open the SmartConnect application. Locate the Smart or Pro Host (Savant ID) from the list of devices under the Devices on WiFi section. Tap the Host Controller to open the devices page. On the Devices page that opens (image below), the Lamp Control will be available. A question mark in the field indicates the Lamp Control is not bound to the configuration running on the Host.
  • Page 20 Lamp flashes. This indicates the Lamp Control is configured and communicating with the Host. Select the <Back button and repeat steps above to bind all Lamp Controls in the configuration to the Savant Control System Host. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC...

  • Page 21: Unbind Process

    Connect the iOS device to the wireless network that the Savant Control system is utilizing. Open the SmartConnect application Locate the Smart or Pro Host (Savant ID) from the list of devices under the Devices on WiFi section. Tap the Host Controller to open the devices page.

  • Page 22: Export Configuration File

    7.10 Export Configuration File After binding the Lamp Control to the configuration running on the Savant Pro System Host, Savant recommends that the configuration file with all the bindings be exported, saved, and then reloaded onto the Host. The configuration file currently loaded on the Host does NOT include the bindings. To get a configuration file that includes the bindings, the configuration with its bindings needs to be exported from the Host.

  • Page 23: Racepoint Blueprint® Configuration - Bind Through Lighting Manager

    Add, Configure, and Bind the Lamp Control using the RacePoint Blueprint application is described in this section. Enable Controller Functionality on the Host By default, the Lighting Controller Source function is NOT enabled in the Savant Pro System Host. To enable, do the following: Open the Smart or Pro Host Inspector (Double-click the Host in RacePoint Blueprint).

  • Page 24: Lighting/Keypad Manager Basics

    The identifier should make it easy to locate the lamp/load when entering the room specified in the Location column. To modify, double-click the text and enter a new identifier. The name entered will also be displayed in the TrueControl II or Savant Pro App as the device being controlled.

  • Page 25: Lighting/Keypad Manager - Load Scenes (Optional)

    Max: % value set. Sets the time (seconds) it takes for the power applied to the load to Fade Off decrease to Off. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...
  • Page 26 Sets the feedback or response observed in the TrueControl II or Savant Pro 8 App. For example, if set to Exact, the feedback observed in the Scene is Active Savant Pro 8 or TrueControl II App follows how the setting Exact will react. Savant Lamp Control Deployment Guide Copyright ©...

  • Page 27: Lighting/Keypad Manager - Establish Bindings

    Select the Bind button (see image above) and the Lamp Control will bind itself to the configuration file in RacePoint Blueprint. Repeat steps 3-6 above and bind all the Lamp Controls. Close Lighting and Keypad Manager when done. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...
  • Page 28 Repeat steps 3 and 4 above and add the UID to the UID field of all the Lamp Controls in the lighting devices list Close Lighting and Keypad Manager when done. The next step is to populate/update the lighting data table. Continue to section 8.7 below. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...

  • Page 29: Populate/Update The Lighting Data Table

    Sync button is pressed, the updated lighting data table opens as displayed below. IMPORTANT! The data table that gets modified only affects the TrueControl II and Savant Pro 8 Apps. Any modifications made here do not affect the Lamp Control configurations.

  • Page 30: Upload Configuration

    Control. The Status LED on the side of the Lamp Control will illuminate solid (green) indicating it is connected to the network and bound to the configuration running on the Host. Savant Lamp Control Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1388-01 | 160810...
  • Page 31 Additional Documentation Additional documentation is available on the Savant Community. Metropolitan Wireless Lighting Deployment Guide (009-1342-xx) − Savant University > Course Catalog > Lighting – Lighting Tutorial Videos − Lighting Data Tables Overview: Application Note in the Savant Community. −...

  • Page 32: Appendix A: Network Requirements

    Connect all Savant devices to the same local area network (LAN) or subnet as the host. Savant recommends not implementing any type of traffic or packet shaping in your network topology for the Savant devices as this may interfere with performance.

  • Page 33: Appendix B: Provision To The Network - Web Ui

    On the MacBook/SDE, select the Wi-Fi icon in the menu bar and select the Lamp Control from the available networks. The Lamp Control will appear as Savant[Mac Address]. The Mac Address is the first 12 characters of the Savant UID.
  • Page 34 The Lamp Control is now provisioned to the local network. The LED on the side of the Lamp Control will now blink green indicating it is connected to the network but has not established a binding to the Savant Pro System.

  • Page 35: Appendix C: Firmware Info

    Appendix C: Firmware Info Firmware updates are automatic and occur each time the software is updated on the Savant Control System Host. After a software upgrade, the Host scans the network and compares the firmware version loaded in the Lamp Control with the firmware in the updated da Vinci software.

  • Page 36: Appendix D: Additional Procedures

    Upload the updated file to the Savant Pro System Host. 12. Test and verify the Lamp Control now has switch (On/Off) controls in the Savant Remote and the Savant Pro 8 App. Selecting On or Off now toggles the load On and Off.

  • Page 37: Important Notice

    Savant Systems, LLC shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.

  • Page 38: Fcc Regulatory

    FCC Regulatory This device complies with Part 15 of the FCC Rules and Regulations. For complete information, refer to the Savant Important Information document supplied with the Lamp Control. Contains FCC ID: TLZ-CU277 Contains IC: 6100A-CU277 Savant Lamp Control Deployment Guide Copyright ©...
