Savant ITP-E8000 Series Quick Reference Manual

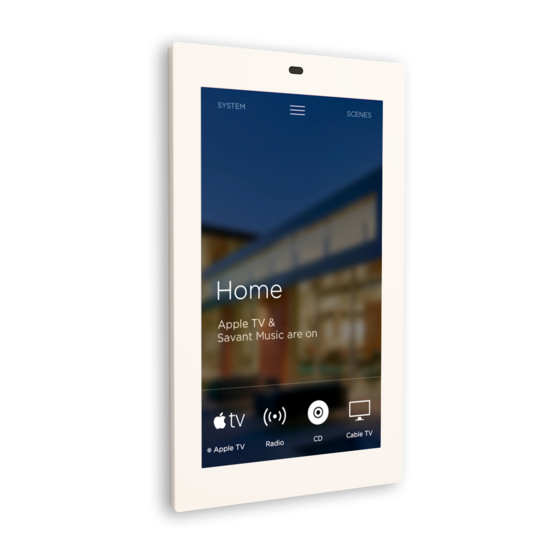

Savant® Touch 8 Inch Control Screen (ITP-E8000x-xx) Quick Reference Guide
Box Contents
(1) Savant 8.0 inch In-Wall Touch Screen (ITP-E8000x-xx)
(1) Installation Kit (075-0203-xx)
(1) Installation Template (009-1561-xx)
(1) Mounting Bracket (For standard 2-gang electrical box)
(4) Mounting Bracket Screws (6/32 x 1 in.)
(1) Savant Touch 8 Inch Control Screen Quick Reference Guide
(009-1522-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions
Viewing Image
8.0 in (203.0mm)
(IPS)
Resolution 1280 X 800 | 16.7M colors
Height 5.84 in (148.4 mm)
Width 8.80 in (223.5 mm)
Depth (overall) 1.43 in (36.3 mm)
Depth
0.62 in (15.8 mm)
(mounting)
Weight 0.95 lb (0.44 kg)
Power
PoE 802.3af compliant
Power Average
consumption 5.14W
Regulatory
CE
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 8.10.1
Network Requirements
Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of commu-
nication between devices. These higher quality components also allow
for more accurate troubleshooting when needed.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type of
traffic or packet shaping in your network topology for Savant devices,
as this may interfere with performance.
Network Changes
If the IP addressing range has changed for the local network, Savant
recommends rebooting the device via the Settings menu to refresh the
network connection and ensure optimal communication:
Navigate from the Home Screen Rooms > Select Location > Settings
> Reboot
ITP-E8000x | 009-1522-04 | 191009
Copyright © 2019 Savant Systems, LLC
Maximum
6.76W
FCC Part 15 WEEE
1
Front Panel
Rear Panel
B
D
I
Mounted on the front of the panel, the proximity
Proximity
A
sensor will wake up the screen when motion is
Sensor
detected in the area.
B
Micro USB Not Used
Embedded Primarily used for entry service intercom fea-
C
Speaker ture.
Align the mounting fram hooks and press down
Mounting
D
to seat. Refer to the
Slots
2.
Alternative
E
Not Used
Power Input
Solid Orange - Link is established.
F
Link LED
Off – No link established
Green Blinking - Indicates data activity.
Link Activity
G
LED
Off – No Activity
8-pin RJ-45 port:
H
Ethernet
10/100/1000 Base-T auto-negotiating port with
link and activity LEDs
Used to secure touch panel to bracket after
Captive
I
mounting frame hooks have been seated. Refer
Screws
to the
Embedded Primarily used for entry service intercom fea-
J
Microphone ture.
Network Configuration
To ensure that the IP address will not change due to a power outage,
a static IP address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, IP addresses for all devices can be managed from a single UI
avoiding the need to access devices individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
of 2
A
C
E
F
G
H
J
Mounting section on Page
Mounting section on page 2 for details.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
D
| 508.683.2500
