- Page 1 HDC-301MS Capture Card MODEL: HDC-301MS Video/Audio Capture Card with HDMI Input Channel,1920x1080@30p, and H.264 Hardware Encoder User Manual Page I Rev. 1.01 – June 23, 2017...
- Page 2 HDC-301MS Capture Card Revision Date Version Changes June 23, 2017 1.01 Modified software application specifications, installation procedures and usage instruction. September 4, 2015 1.00 Initial release Page II...
- Page 3 HDC-301MS Capture Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
- Page 4 HDC-301MS Capture Card Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.
-
Page 5: Table Of Contents
HDC-301MS Capture Card Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 F ........................2 EATURES 1.3 A ......................3 PPLICATIONS 1.4 C ..................... 3 ONNECTOR VERVIEW 1.5 S ......................4 PECIFICATIONS 1.6 D ....................... 6 IMENSIONS 2 HARDWARE INSTALLATION................... - Page 6 HDC-301MS Capture Card List of Figures Figure 1-1: HDC-301MS Capture Card ..................2 Figure 1-2: HDC-301MS Connector Overview................3 Figure 1-3: HDC-301MS Dimensions (mm) ..................6 Figure 2-1: HDC-301MS Installation....................10 Figure 2-2: HDMI Input Connector Location ................11 Figure 3-1: IEI HD Capture Setup Wizard Welcome Window ...........14 Figure 3-2: Select Installation Folder..................14...
- Page 7 HDC-301MS Capture Card List of Tables Table 1-1: Specifications .......................5 Table 2-1: Package List Contents ....................9 Table 2-2: HDMI Input Connector Pinouts .................11 Page VII...
-
Page 9: Introduction
HDC-301MS Capture Card Chapter Introduction Page 1... -
Page 10: Overview

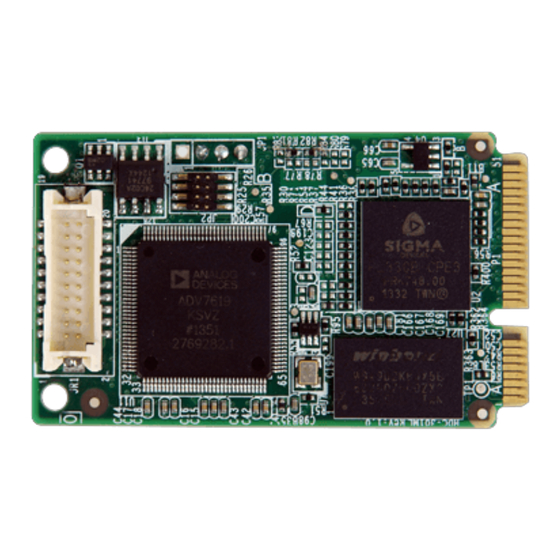

1.1 Overview Figure 1-1: HDC-301MS Capture Card The low power HDC-301MS capture card supports 1080p Full HD video via HDMI connection. The HDC-301MS capture card is equipped with the high-performing encoder component with the HDMI video input channel and either audio input channel. -
Page 11: Applications
R&D diagnostic purposes and should not be used by the end user. The HDC-301MS comes with one HDMI input connector. A PCIe Mini edge connector on the bottom of the capture card enables the HDC-301MS to interface with a motherboard. -
Page 12: Specifications
HDC-301MS Capture Card 1.5 Specifications The HDC-301MS specifications are listed in the table below: HDC-301MS PCIe Mini PC Interface INPUT PORT Video Input Channel Video Input Type HDMI Audio Input Channel HDMI Audio Input Type AUDIO PROCESSING 44.1 k, 48 kHz... - Page 13 HDC-301MS Capture Card HDC-301MS 1920 x 1080 24p/25p/30p 1280 x 1024 1280 x 800 1280 x 768 1280 x 720 50p/60p Recording Resolution 1024 x 768 800 x 600 720 x 576 720 x 480 640 x 480 FUNCTIONALITY 4 cards, 4 channels...
-
Page 14: Dimensions
HDC-301MS Capture Card 1.6 Dimensions The dimensions for the HDC-301MS are listed below. Figure 1-3: HDC-301MS Dimensions (mm) Page 6... -
Page 15: Hardware Installation
HDC-301MS Capture Card Chapter Hardware Installation Page 7... -
Page 16: Unpacking
Electrostatic discharge (ESD) can cause serious damage to electronic components, including the capture card. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the HDC-301MS or any other electrical component is handled, the following anti-static precautions are strictly adhered to. -
Page 17: Unpacking Checklist
If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the HDC-301MS from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@ieiworld.com. -
Page 18: Hardware Installation
HDC-301MS Capture Card 2.2 Hardware Installation To install the HDC-301MS capture card into a system, please follow the steps below: Step 1: Connect the HDMI input cable to the HDMI input connector on the HDC-301MS. Step 2: Insert into the PCIe Mini slot on the system motherboard. Line up the notch on the HDC-301MS with the notch on the connector. -
Page 19: Hdmi Input Connector (Jr1)
HDC-301MS Capture Card NOTE: The HDC-301MS does not have HDMI output port. To output HDMI video, you can use a HDMI splitter. 2.2.1 HDMI Input Connector (JR1) The HDMI input connector connects to the HDMI input cable that provides an HDMI input port. -
Page 20: Iei Hd Capture (Windows)
HDC-301MS Capture Card Chapter IEI HD Capture (Windows) Page 12... -
Page 21: Software Installation (Windows)
HDC-301MS Capture Card 3.1 Software Installation (Windows) The HDC-301MS comes with a video capture application – IEI HD Capture. This section describes how to install the application in Windows environment. 3.1.1 System Requirements The supported OS versions are listed below: ... -
Page 22: Figure 3-1: Iei Hd Capture Setup Wizard Welcome Window
HDC-301MS Capture Card Figure 3-1: IEI HD Capture Setup Wizard Welcome Window Step 5: Select a folder for IEI HD Capture installation as shown in Figure 3-2. Click Next to continue. Figure 3-2: Select Installation Folder Page 14... -
Page 23: Figure 3-3: Confirm Installation
HDC-301MS Capture Card Step 6: The following screen appears. Click Install to confirm the installation. Figure 3-3: Confirm Installation Step 7: The system starts installing the IEI HD Capture. Figure 3-4: Installing IEI HD Capture Page 15... -
Page 24: Figure 3-5: Usb To Pcie Driver Installation Wizard
Figure 3-5: USB to PCIe Driver Installation Wizard CAUTION: 1. IEI HDC-301MS, HDC-301EL and HDB-301L capture devices use this same installer for software and driver installation. Therefore, the USB to PCIe driver which is needed by the HDC-301EL is also included in the installer package. -
Page 25: Figure 3-6: Confirm Usb To Pcie Driver Installation
HDC-301MS Capture Card Step 9: The following screen appears. Click Install to confirm the installation. Figure 3-6: Confirm USB to PCIe Driver Installation Step 10: When the USB to PCIe driver installation is complete, click the Finish button to finish the USB to PCIe driver installation. -
Page 26: Figure 3-8: Device Driver Installation Wizard Welcome Window
HDC-301MS Capture Card Step 11: When the USB to PCIe driver is complete, the following window appears to guide you to install the device driver. Click Next to start installing the driver. Figure 3-8: Device Driver Installation Wizard Welcome Window Step 12: If the following window appears before installation, click Install to continue. -
Page 27: Figure 3-10: Device Driver Installation Complete
HDC-301MS Capture Card Step 13: The following window appears. Click Finish to exit. Figure 3-10: Device Driver Installation Complete Page 19... -
Page 28: Using Iei Hd Capture Application
HDC-301MS Capture Card 3.2 Using IEI HD Capture Application This section describes how to use IEI HD Capture in Windows environment. 3.2.1 IEI HD Capture Interface Overview Figure 3-11: IEI HD Capture ① Device: the IEI capture card installed in the computer for capturing video ②... -
Page 29: Capture Video
HDC-301MS Capture Card 3.2.2 Capture Video To use the IEI HD Capture to capture video, follow the steps below. Step 1: Launch the IEI HD Capture by double-clicking the icon on the desktop. Step 2: The IEI HD Capture user interface appears (See Figure 3-11). Follow the instructions described below to make necessary configuration settings. -
Page 30: Play Video
HDC-301MS Capture Card WARNING: Do not use IEI HDC-301MS to record HDCP- or copyright-protected content. Unauthorized use of screenshots or videos may infringe the rights of the copyright owner and violate the law. 3.2.3 Play Video To use the IEI HD Capture to play the video recorded previously, follow the steps below. -
Page 31: Assign Keyboard Shortcut
HDC-301MS Capture Card 3.2.4 Assign Keyboard Shortcut The user can assign a keyboard shortcut for the REC button to start recording or stop recording in HD Capture. To assign keyboard shortcuts, following the steps below. ⑥ Step 1: Click button (Figure 3-11 ). -
Page 32: Schedule Recording
HDC-301MS Capture Card 3.2.5 Schedule Recording IEI HD Capture allows users to schedule recording. Users can specify the time for the recording to start and stop, and IEI HD Capture will start automatically at the specified time to perform the recording and stop automatically. To use the IEI HD Capture to schedule recording, follow the steps below. -
Page 33: Figure 3-15: Schedule Setting Window
HDC-301MS Capture Card Figure 3-15: Schedule Setting Window Step 3: To perform the scheduled recoding for one time, select Once and specify the date on the left side of the window. To perform the scheduled recoding daily or weekly for the specified duration, select Daily or Weekly. -
Page 34: Faq
HDC-301MS Capture Card Chapter Page 26... - Page 35 The drivers are included in the IEI HD Capture software. To obtain the latest drivers, please go to IEI website: http://www.ieiworld.com/. Click Products → Capture Card → HDC-301MS → Download, and then find and download the latest IEI HD Capture software.
-
Page 36: A Regulatory Compliance
HDC-301MS Capture Card Appendix Regulatory Compliance Page 28... - Page 37 HDC-301MS Capture Card DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply. FCC WARNING This equipment complies with Part 15 of the FCC Rules.
-
Page 38: B Hazardous Materials Disclosure
HDC-301MS Capture Card Appendix Hazardous Materials Disclosure Page 30... - Page 39 HDC-301MS Capture Card The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
- Page 40 HDC-301MS Capture Card 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...
