IEI Technology HDC-401 Quick Installation Manual

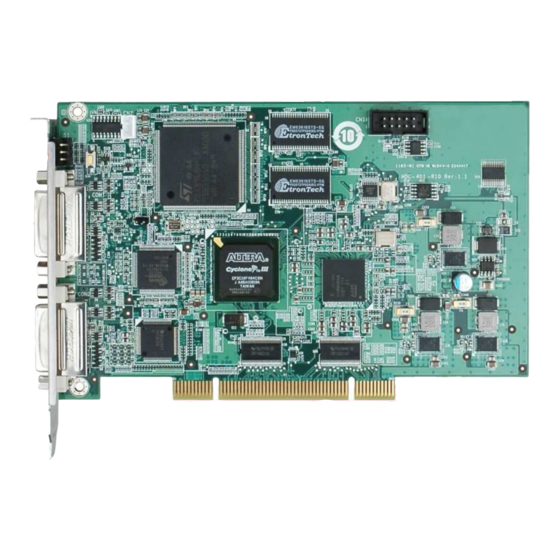

Pci/pci express video capture card with one dvi-i input channel and one, dvi-i output channel, 1920x1080 60p, and hardware h.264 codec
Hide thumbs Also See for HDC-401:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
PCI/PCI express video capture card with one DVI-I input channel and one
DVI-I output channel, 1920x1080@ 60p, and Hardware H.264 codec
HDC-401 / HDC-401E
Quick Installation Guide
1. Package List
HDC-401/ HDC-401E package includes the following items:
1 x HDC-401/HDC-401E video capture card
1 x Utility CD (within manual)
1 x QIG (Quick Installation Guide)
Version 1.0
18 August, 2011
©2011 Copyright by IEI Technology corp.
All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC-401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology HDC-401

Summary of Contents for IEI Technology HDC-401

  • Page 1 Quick Installation Guide Version 1.0 18 August, 2011 1. Package List HDC-401/ HDC-401E package includes the following items: 1 x HDC-401/HDC-401E video capture card 1 x Utility CD (within manual) 1 x QIG (Quick Installation Guide) ©2011 Copyright by IEI Technology corp.

  • Page 2: Specifications

    2. Specifications HDC-401 HDC-401E Video Input Channels Video Input Type DVI-I (DVI/VGA) DVI-I (DVI/VGA) Video Output Channel Video Output Type DVI-I (DVI/VGA) DVI-I (DVI/VGA) Interface PCIe x1 VIDEO PROCESSING 1920 x 1080 60p, encoding bit rate from 6Mbps to 30Mbps...
  • Page 3 3. Hardware Installation 3.1 Hardware Overview HDC-401 HDC-401E...

  • Page 4: Video Capture Card Installation

    Step2. Gently insert the video capture card into the PCIe x1 or PCI slot. Step3. Push down gently on the video card to make sure it is firmly inserted into the PCIe x1 or PCI slot. HDC-401 HDC-401E Step4. Insert a retention screw through the top of the video capture card...
  • Page 5 3.3 DVI-I Devices Installation Various DVI-I devices can be connected to the HDC-4x Series. Video input and video output are all supported. Follow the steps below to connect the DVI-I devices to the HDC-4x Series. Step1. Insert the DVI-I connector from the cable into the DVI-I input connector on the HDC-4x Series.
  • Page 6 The details of these ten modes are described in table below: Mode EDID Display Resolutions Analog Full screen 720p or 1080p Analog Dot-by-dot 720p or 1080p Analog Keep aspect ratio 720p or 1080p Digital Full screen 720p or 1080p Digital Dot-by-dot 720p or 1080p Digital...
  • Page 7 3. Driver and Application Installation 3.1 Driver Installation To install the HDC-4x Series driver, please follow the steps below: If the HDC-4x Series driver is already installed, please refer to Section 3.2 to uninstall the driver first. Step1. Make sure to log in the system as the administrator. Step2.
  • Page 8 Step5. Device Driver Installation Wizard appears. Click Next to start. Step6. When the driver installation is complete, the following screen will appears. Click the “Finish” button to finish...

  • Page 9: Uninstall Driver

    Step7. Check the device manager in the Windows control panel to ensure the driver (MB86H55-REB PCI and WinDriver) has been properly installed 3.2 Uninstall Driver To uninstall the driver, please follow the steps below. Step1. Make sure to login the system as the administrator. Step2.
  • Page 10 3.3 Software Installation (HDCapture Demo Program) To install the HDCapture demo program, please follow the steps below. Step1. Insert the driver CD. Step2. Locate the HDCapture_x86_Vxxxx.msi file in the driver CD. Double click the setup file to start the installation. The user can also download the latest setup file from IEI website.
  • Page 11 Step5. The following screen appears. Click Next to confirm the installation Step6. The system starts installing the HDCapture. Step7. When the HDCapture is successfully installed, the following window appears. Click Close to exit.
  • Page 12 4. HDCapture Application 4.1 Video Capture To use the HDCapture to capture video, follow the steps below. If the older version of the HDCapture is already installed, please refer to Section 4.6 to uninstall it. Step1. Launch the HDCapture. The Device Setting buttons are on the right side panel of the HDCapture.
  • Page 13 Step4. Configure the encoding settings, including encoding file directory (click Ref button to choose the directory), rate control (CBR or VBR) and video encoding bitrate (must be in the range of video format). When “CBR” is selected, the “Bitrate” text box is displayed. When “VBR” is selected, the “Average bitrate”...

  • Page 14: Preview Video

    4.2 Preview Video The user can preview the video in the HDCapture. To preview a video, check the Preview checkbox and press the Start button. The video displays on the left side panel. Click Stop to stop the preview. 4.3 Snap Shot The user can take a snap shot in the HDCapture.

  • Page 15: Video Decoding

    4.4 Video Decoding The HDCapture also includes decoding function that decodes the video signal for video output to the DVI-enabled display device. To decode a captured video clip, follow the steps below. Step1. Launch the HDCapture. Step2. Bring up the Decoding page by clicking one of the Device 0 button. Click the Decoding tab to access the decoding page.

  • Page 16: Video Bypass

    4.5 Video Bypass To view the video input source on DVI display device in real time, please follow the steps below. Step1. Launch the HDCapture. Step2. Connect the DVI cable from DVI display device to the DVI-I output port of the HDC-4x Series. Step3.
