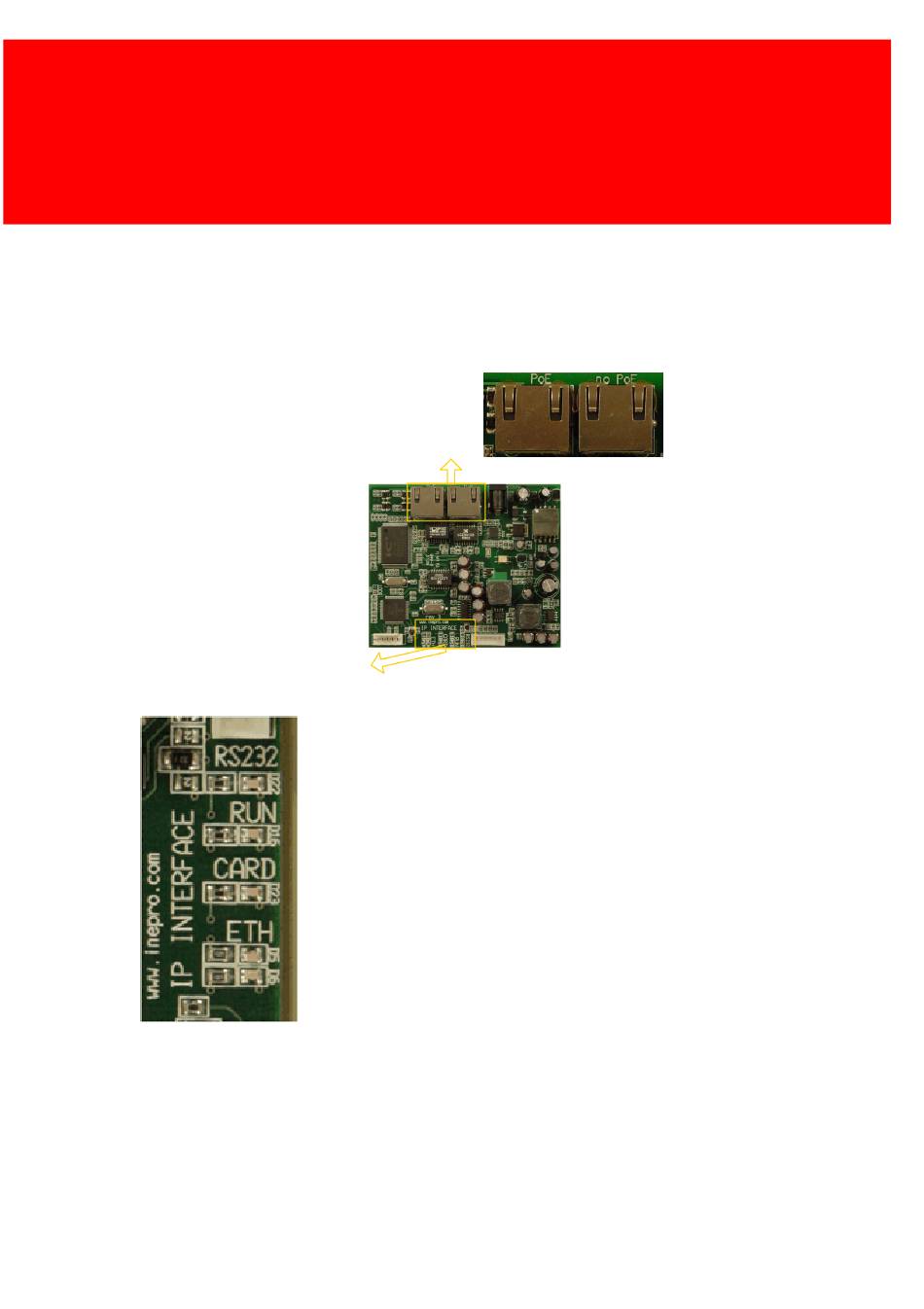

Network Connections
IP Controller Board
Ethernet Connections
IP Controller Board
IP Controller Board LED's
IP READER OVERVIEW
Power over Ethernet
Orange LED = Blinking
Green LED = On
RS232 Led on = Communication between card
-->
reader and controller board is OK.
RUN led on = Program in the micro on the IP
-->
controller board runs correctly.
CARD led on = controller board detects card
being presented to card reader.
-->
Green led on = Ethernet connection with
internal switch chip
-->
Orange led blinking = data being transferred
-->
trough Ethernet connection
No Power over
Ethernet
Orange LED = On
Green LED = Blinking
13
