We want to help you get the best result from your SCR808. This manual contains information on how to do that; please read it carefully. Due to continuous product improvements this manual is subject to changes without notice.
Page 2
SCR808 - Technical Manual | EN All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.
In this manual you find the instructions to install and configure your IP-reader. This manual is meant for all the Inepro IP-readers. This manual, the IP reader hardware and software are subject to change, make sure you have the latest version of this manual, because the older versions may have become obsolete.

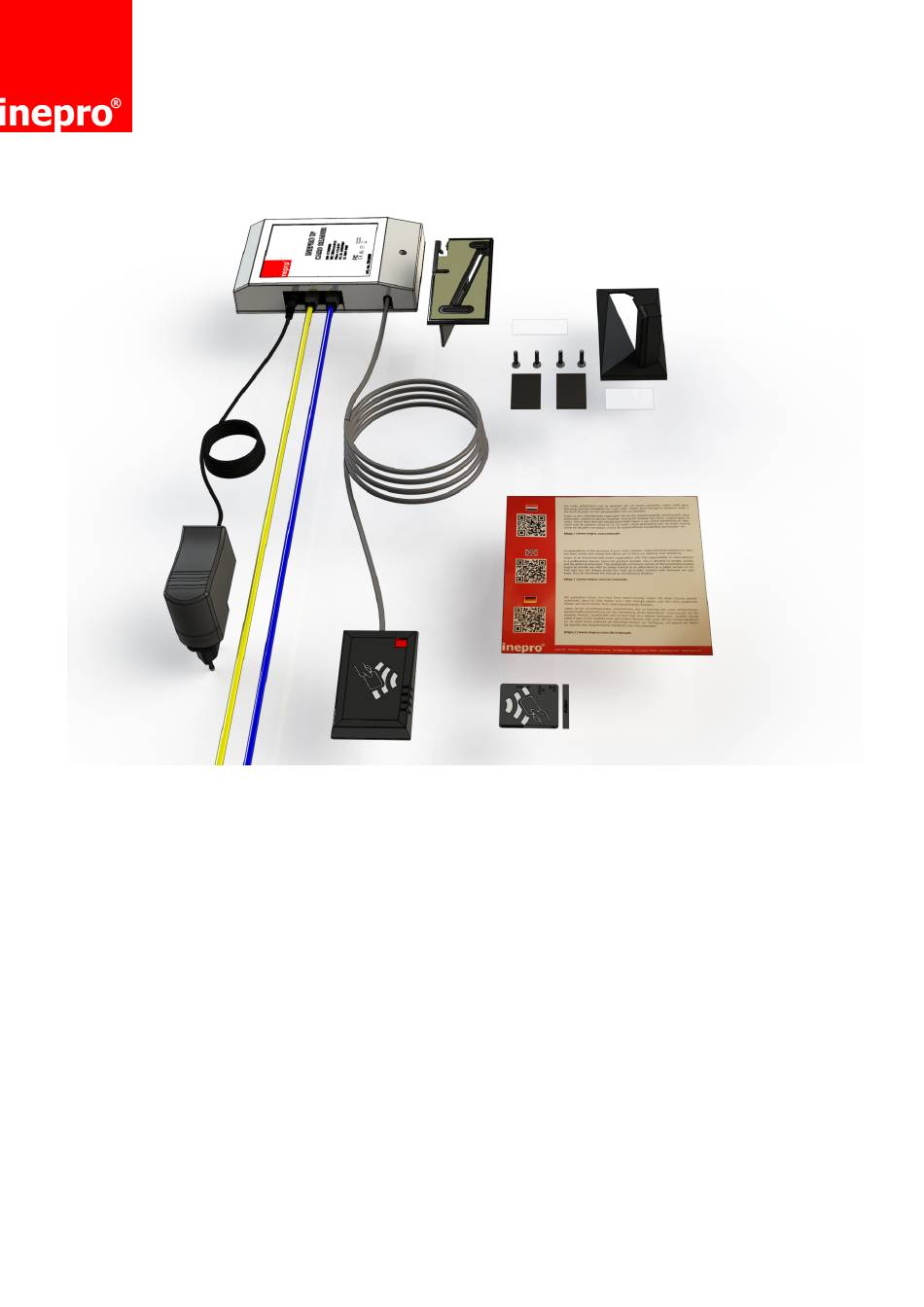

I100002 | SCR Reader LED Cover P275735 | Inepro SCR Antenna Board P120645 | Inepro SCR RFID Folie P551360 | Inepro IP / USB Serial number Sticker P500944 | Double-sided Tape SCR Reader 20x49x0,5mm P120647 | Braille Foil - Landscape P257651 | Network Cable RJ-45 - RJ-45 Grey MFP (1,0mtr.)
Page 6
Unknown | Office type tape Check Components Please check if all the components are in the set before you continue with the installation and setup. Some parts might already pre-assembled or have already been mounted. Page 6 of 15 SCR808 | EN...
For normal communication with TCP port 10039 and UDP 10039 need to be open in both directions, and communication using the UDP protocol must be possible between these two points. The workstation and the IP reader Host. Page 7 of 15 SCR808 | EN...
Communication between the server and the IP Controller Board Inepro has defined it’s own protocol for communication between the IP controller board and the server. To ensure the security of the card data an AES (Advanced Encryption Standard) encryption is applied to the data.
Page 9
Communication IP Reader encryption protocol Page 9 of 15 SCR808 | EN...
CARD led on = controller board detects card --> being presented to card reader. Green led on = Ethernet connection with --> internal switch chip --> Orange led blinking = data being transferred trough Ethernet connection Page 10 of 15 SCR808 | EN...
(0.5 sec. / 0.5 sec.) Card accepted, card data Flashing on data presented to server and Orange read accepted at the server. Card presented correctly, server Long pulse (2-4 Green received the data OK seconds) Page 11 of 15 SCR808 | EN...
Page 12
The IP controller board will receive this data string and, after encryption, redirect this data to the server. This situation can cause the CARD LED and the RS232 LED to behave differently. Page 12 of 15 SCR808 | EN...
Page 13
(or green PoE) Bad or slow modulated on the data connection transmission blink signal With the PoE connector, the status of the green LED will be that of the orange LED and vice versa. Page 13 of 15 SCR808 | EN...
Type: B4B-XH-A JST-XH serie Maximum load AC: 2A DC/AC Maximum load DC: 250V AC/DC PCB trace specifications (at a current of 2A) Trace width: 1.5mm Copper thickness: 0.035 mm Temperature increase: 9 degrees centigrade Page 14 of 15 SCR808 | EN...
Confirm IEEE 802.3 AF IP-Address DHCP client or static V4 IP address TCP port 10039 (Both Directions) Mandatory Open Ports UDP port 10039 (Both Directions) Environmental conditions Operating Requirements Suitable for indoor use only Page 15 of 15 SCR808 | EN...
