ATTACHMENTS
Table 5-1
Wire Rope Clip Torque Values
Clip Sizes
Inches mm
1/8 3.18
3/16 4.76
1/4 6.35
5/16 7.94
3/8 13.28
7/16 11.11
1/2 12.70
9/16 14.29
5/8 15.88
3/4 19.05
7/8 22.23
1 25.40
1-1/8 28.58
1-1/4 31.75
1-3/8 38.68
1-1/2 38.10
Specialty Clip
5-10
Torque
lb-ft Nm
4.5 6
7.5 10
15 20
30 40
45 60
65 90
65 90
95 130
95 130
130 175
225 300
225 300
225 300
360 490
360 490
360 490
Wedge Socket
Published 10-21-2011, Control # 055-03
5540F/YB5515 OPERATOR'S MANUAL
Specialty Wedge

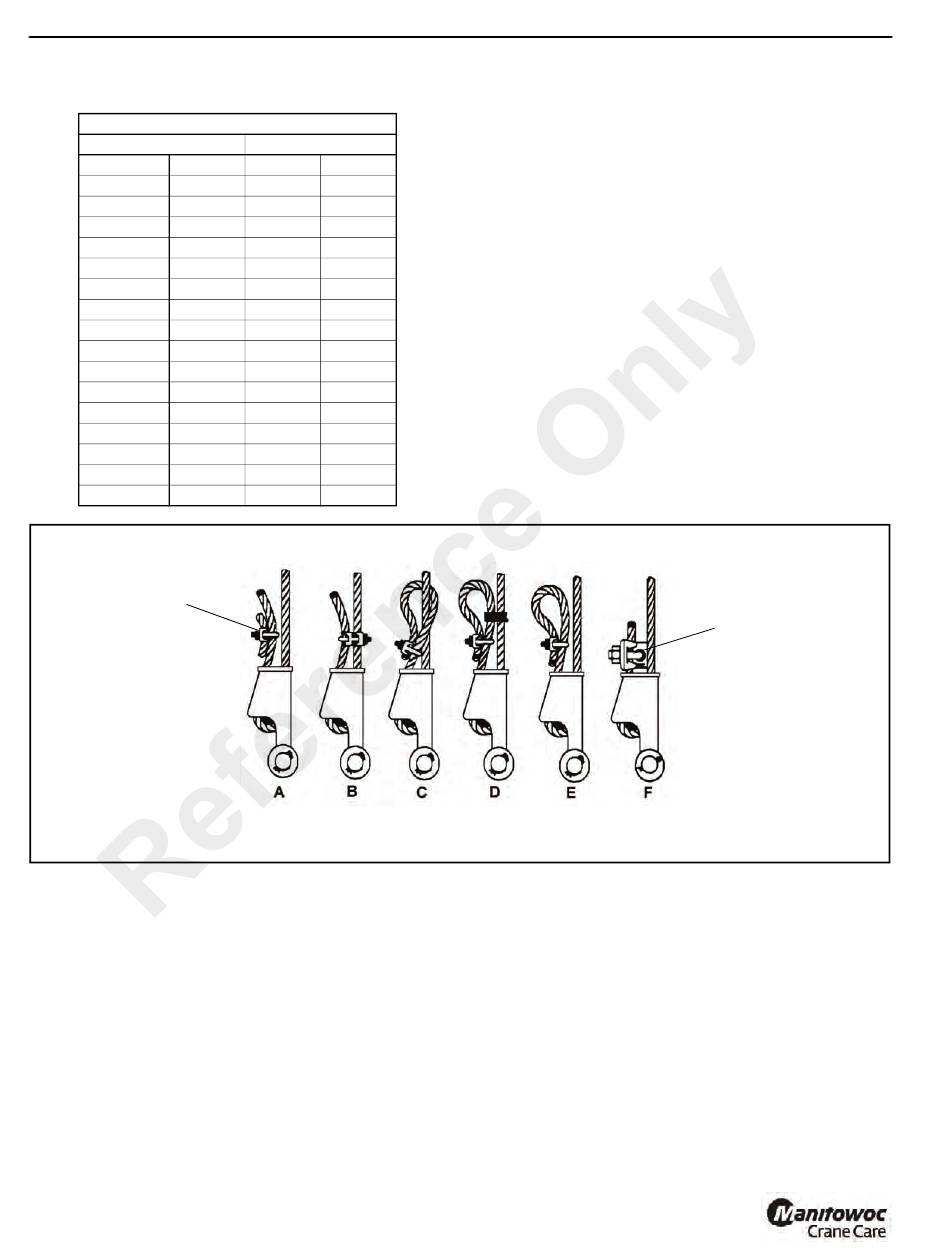

FIGURE 5-14
