inStallation

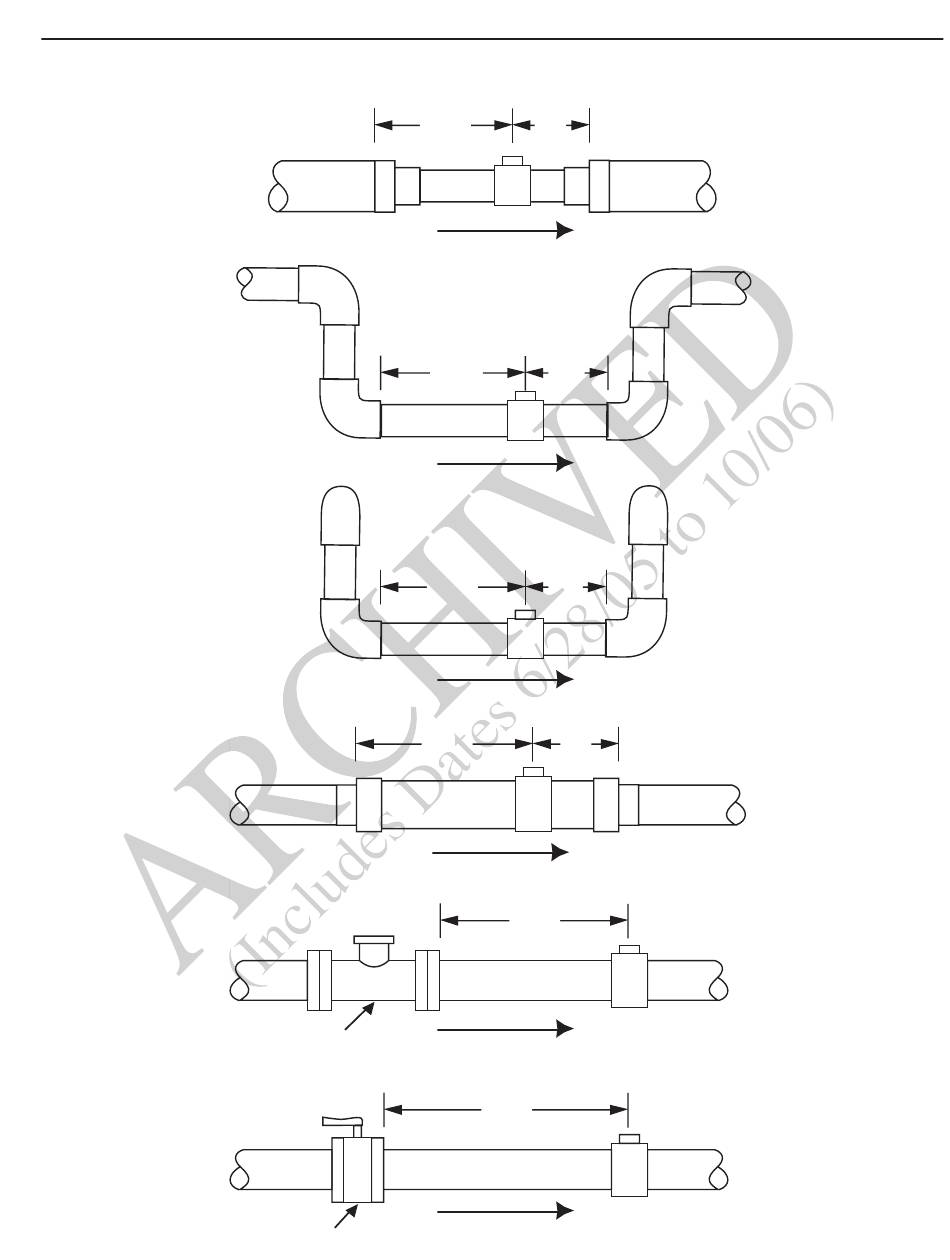

StraigHt PiPE rEcommEnDationS
(X = diameter)
reduced Pipe
two Elbows in Plane
two Elbows, out of Plane
Expanded Pipe
Spiral Flow
Swirling Flow
Partially open
butterfly Valve
Propeller meter
10X
5X
10X
5X
20X
5X
20X
5X
30X
50X
Page 3
