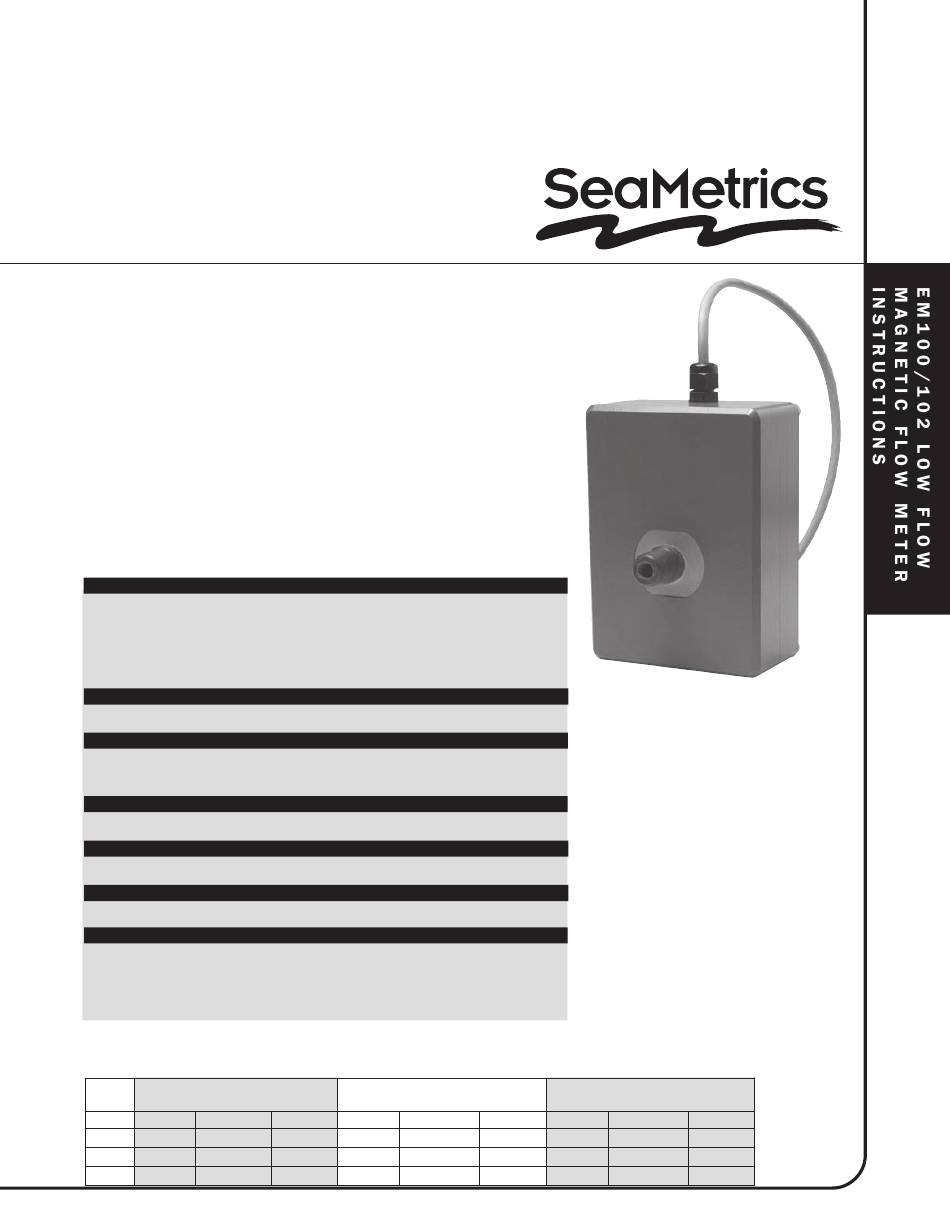

EM 100/102
LOW-FLOW MAGNETIC FLOW METER
INSTRUCTIONS
EM 100/102 - 025
EM 100/102 - 038
EM 100/102 - 050

GENERAL INFORMATION

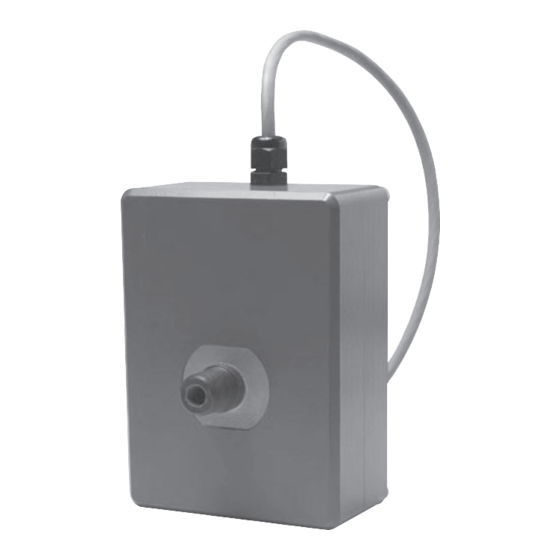

The EM100 is a 24 VDC-powered electromagnetic flow meter with
chemically-resistant plastic wetted parts, in nominal maximum flow rates of
4, 11, and 30 liters per minute. It uses bipolar DC technology at a frequency
high enough to allow for measurement of pulsating flows from diaphragm-
type chemical metering pumps. All electronics are contained in a single
compact, chemical-resistant housing. This configuration, combined with the
standard pulse and analog outputs, makes the EM100 well suited for OEM
applications. Other applications include remote monitoring of chemical
volume or rate using a computer or PLC.

SPECIFICATIONS

M AT E R I A L S
Body: Kynar™ PVDF
G
Wetted Materials -
Electrodes: Platinum over titanium
G
Internal Seals: Viton™
G
ABS
G
Housing -
P O W E R
12-24 VDC, 180 mA
G
A C C U R A C Y
+/-1% of reading, above 10% of full scale
G
+/-3% of reading, below 10% of full scale
G
M A X I M U M F L U I D T E M P E R AT U R E
185º F
G
M A X I M U M P R E S S U R E
150 PSI (@ 75º F)
G
M I N I M U M C O N D U C T I V I T Y
20 microsiemens
G
O U T P U T S
Frequency opto isolated 1000 pulse/liter (3785 p/g)
G
Optional 4-20 mA opto isolated passive
G
FLOW RANGE
SIZE NOMINAL FULL SCALE
L/MIN. GAL./MIN.
3.8 1
-025
11 3
-038
30 8
-050
MIN. FOR 1% ACCURACY
GAL./HR. L/MIN. GAL./MIN.
60 .38 0.1
180 1.1 .3
480 3.0 .8
LOW FLOW CUTOFF
GAL./HR. L/MIN. GAL./MIN.
6 .04 .009
18 0.1 .025
48 .25 .065
1-800-975-8153
GAL./HR
.54
1.5
3.9
