INSTALLATION

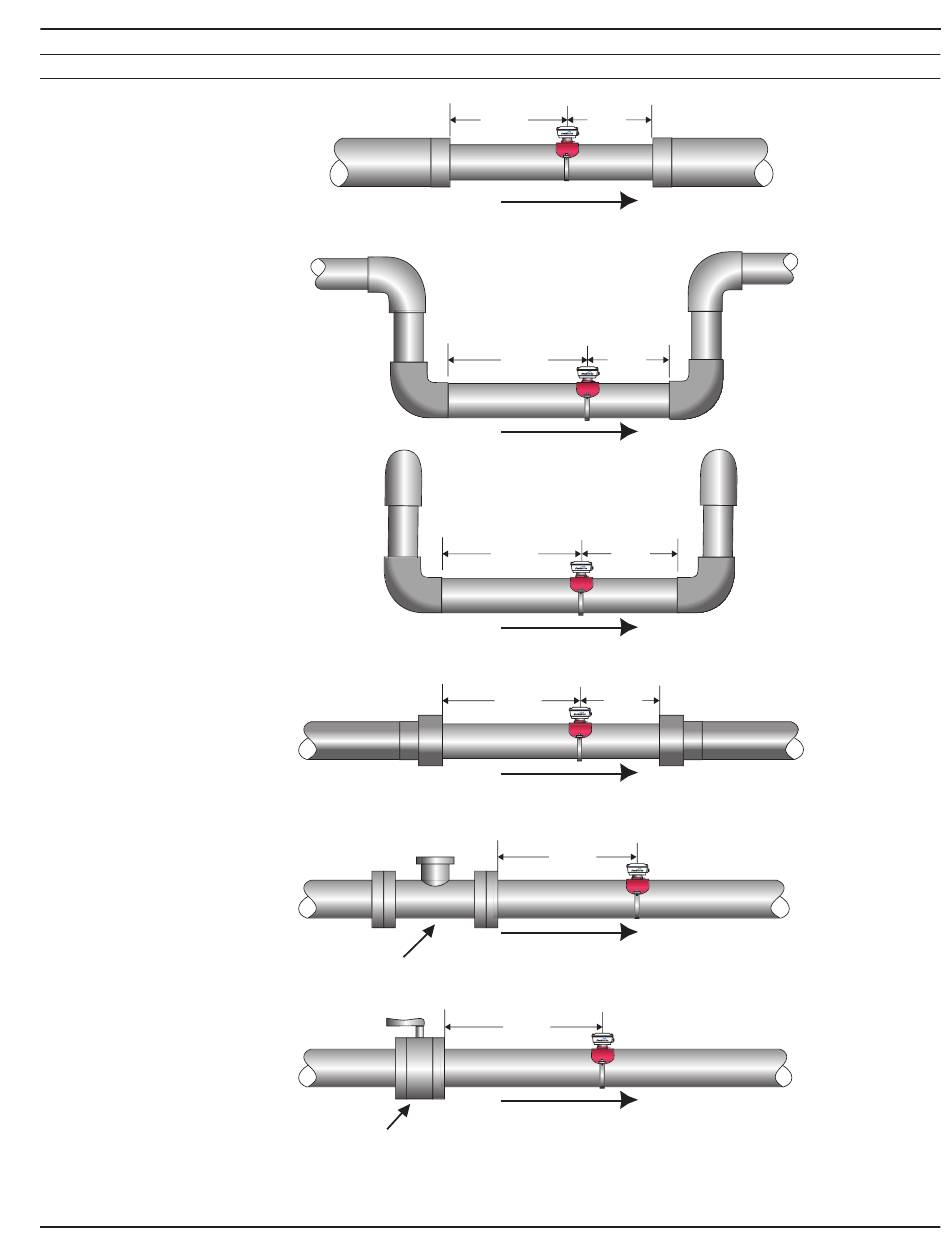

Straight Pipe Recommendations
Reduced Pipe
Two Elbows In Plane
Two Elbows, Out Of Plane
Expanded Pipe
Spiral Flow
Propeller Meter
Swirling Flow
Seametrics • 253.872.0284
(X = diameter)
Partially Open
Butterfly Valve
10X
5X
10X
5X
20X
5X
20X
5X
30X
20X
Page 9
EX100/200 SERIES INSTRUCTIONS
seametrics.com
