inStallation

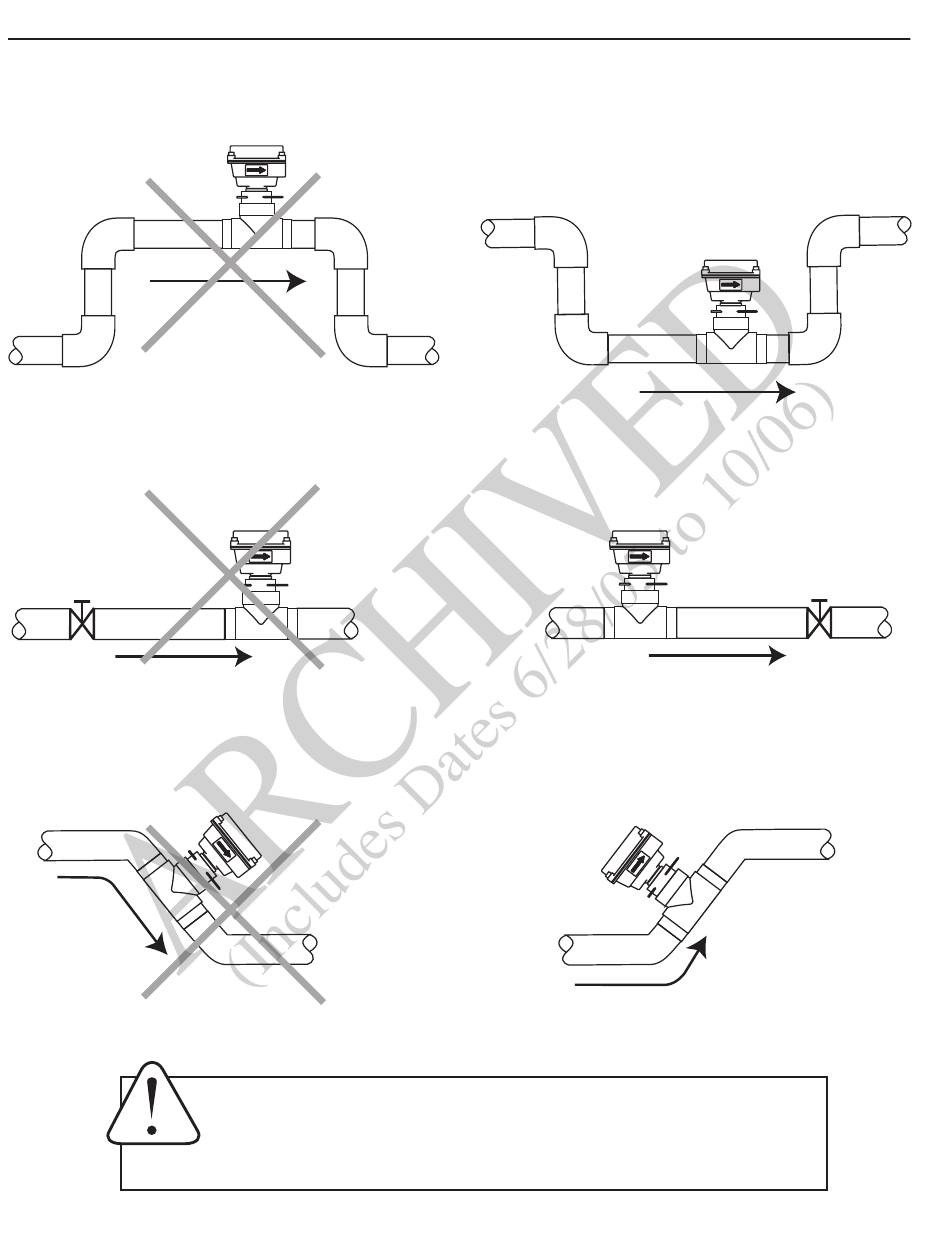

Full PiPE rEcommEnDationS
not rEcommEnDED
Allows air pockets to form at sensor
not rEcommEnDED
Post-valve cavitation can create air pocket
not rEcommEnDED
Air can be trapped
Page 4
caution: These flow sensors are not recommended for installation down-
stream of the boiler feedwater pump where installation fault may expose
the flow sensor to boiler pressure and temperature. Maximum recom-
mended temperature is 130°F (Plastic), 200°F (Metal).
rEcommEnDED
Ensures full pipe
rEcommEnDED
Keeps pipe full at sensor
rEcommEnDED
Allows air to bleed off
