INSTALLATION

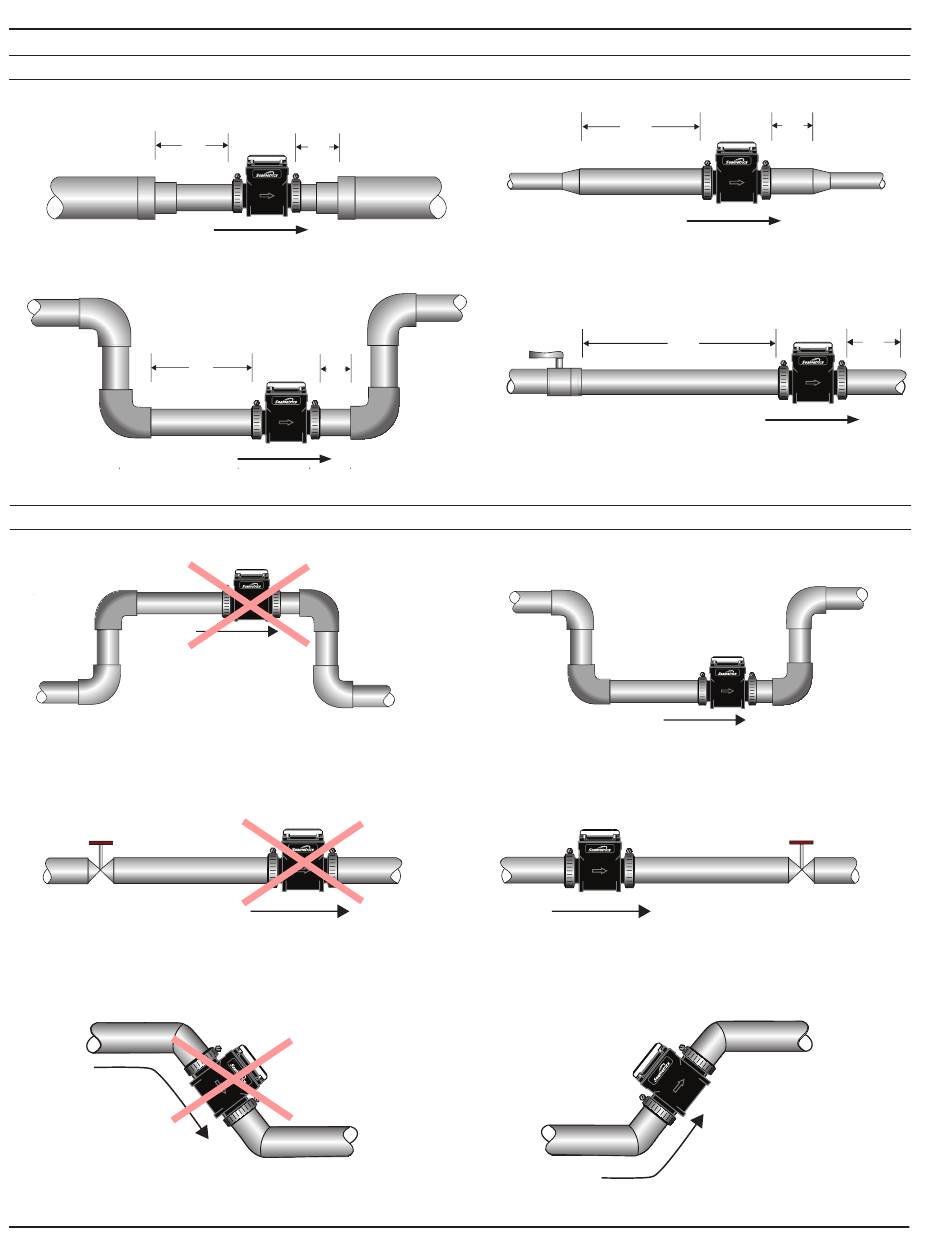

Straight Pipe Recommendations

Reduced Pipe
2X
Elbows

Full Pipe Recommendations

Possible Problem
Allows air pockets to form at sensor
Possible Problem
Post-valve cavitation can create air pocket
Possible Problem
Air can be trapped
Seametrics • 253.872.0284
(X = pipe diameter)
1X
2X 1X
Expanded Pipe
Swirling Flow: Partially Open
Butterfly Valve
Better Installation
Better Installation
Keeps pipe full at sensor
Better Installation
Allows air to bleed off
