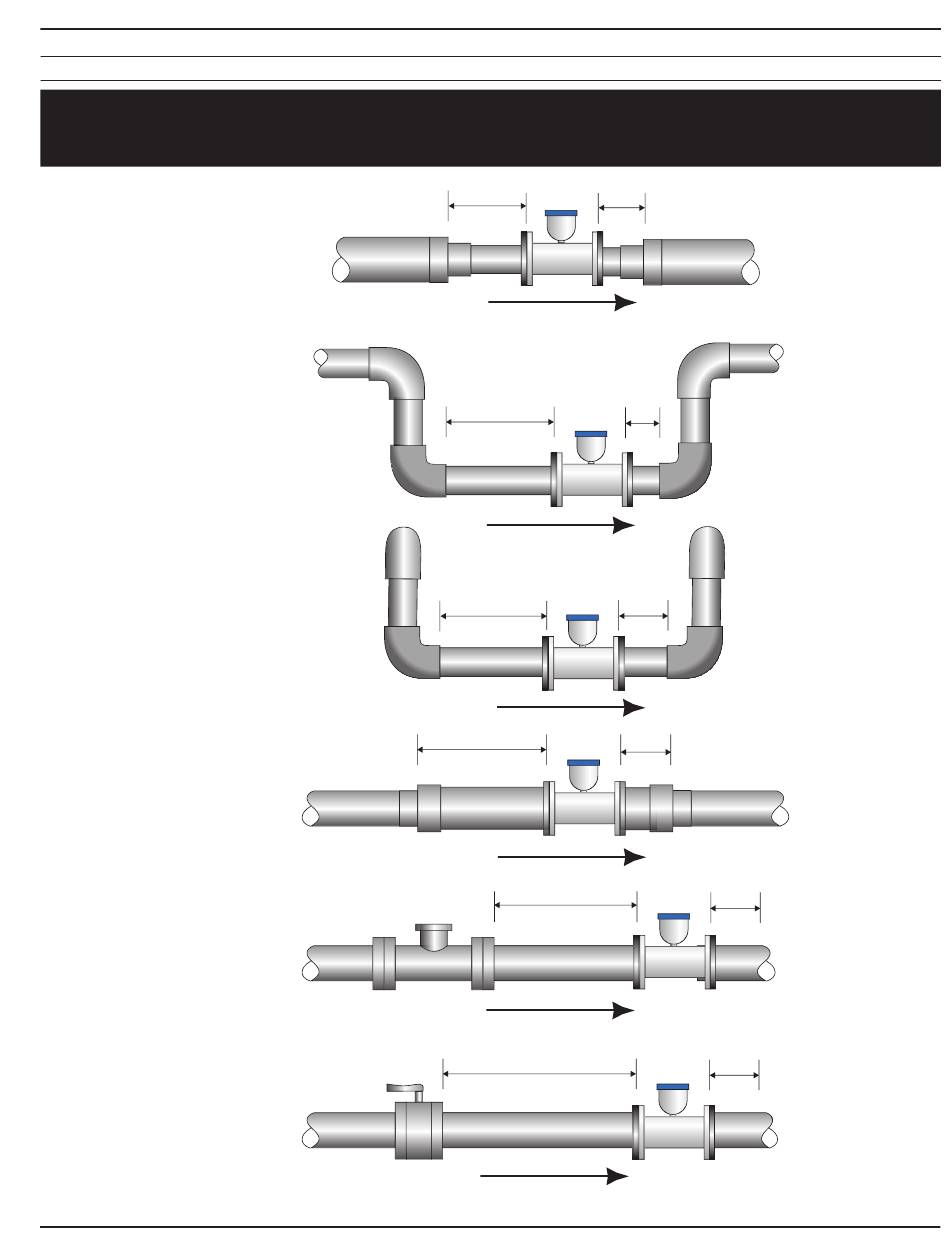

Straight Pipe Recommendations (X = diameter)
NOTE: These configurations are to be used as general guidelines and do not cover every possible installation. A
combination of two or more obstructions will require additional straight pipe. If there is any concern about the
length of pipe required for a specific application, please contact your local dealer.
2X
1X
Reduced Pipe
iMAG
2X
1X
Two Elbows In Plane
iMAG
2X 1X
Two Elbows, Out Of Plane
iMAG
5X
1X
Expanded Pipe
iMAG
5X
1X
Swirling Flow:
Propeller Meter
iMAG
5X
1X
Swirling Flow:
Partially Open
iMAG
Butterfly Valve
