Single Tone Mode

Open the Single Tone Mode folder to access the single tone mode of operation example setup files. This section discusses the
All Channels on @ 10_20_30_40MHz_RURD enabled.stp file.

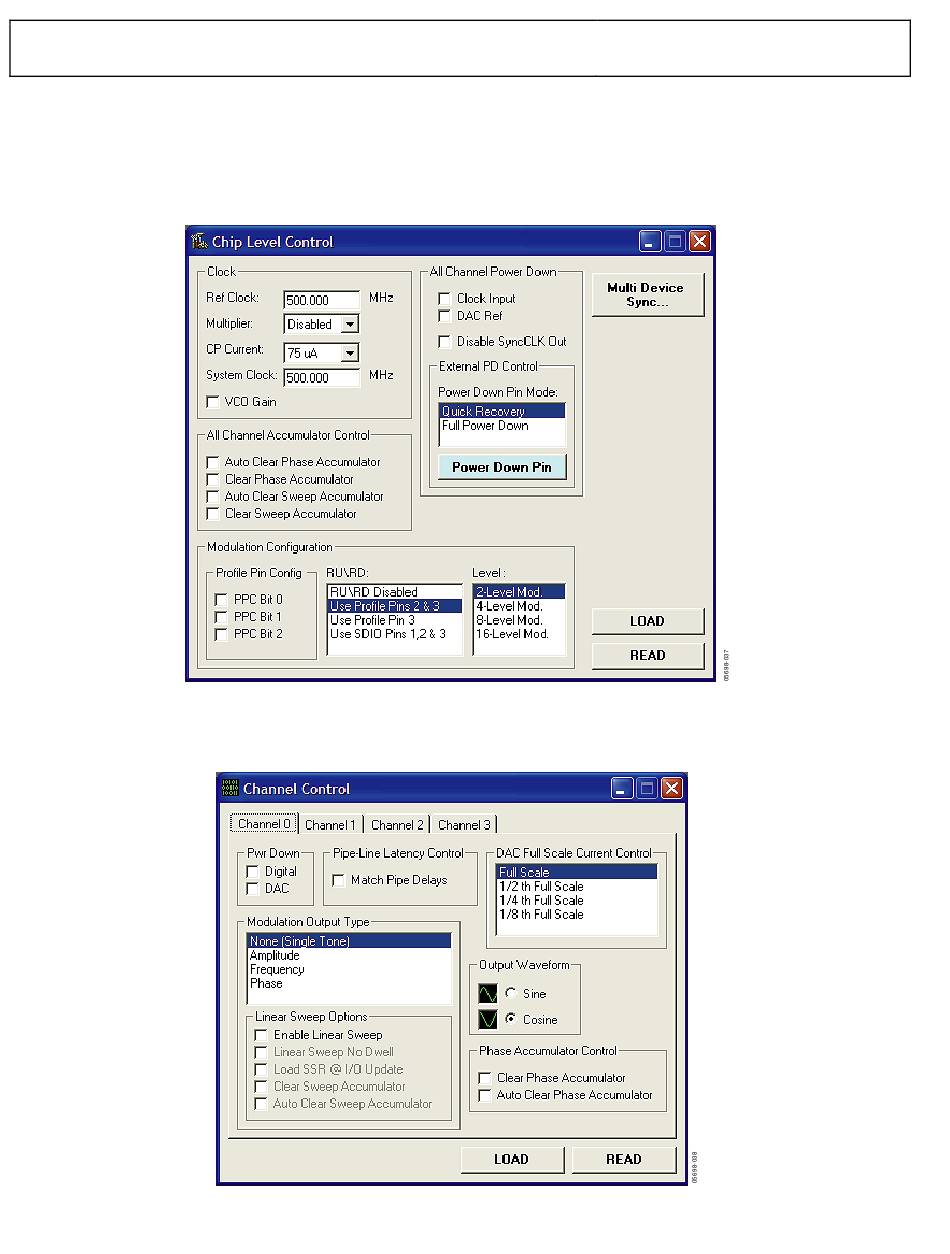

The Chip Level Control window (Figure 37) from this particular setup shows that a 500 MHz System Clock is running, with the RU/RD
operation enabled. In the RU/RD box, Use Profile Pins 2 & 3 has been selected to control the RU/RD feature.
In the Channel Control window (Figure 38), each channel has None (Single Tone) selected for their modulation output as shown in the
Modulation Output Type box.
Figure 37.
Figure 38.
