SETUP FILES

Introduction

The AD9959 can be configured to perform many operations in various combinations. Preconfigured setup files have been included with the
AD9959 evaluation software that show the device in all three modes of operation: single tone, modulation, and linear sweep. These
example setup files serve as a reference and/or starting point when trying to configure the device for a desired setup for the first time.

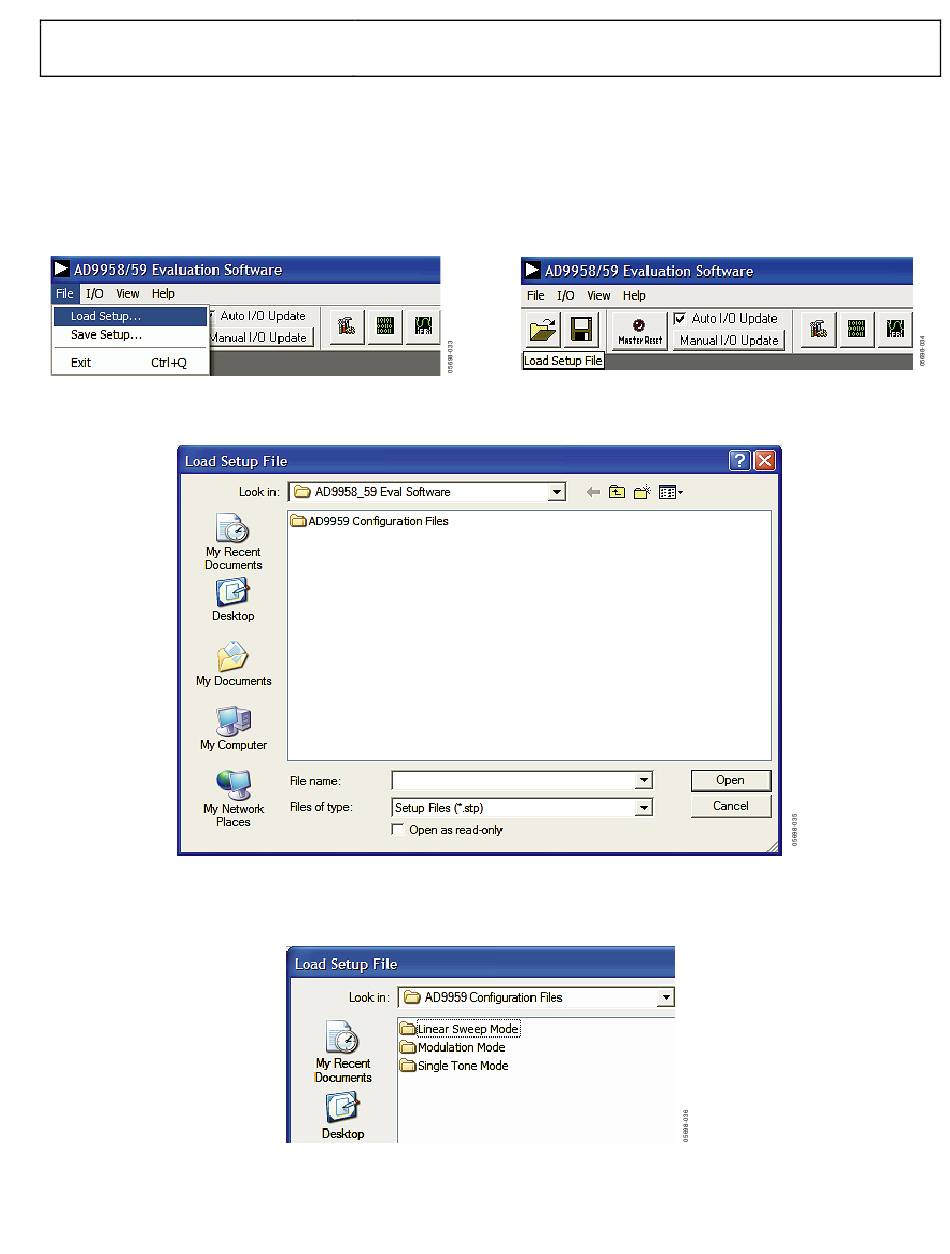

To load these setup files click File, and select Load Setup... (Figure 33), or click the open folder (Figure 34) to access these files.
Figure 33.
Next, open the AD9959 Configuration Files folder (Figure 35).
Then select which mode of operation setup file(s) you would like to view (see Figure 36).
Select Linear Sweep Mode, Modulation Mode, or Single Tone Mode.
Figure 35.
Figure 36.
