Jumper Settings
You have to change the jumper settings on the system board when
you upgrade the CPU or reconfigure the system.
Follow these steps to change a jumper setting:
1.
Remove the jumper cap from the jumper.
2.
Position the jumper cap over the two pins for the desired setting.
3.
Gently press the cap over the pins.

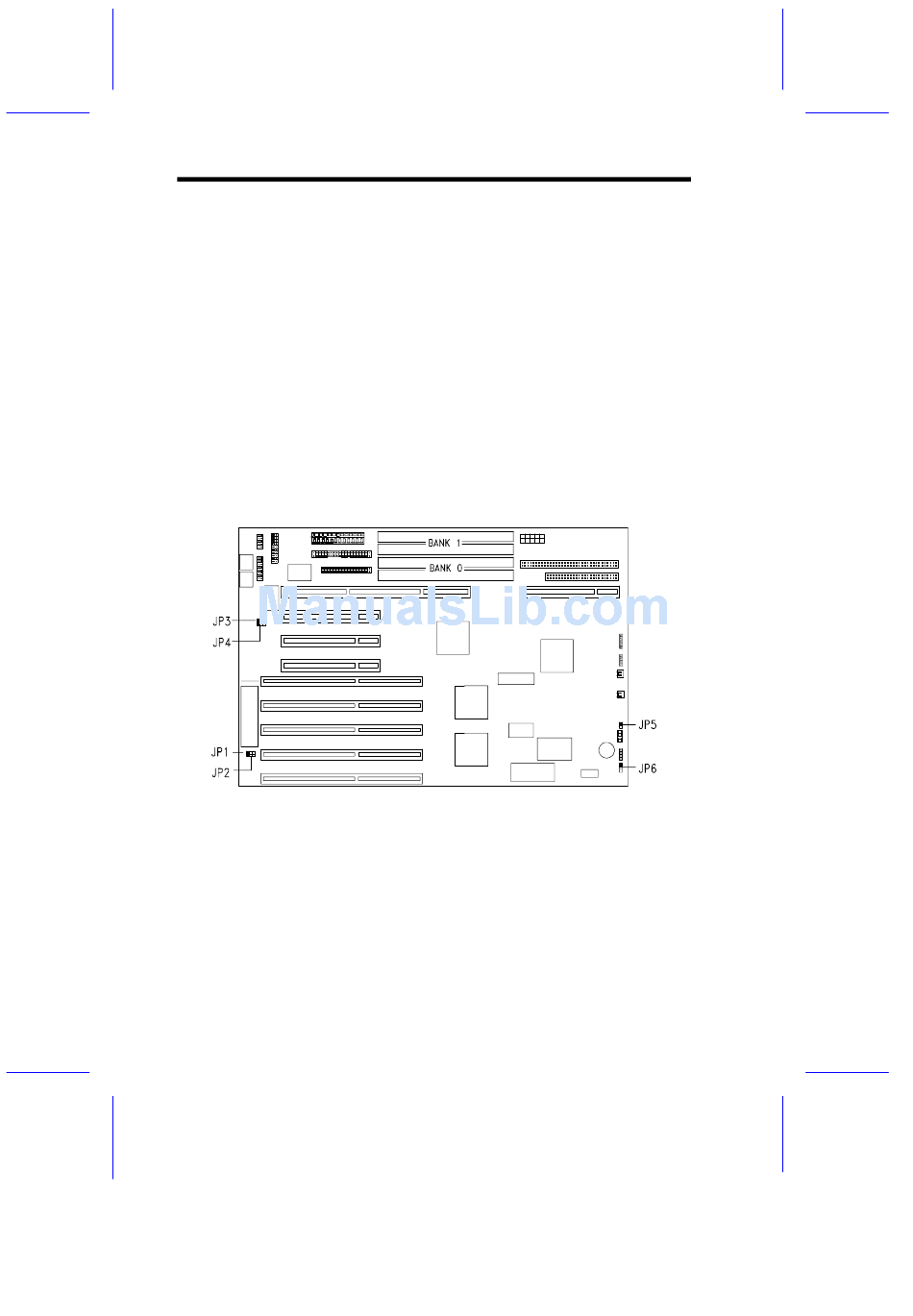

Figure 1-5 shows the jumper locations on the system board.
Figure 1-5
System Board Jumper Locations
1-12
User's Guide
