SCSI Feature

The system board features a single-chip SCSI host adapter that adds
SCSI I/O capability to the system. The chipset consists of an onboard
microcontroller, bus master interface controller, and SCSI controllers.
A 50-pin Fast SCSI-2 interface with 10 MB/s transfer rate and a 68-
pin Wide SCSI interface that transfers at 20 MB/s also come with the
board to accommodate the SCSI devices.
Before connecting any SCSI device to the 68-pin interface, connect a
Wide SCSI daughter board that has a compact 68-pin SCSI

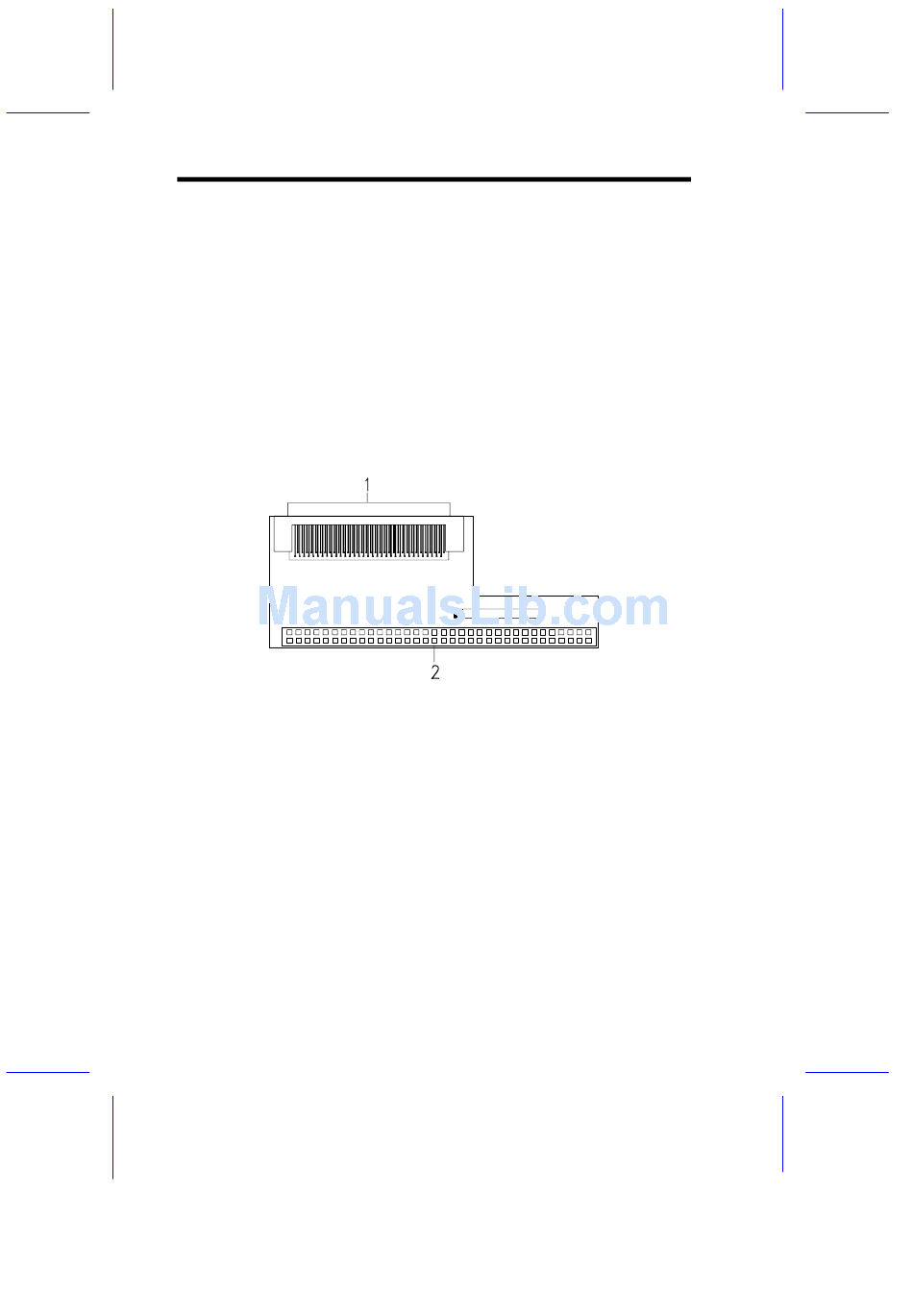

connector. Figure 1-3 illustrates the daughter board.
1.
68-pin compact SCSI connector
2.
68-pin Wide SCSI connector (female)
Figure 1-3
Wide SCSI Daughter Board
