1.4.1
Installing a Wide SCSI Daughter Board

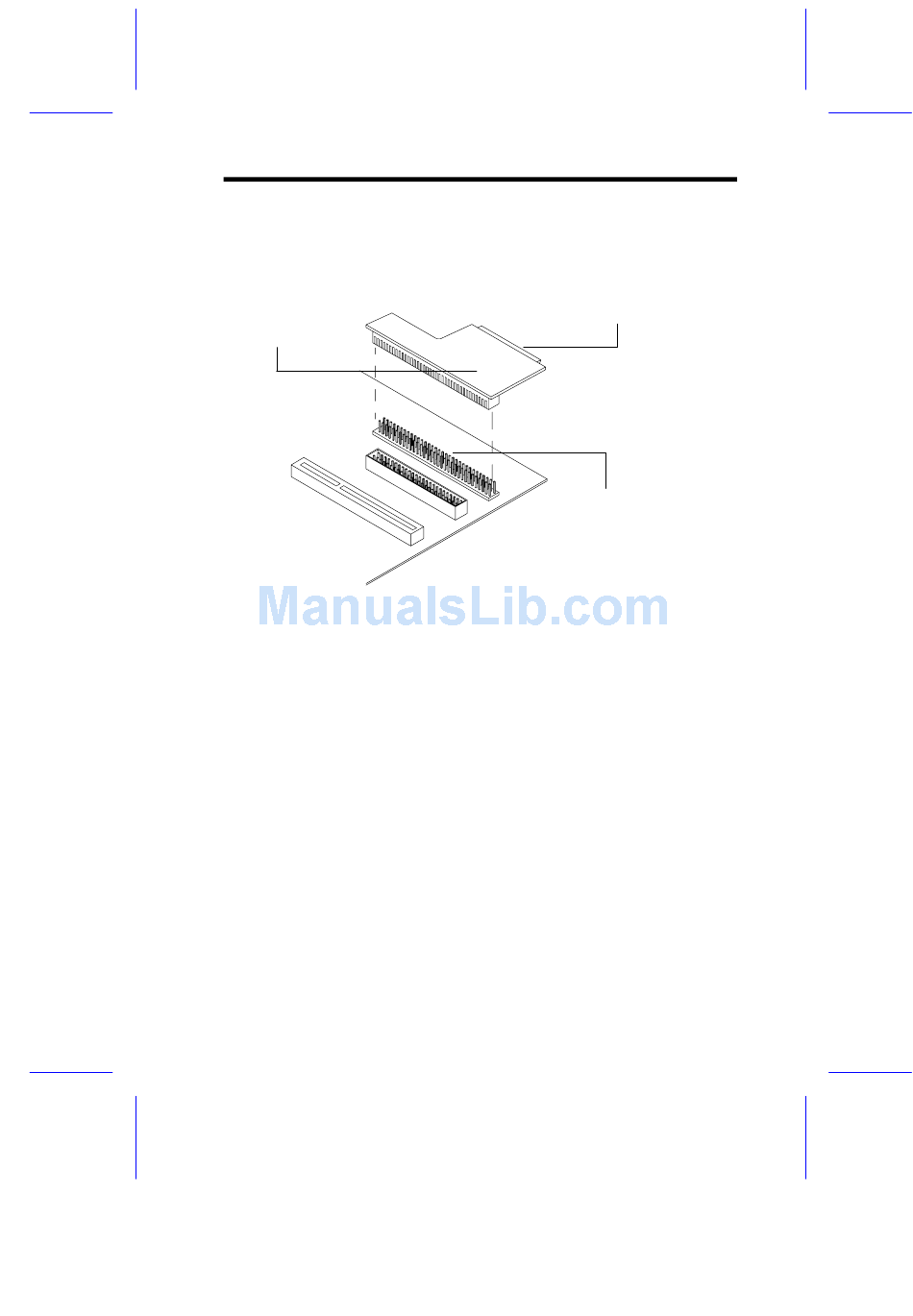

Figure 1-4 shows how to install the Wide SCSI daughter board.
Wide SCSI
daughter board
Figure 1-4
Installing a Wide SCSI Daughter Board
1.4.2
Using the SCSI Feature
Follow these steps to use the SCSI feature:
1.
Install a SCSI device in the system and connect it to the SCSI
interface on the system board (see Figure 1-1 for the location).
2.
Enter the BIOS utility to set the PCI slot parameters.
Chapter 3 for details in setting the parameters.
3.
Refer to the SCSI manual for more information on using SCSI.
System Board
68-pin compact
SCSI connector
68-pin Wide SCSI
connector (male)
See
1-11
