Cabling
Use a C100FF-x 100-pin cable to connect signals to the PCI-DAS6402/16 board. This cable consists of two
50-pin ribbon cables that are joined together at a 100-pin high density header connector (
50
1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Table 2-4. Auxiliary/digital connector pin out
Signal Name
Pin
NC
40
•
•
•
NC
38
•
•
FIRSTPORTA Bit 0
36
•
FIRSTPORTA Bit 1
34
•
•
FIRSTPORTA Bit 2
32
•
•
FIRSTPORTA Bit 3
30
•
•
•
FIRSTPORTA Bit 4
28
•
•
FIRSTPORTA Bit 5
26
•
FIRSTPORTA Bit 6
24
•
•
FIRSTPORTA Bit 7
22
•
•
FIRSTPORTC Bit 0
20
•
•
•
FIRSTPORTC Bit 1
18
•
•
FIRSTPORTC Bit 2
16
•
FIRSTPORTC Bit 3
14
•
•
FIRSTPORTC Bit 4
12
•
•
FIRSTPORTC Bit 5
10
•
•
•
FIRSTPORTC Bit 6
8
•
•
FIRSTPORTC Bit 7
6
•
DGND
4
•
•
PC +5V
2
•
•
↓
Bottom of board
Cable is labeled
"Pins 1-50"
100
51
Cable is labeled
"Pins 51-100"

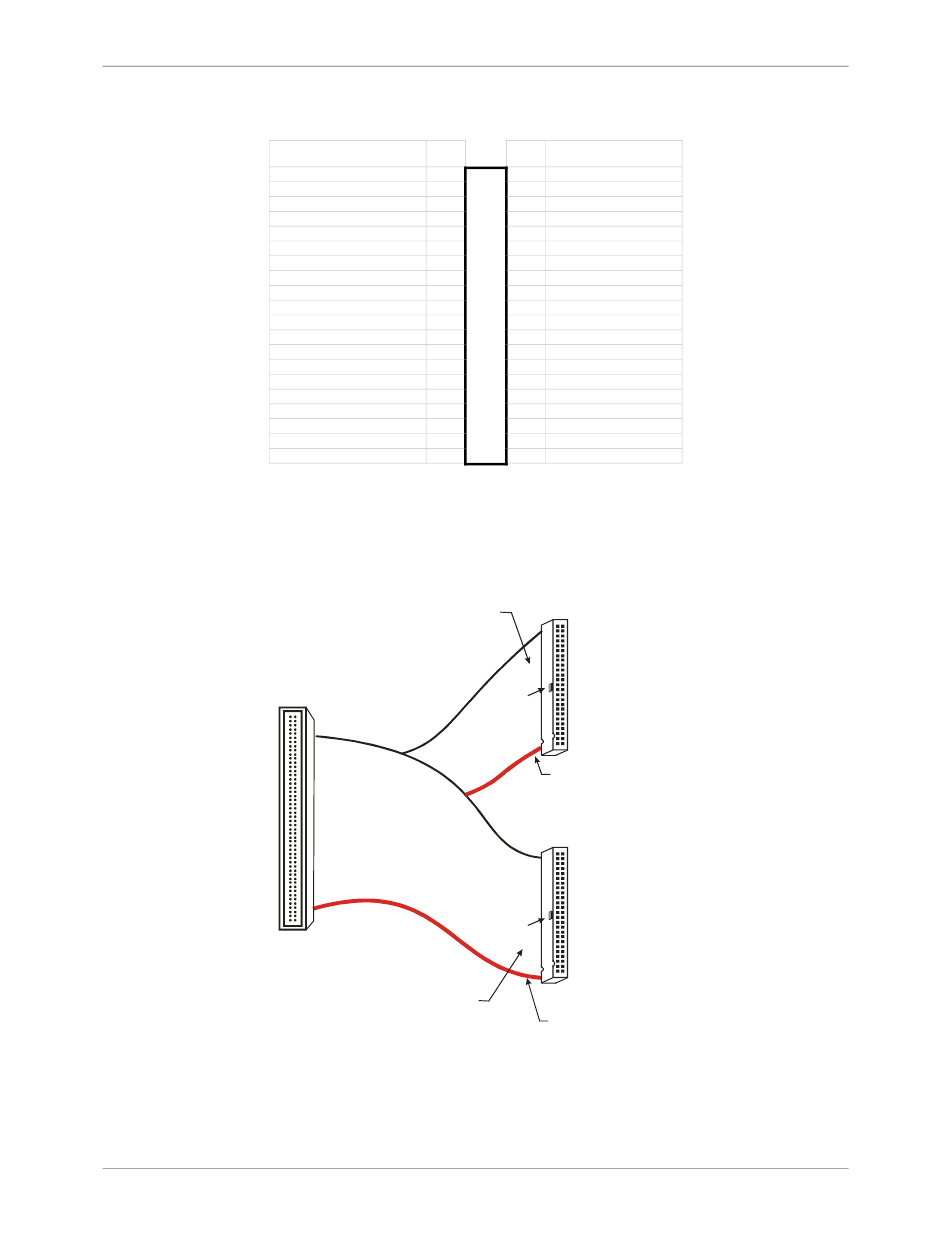

Figure 2-1. C100FF-x cable
2-6
Installing the PCI-DAS6402/16
Pin
Signal Name
•
•
39
NC
•
•
37
DGND
•
•
35
PC +5V
•
•
33
DGND
•
•
31
NC
•
•
29
DGND
•
•
27
NC
•
•
25
DGND
•
•
23
NC
•
•
21
DGND
•
•
19
FIRSTPORTB Bit 0
•
•
17
FIRSTPORTB Bit 1
•
•
15
FIRSTPORTB Bit 2
•
•
13
FIRSTPORTB Bit 3
•
•
11
FIRSTPORTB Bit 4
•
•
9
FIRSTPORTB Bit 5
•
•
7
FIRSTPORTB Bit 6
•
•
5
FIRSTPORTB Bit 7
•
3
NC
•
•
•
1
NC
49
50
Field Wiring connections:
CIO-MINI50
CIO-MINI50/DST
CIO-TERM100
CIO-TERM100/DST
Key
CIO-SPADE50
SCB-50
2
1
The red stripe
identifies pin # 1
99
100
Field Wiring connections:
CIO-MINI50
CIO-MINI50/DST
CIO-TERM100
Key
CIO-TERM100/DST
CIO-SPADE50
SCB-50
51
52
The red stripe
identifies pin # 51
Figure 2-1
.)
